Disassembly And Assembly: Notes

WARNING: This page is about a different variant/trim than selected.

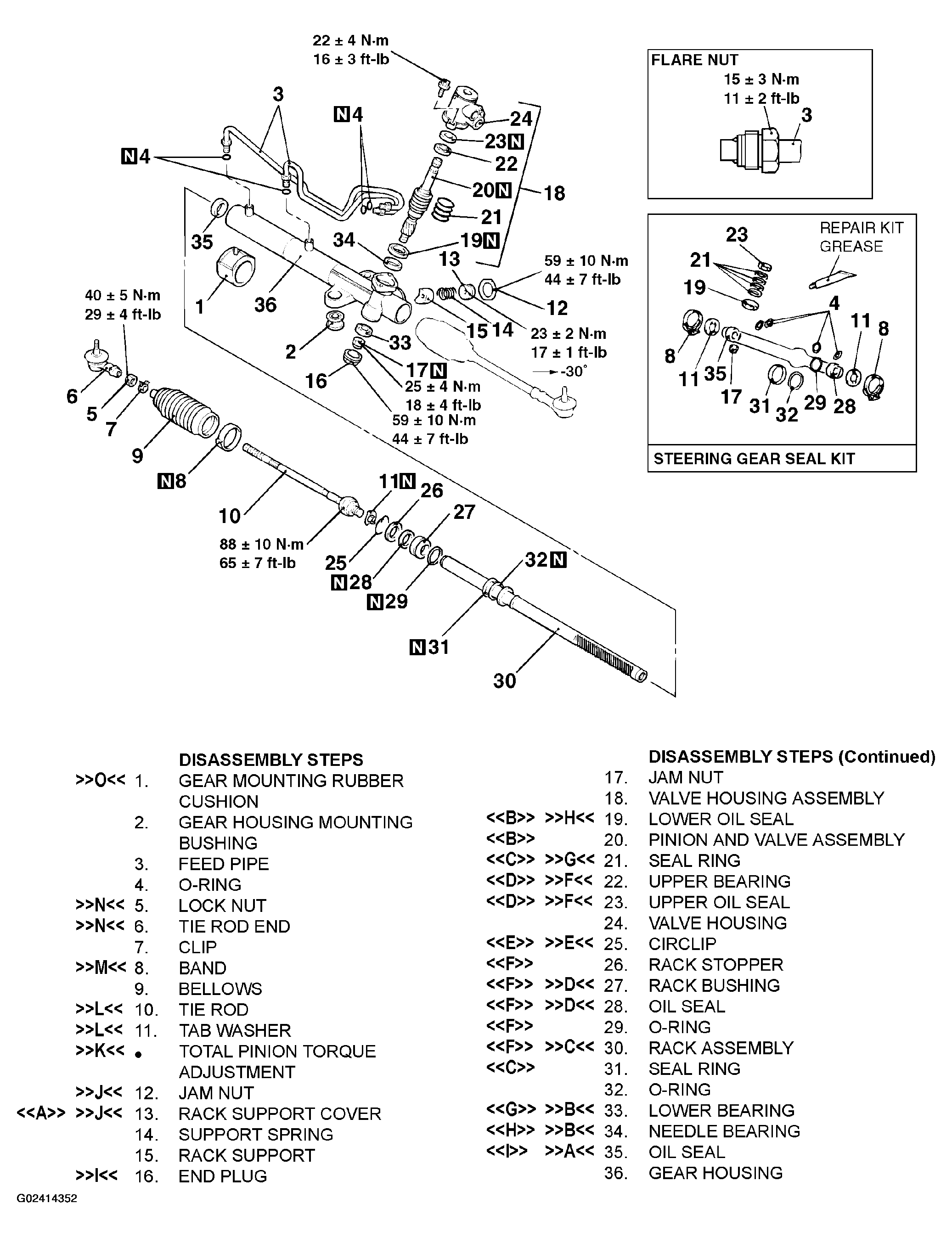

Fig 1: Exploded View Of Power Steering Gear Box And Linkage Components

G02414352

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tools:

MB990776: Front Axle Base
MB990927: Installer Adapter
MB990938: Bar (Snap-in type)
MB990939: Brass Bar
MB990941: Torque Tube Bearing Installer
MB991006: Preload Socket
MB991120: Needle Bearing Puller
MB991152: Dust Cover Installer
MB991197: Bar (Long type)
MB991199: Oil Seal Installer
MB991202: Oil Seal and Bearing Installer
MB991203: Oil Seal and Bearing Installer
MB991204: Torque Wrench Socket
MB991212: Rack Installer
MB991317: Seal Ring Installer
MB991561: Boot Band Crimping Tool
MB991621: Piston Driver
