Disassembly And Assembly: Notes

WARNING: This page is about a different variant/trim than selected.
CAUTION: Never disassemble the terminal assembly. It cannot be reassembled.

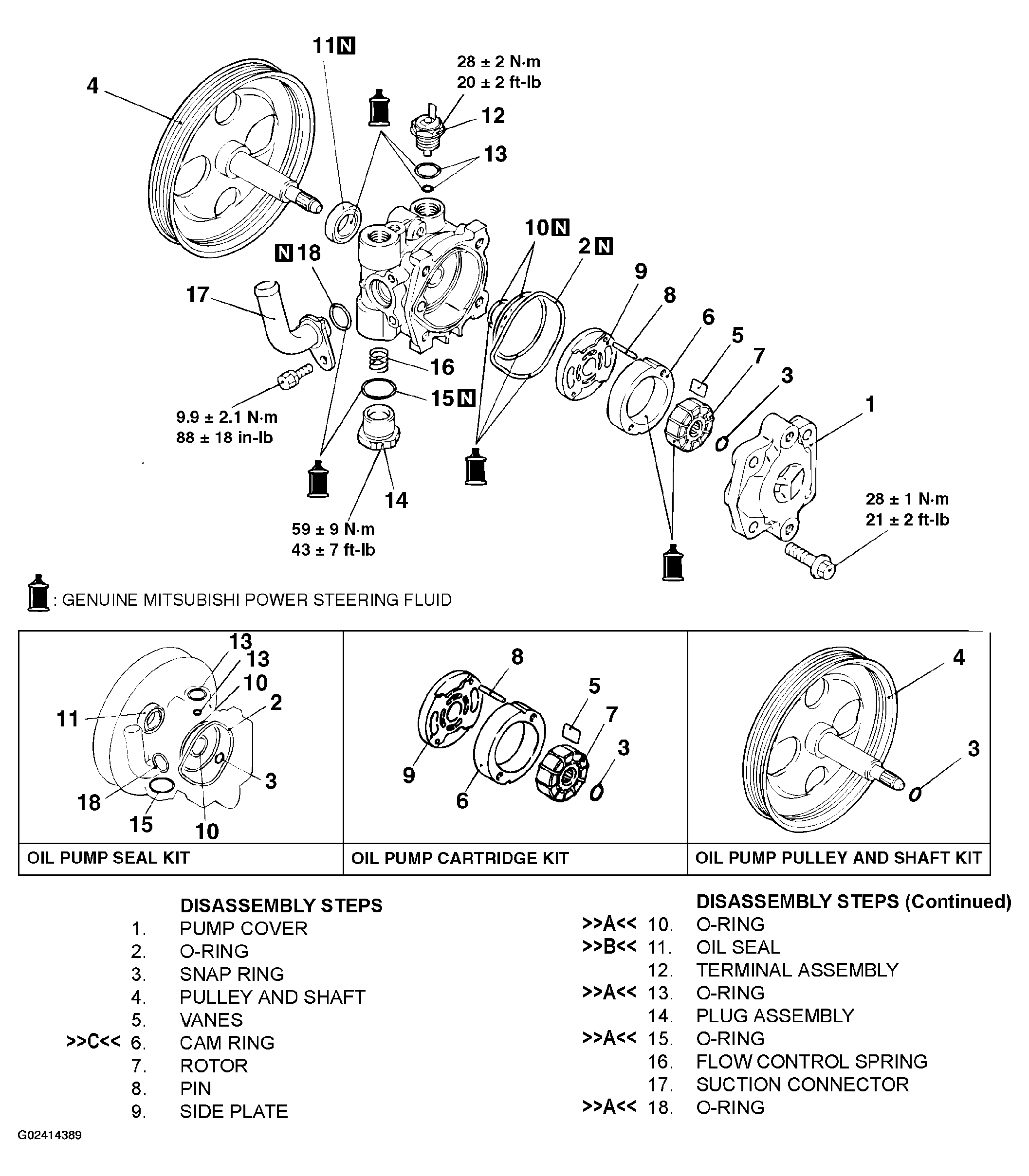

Fig 1: Assembling Power Steering Oil Pump Assembly - 2.0L Engine
G02414389Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tools:

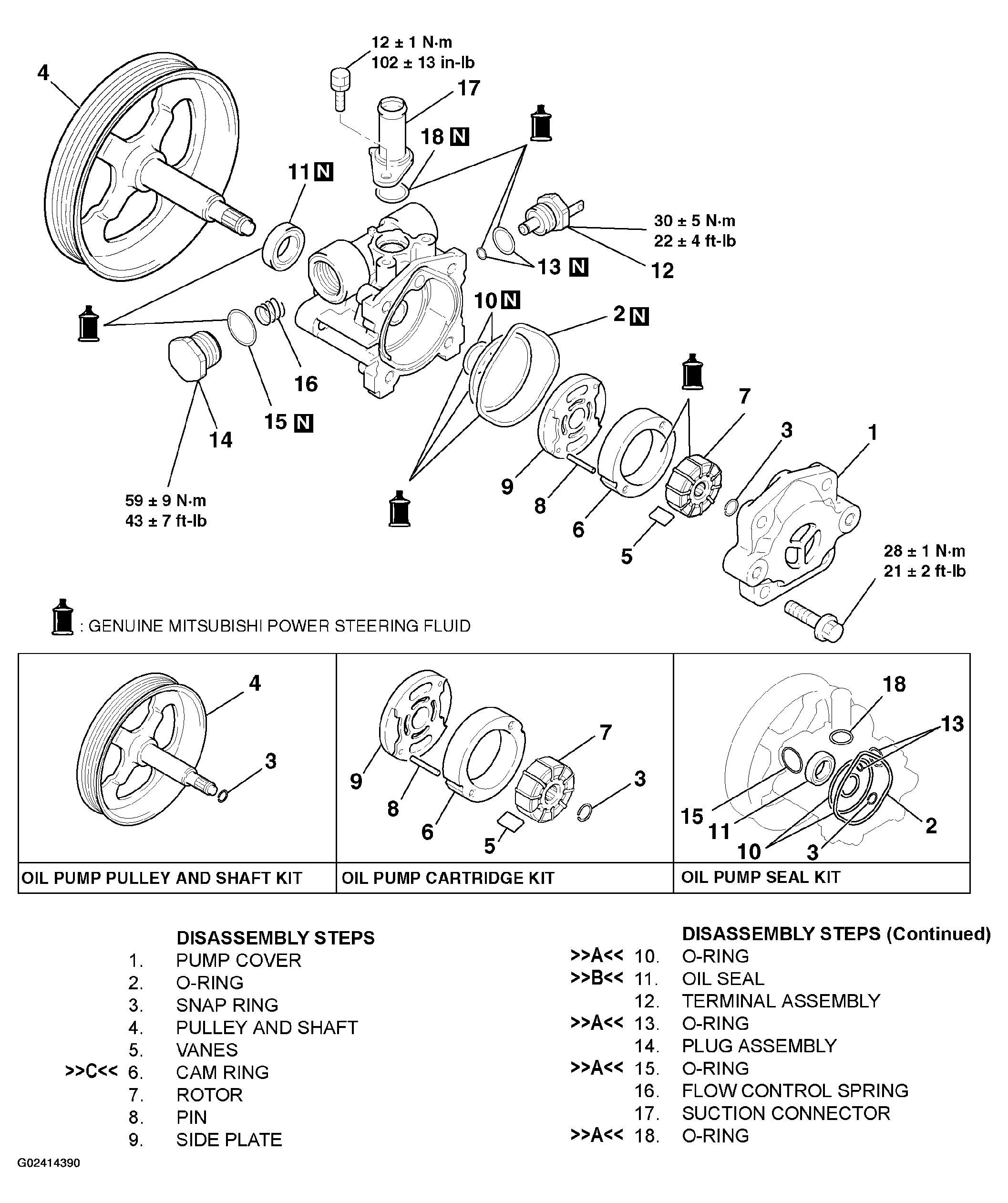

Fig 2: Assembling Power Steering Oil Pump Assembly - 2.4L Engine
G02414390Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tools:
