Section 24 (Basic Brake System -- Except Evolution)
›
Front Disc Brake Assembly
›
Disassembly And Assembly <2.4 L>
›
Lubrication Points
Lubrication Points
WARNING:
This page is about a different variant/trim than selected.

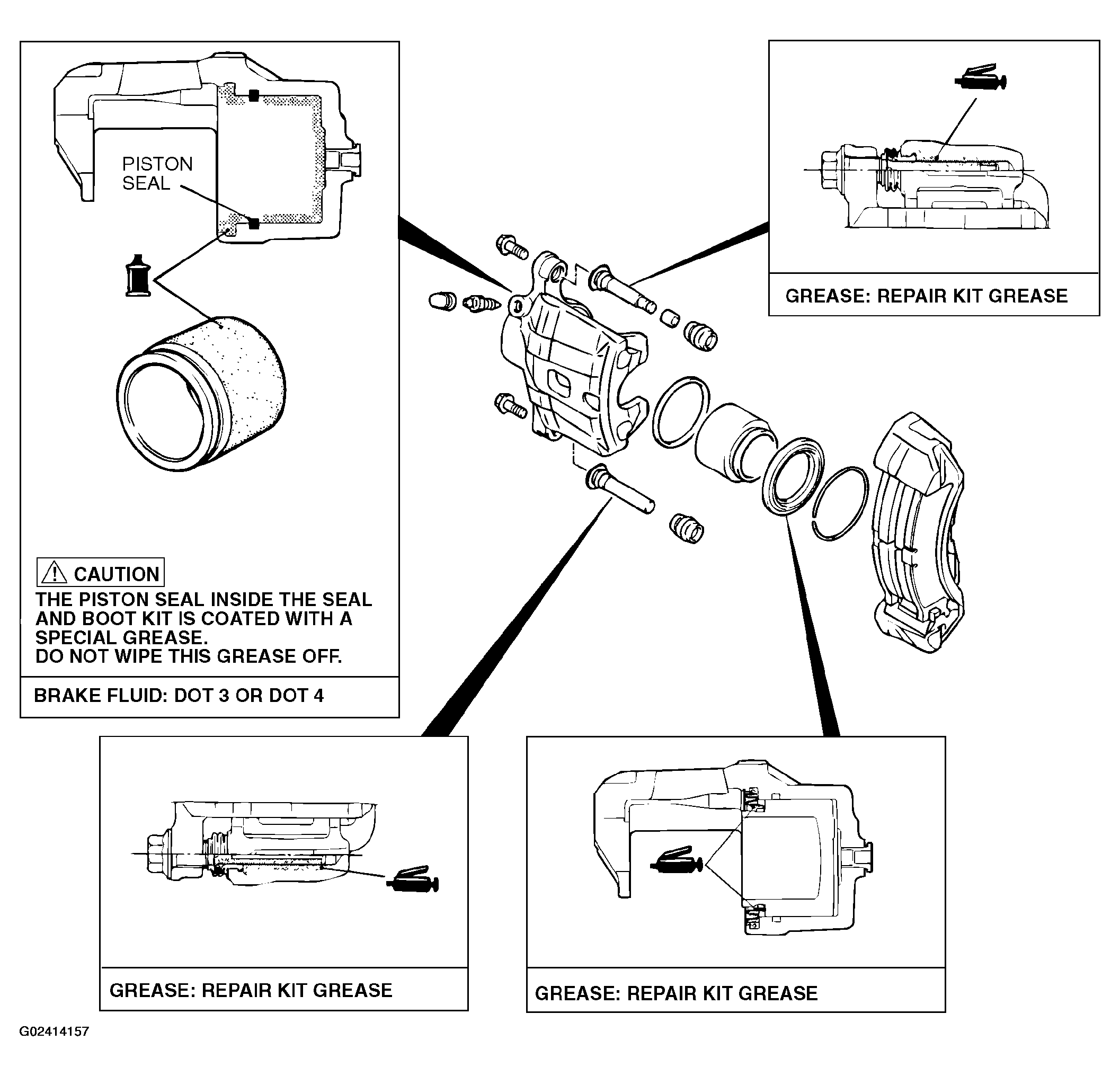

Fig 1: Identifying Lubrication Points Of Disc Brake Assembly (2.4L)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
