Disc Brake Rotor Check

WARNING: This page is about a different variant/trim than selected.
CAUTION: Disc brakes must be kept within the allowable service values in order to maintain normal brake operation.

Before turning the brake disc, the following conditions should be checked.

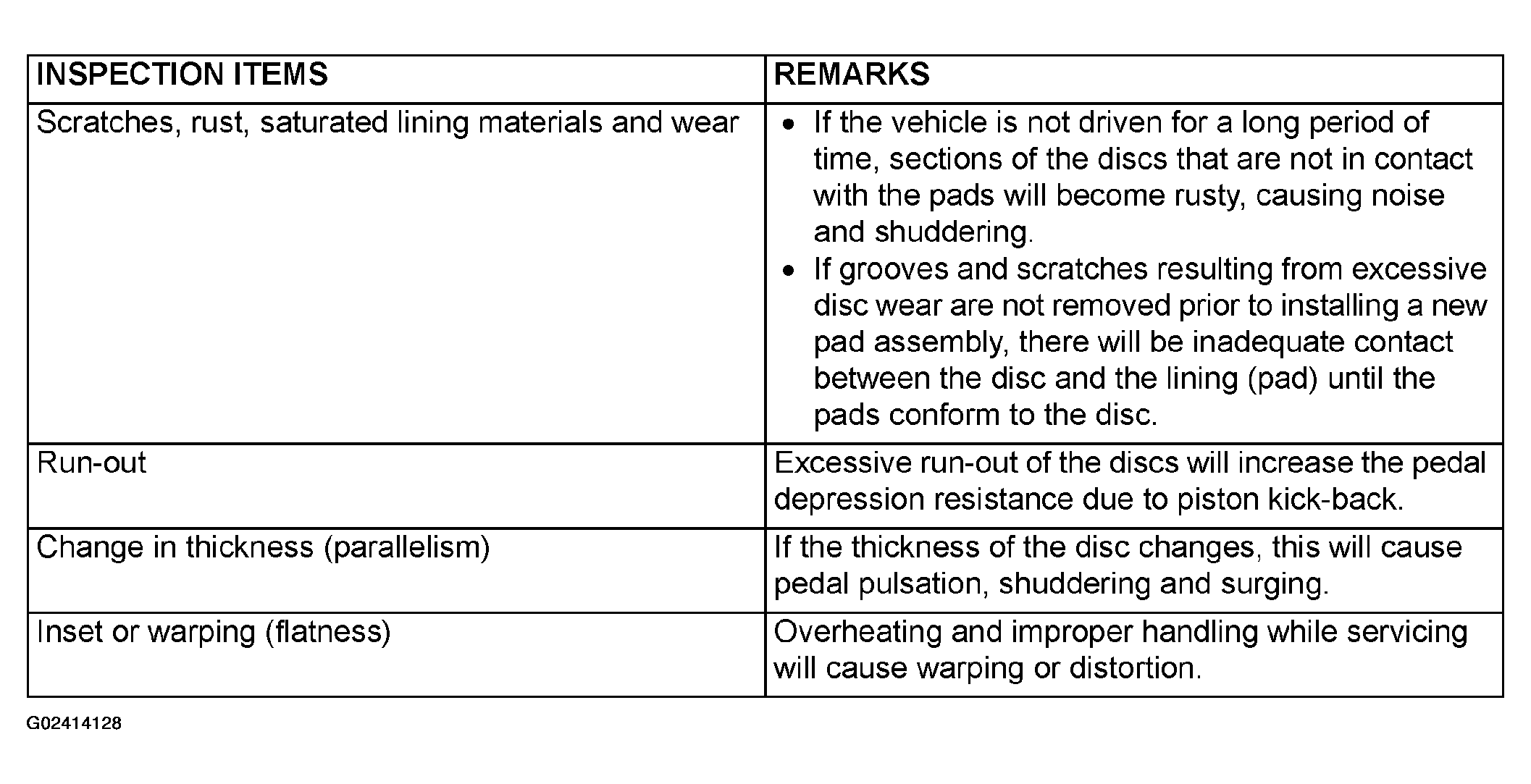

Fig 1: Inspection Chart
G02414128Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
