Section 24 (Basic Brake System -- Except Evolution)
›
Rear Disc Brake Assembly
›
Disassembly And Assembly
›
Lubrication Points
Lubrication Points
WARNING:
This page is about a different variant/trim than selected.

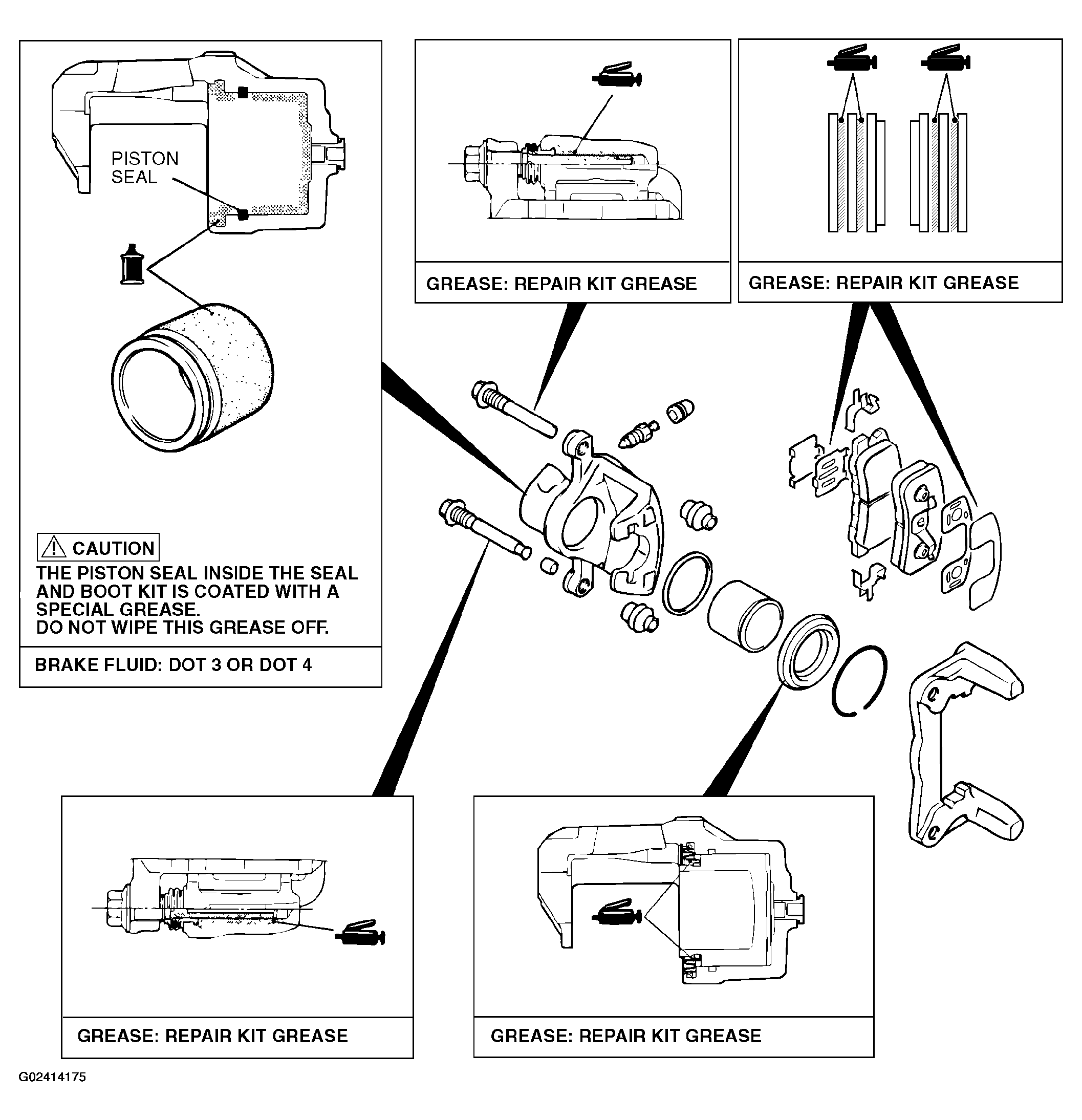

Fig 1: Identifying Lubrication Points Of Rear Disc Brake Assembly
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
