Disassembly And Assembly: Notes

WARNING: This page is about a different variant/trim than selected.

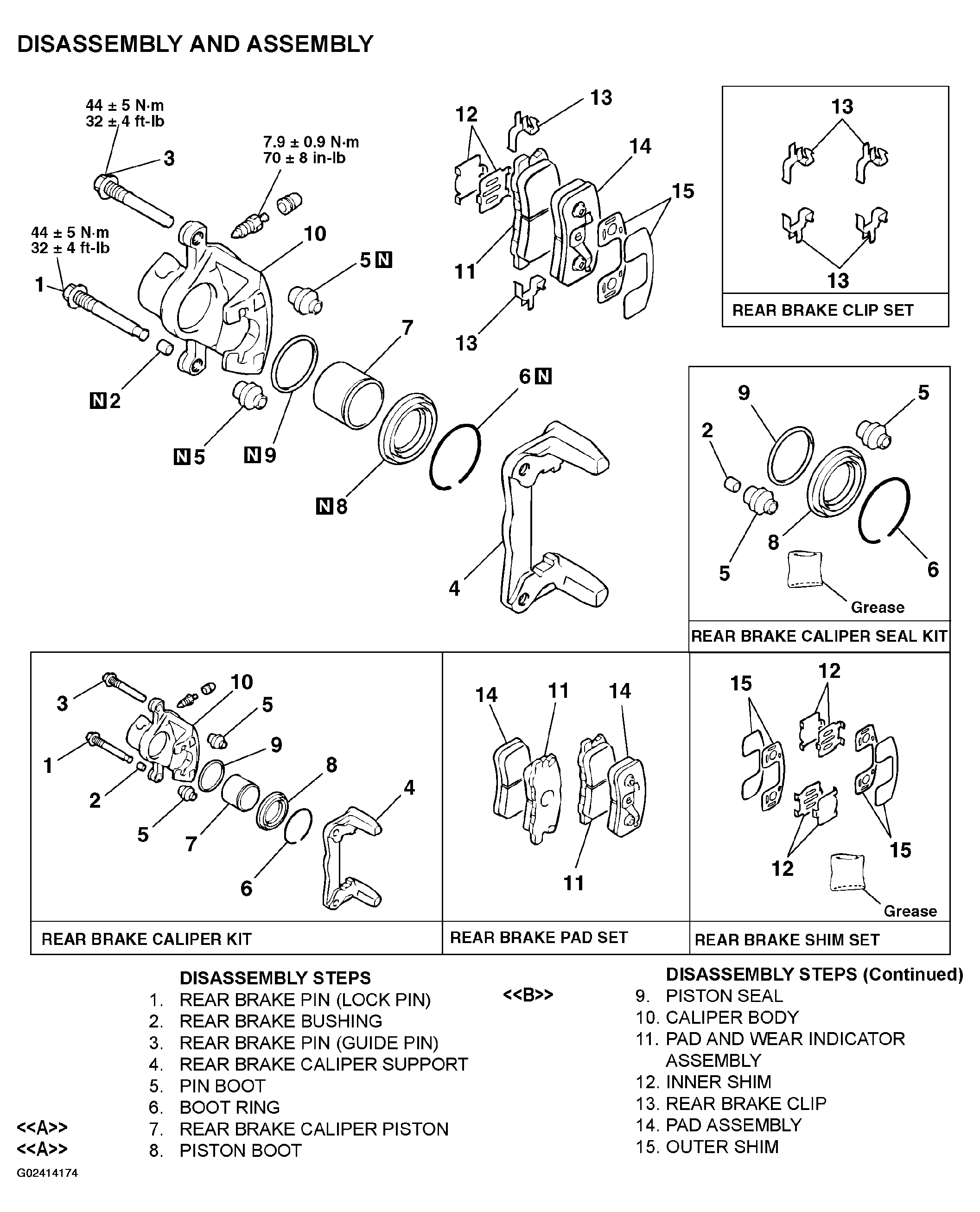

Fig 1: Disassembling Rear Disc Brake Assembly
G02414174Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
