Section 24 (Basic Brake System -- Except Evolution)
›
Specifications
›
Service Specifications
Service Specifications
WARNING:
This page is about a different variant/trim than selected.

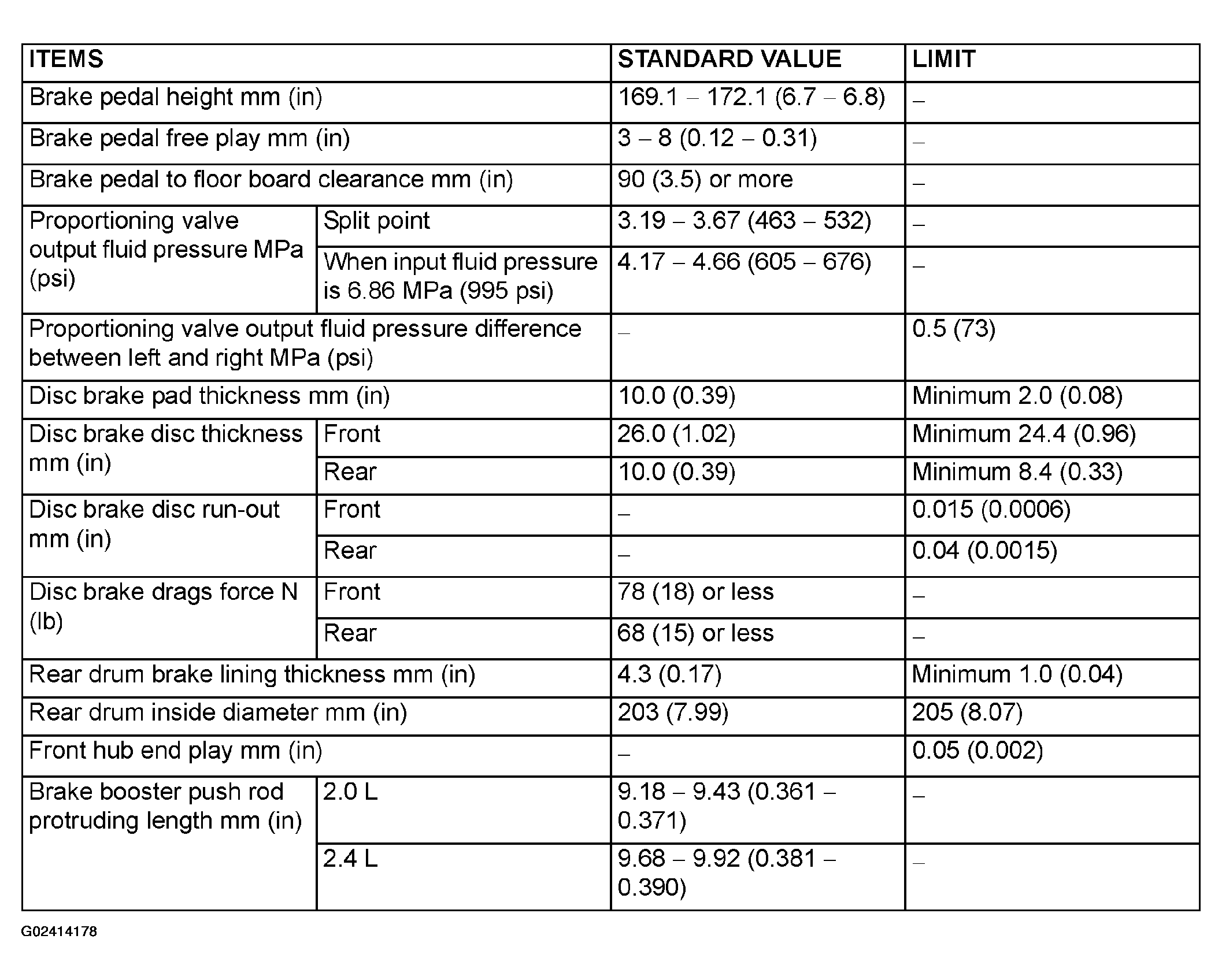

Fig 1: Service Specifications Chart
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
