Disassembly And Assembly: Notes

WARNING: This page is about a different variant/trim than selected.

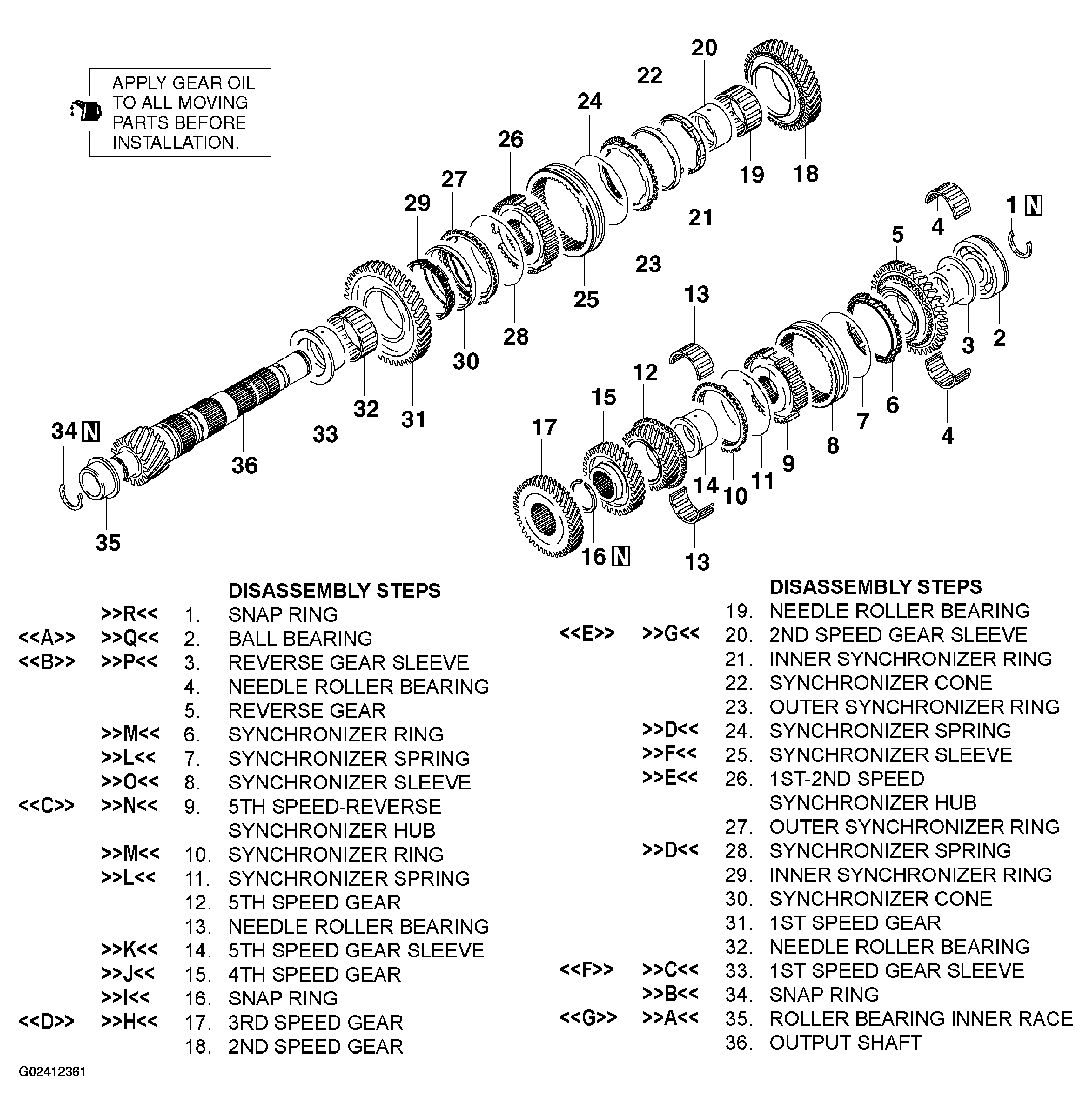

Fig 1: Disassembly Steps Of Output Shaft Components

G02412361

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tools:

MD998801: Bearing Remover
MD998812: Installer Cap
MD998813: Installer-100
MD998814: Installer-200
MD998818: Installer Adapter (38)
MD998819: Installer Adapter (40)
MD998822: Installer Adapter (46)
MD998825: Installer Adapter (52)
MD998917: Bearing Remover
