Section 29 (Overhaul -- Except Evolution)
›
Special Tools
Special Tools
WARNING:
This page is about a different variant/trim than selected.

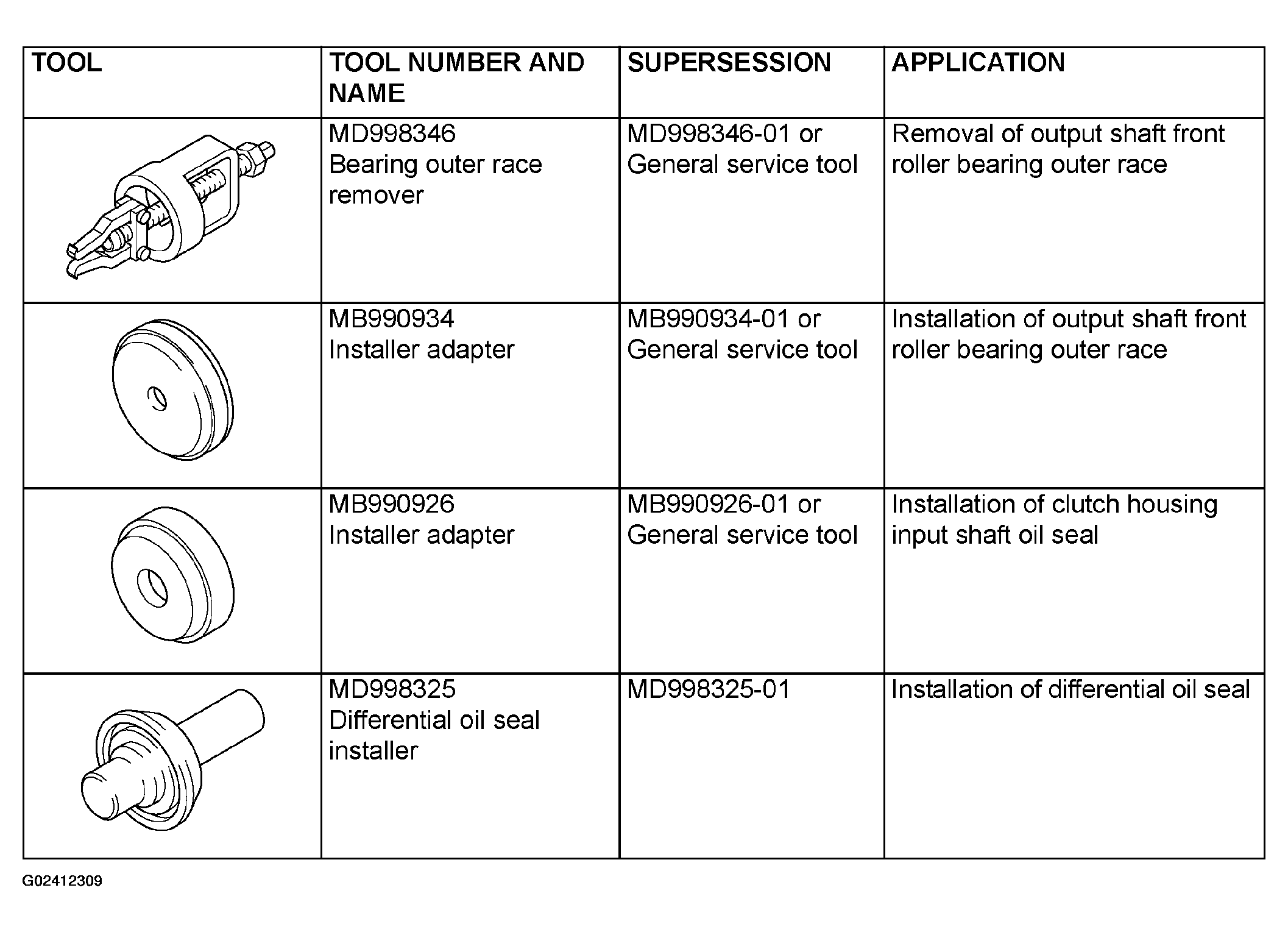

Fig 1: Special Tools Description Chart (1 Of 3)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

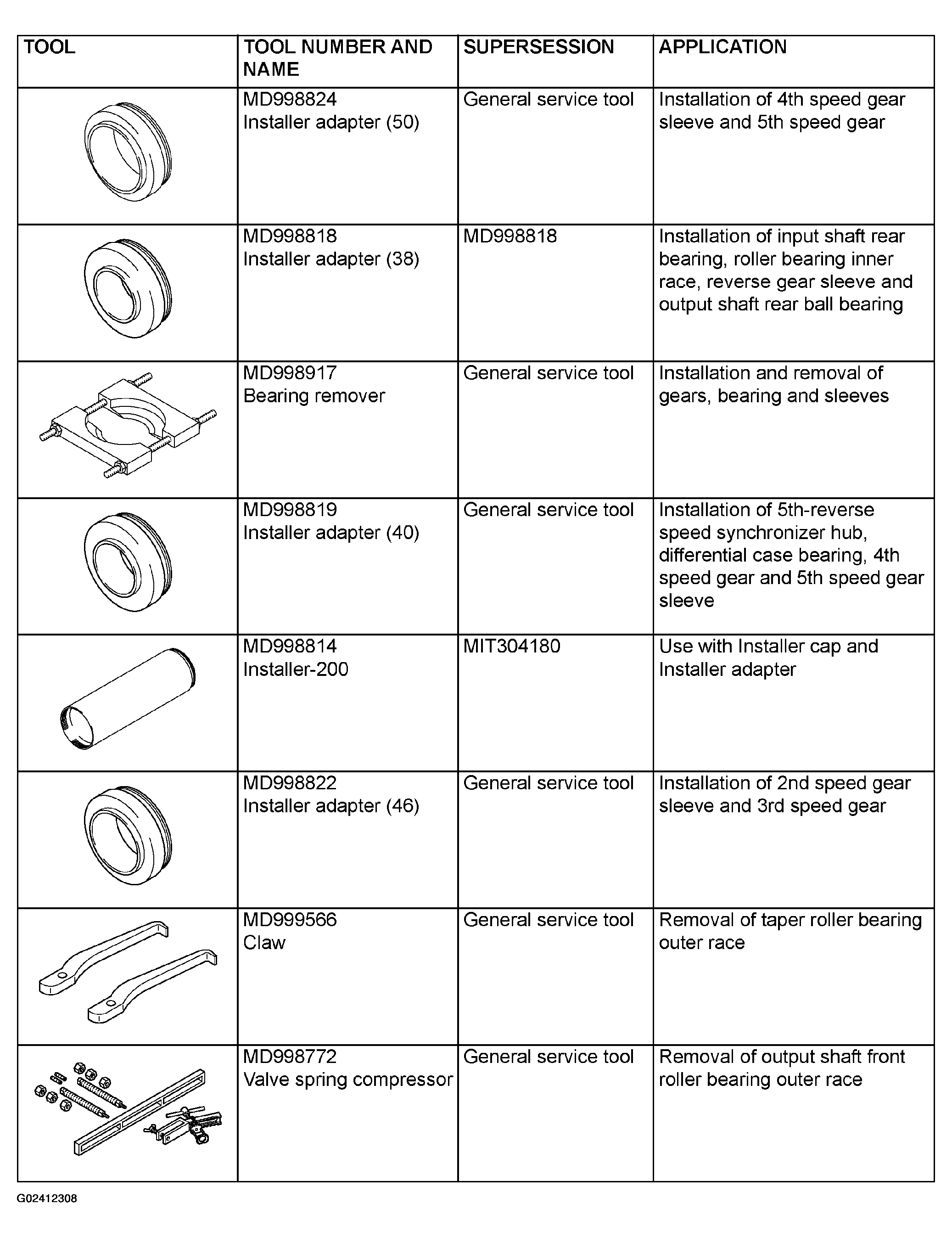

Fig 2: Special Tools Description Chart (2 Of 3)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

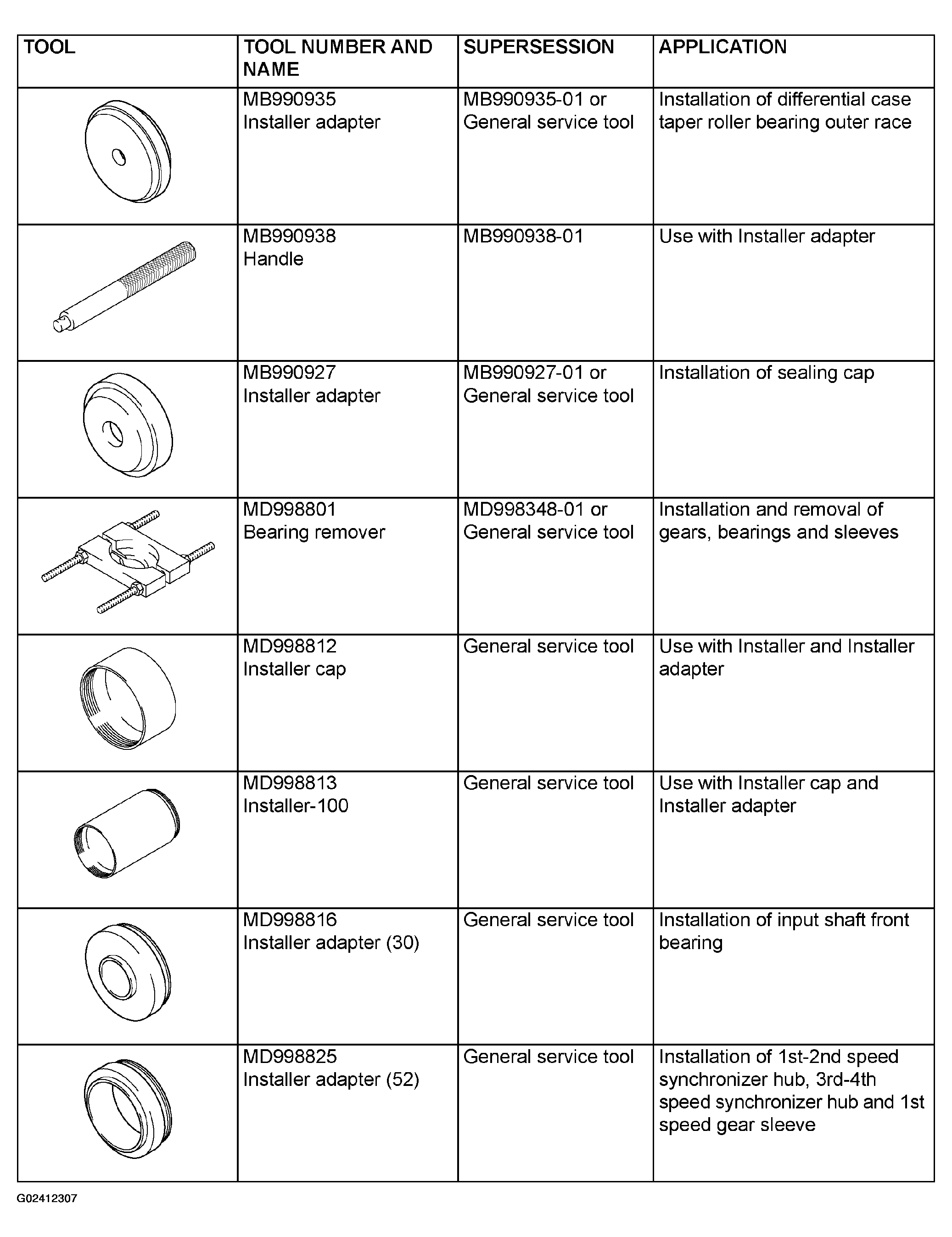

Fig 3: Special Tools Description Chart (3 Of 3)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
