Removal And Installation: Notes

WARNING: This page is about a different variant/trim than selected.

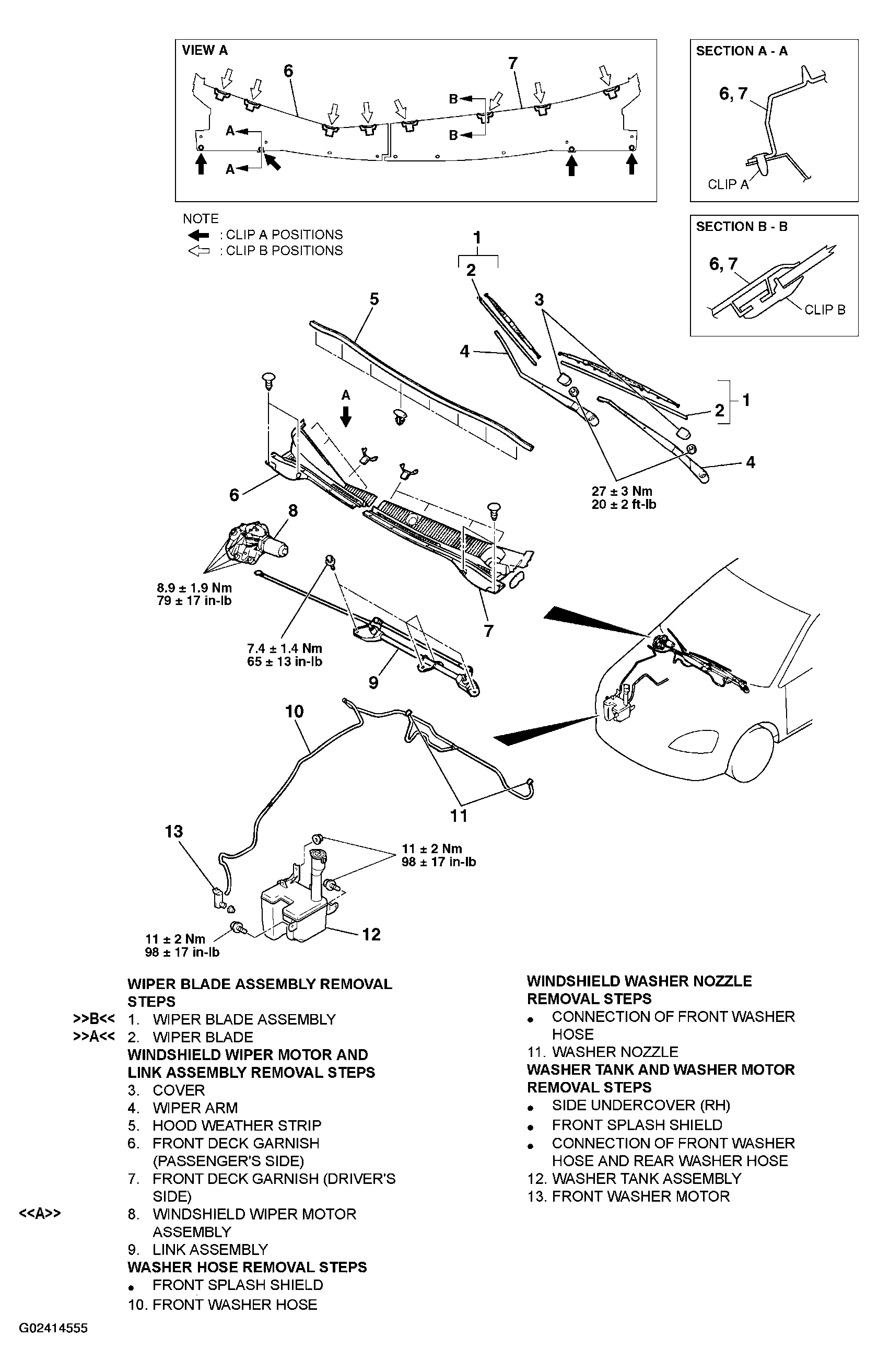

Fig 1: Removing And Installing Windshield Wiper And Washer

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

NOTE: For removal and installation of the wiper and washer switch, Refer to , COLUMN SWITCH .
