Section 38 (Simplified Wiring System (SWS) - Except Evolution)
›
On-Vehicle Service
›
Adjustment Procedures Of SWS Function < Vehicles With Keyless Entry System >
›
Configuration Of Function
Configuration Of Function
WARNING:
This page is about a different variant/trim than selected.

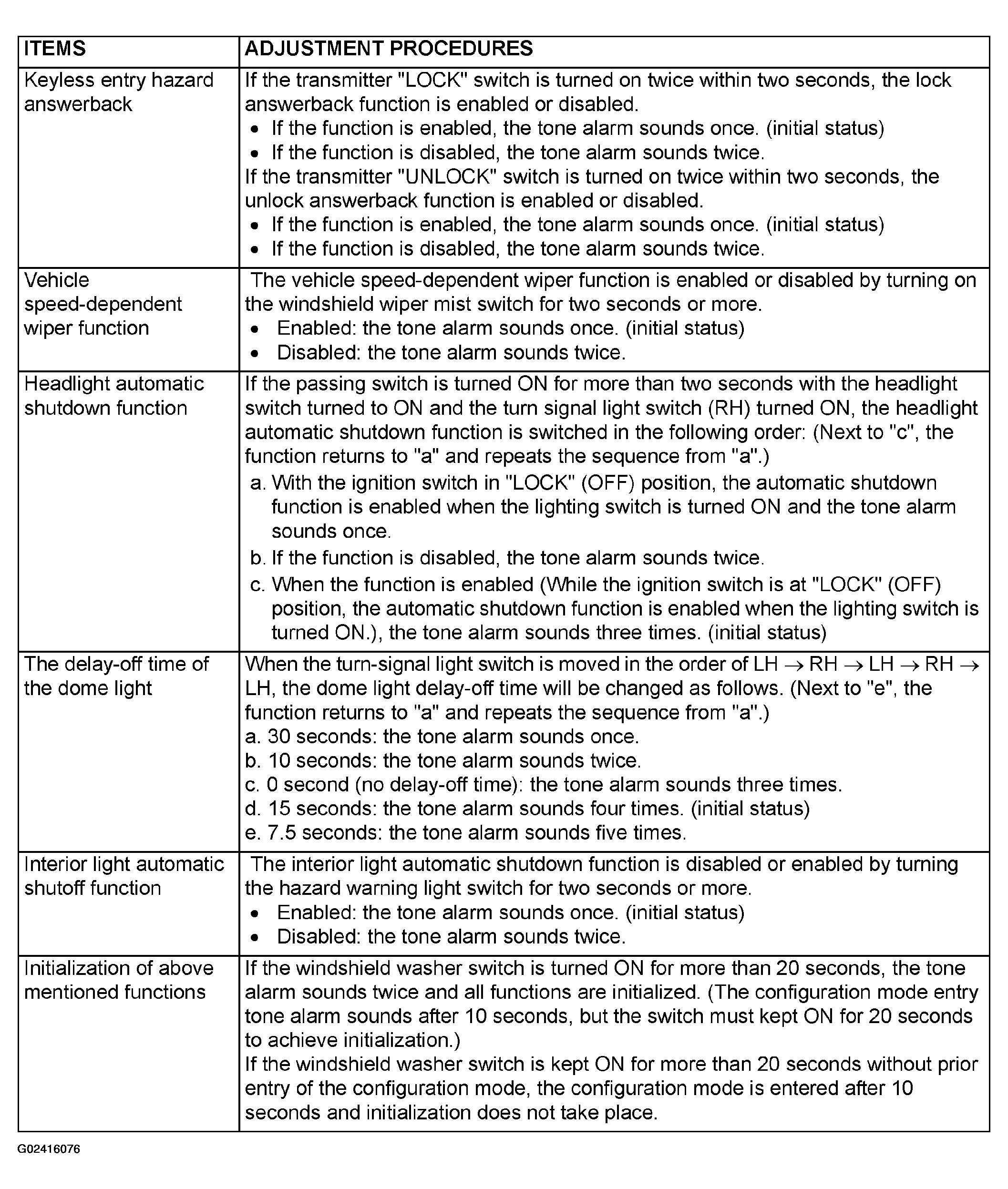

Fig 1: Function Configuration Chart
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
