Injector Connector

WARNING: This page is about a different variant/trim than selected.

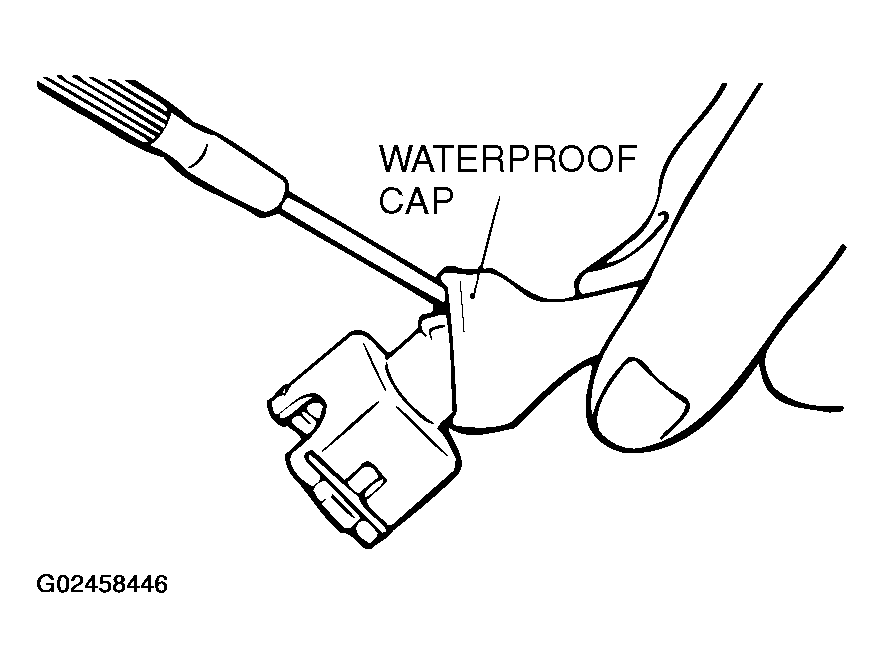

Remove the waterproof cap.

Fig 1: Removing Waterproof Cap
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

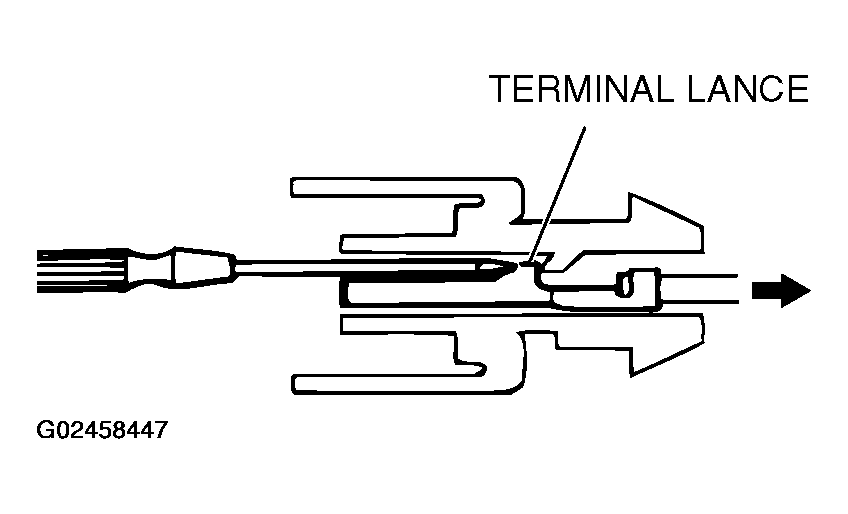

Insert the tip of a screwdriver [1.4 mm (0.06 inch) width] into the connector as shown in the figure, press in the terminal lance, and pull out the terminal.
CAUTION: Make sure the lance is pressed in before the terminal is inserted into the connector.

Fig 2: Inserting Tip Of A Screwdriver Into Connector
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

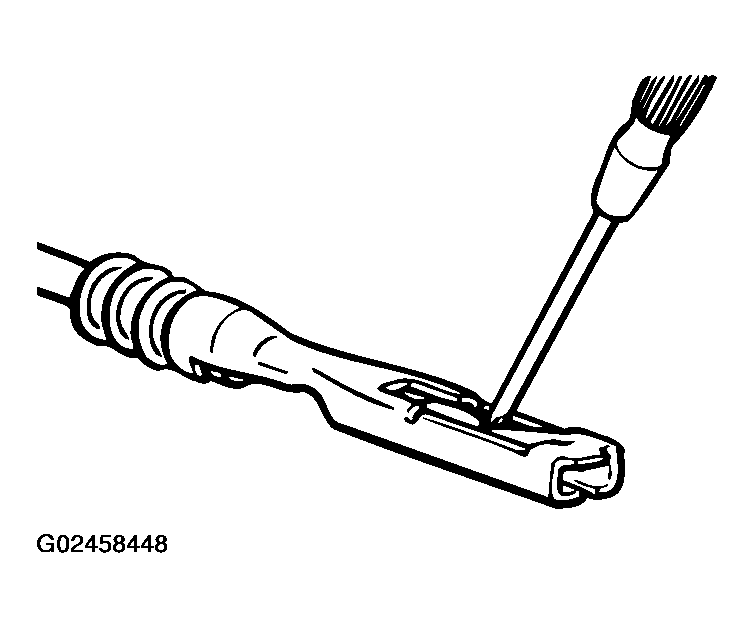

Press the contact point to the male terminal down by holding a screwdriver [1.4 mm (0.06 inch) width] as shown in the figure.

Fig 3: Pressing Contact Point To Male Terminal
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
