General -- Technical Information -- Evolution
›
General Data And Specifications
›
General Specifications
General Specifications

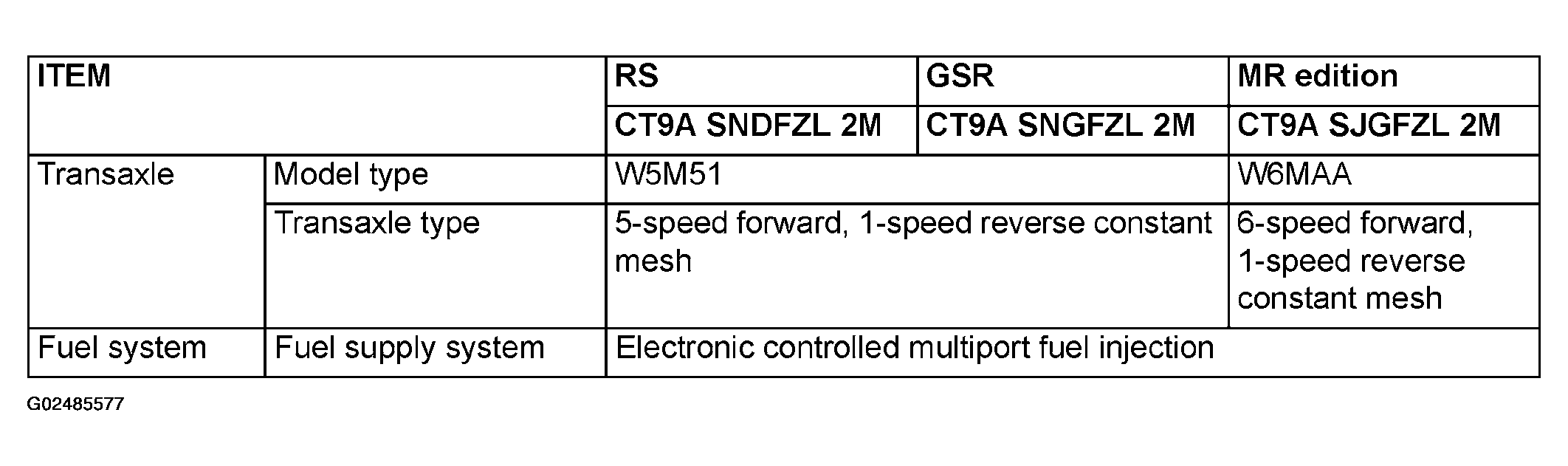

Fig 1: General Specifications
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

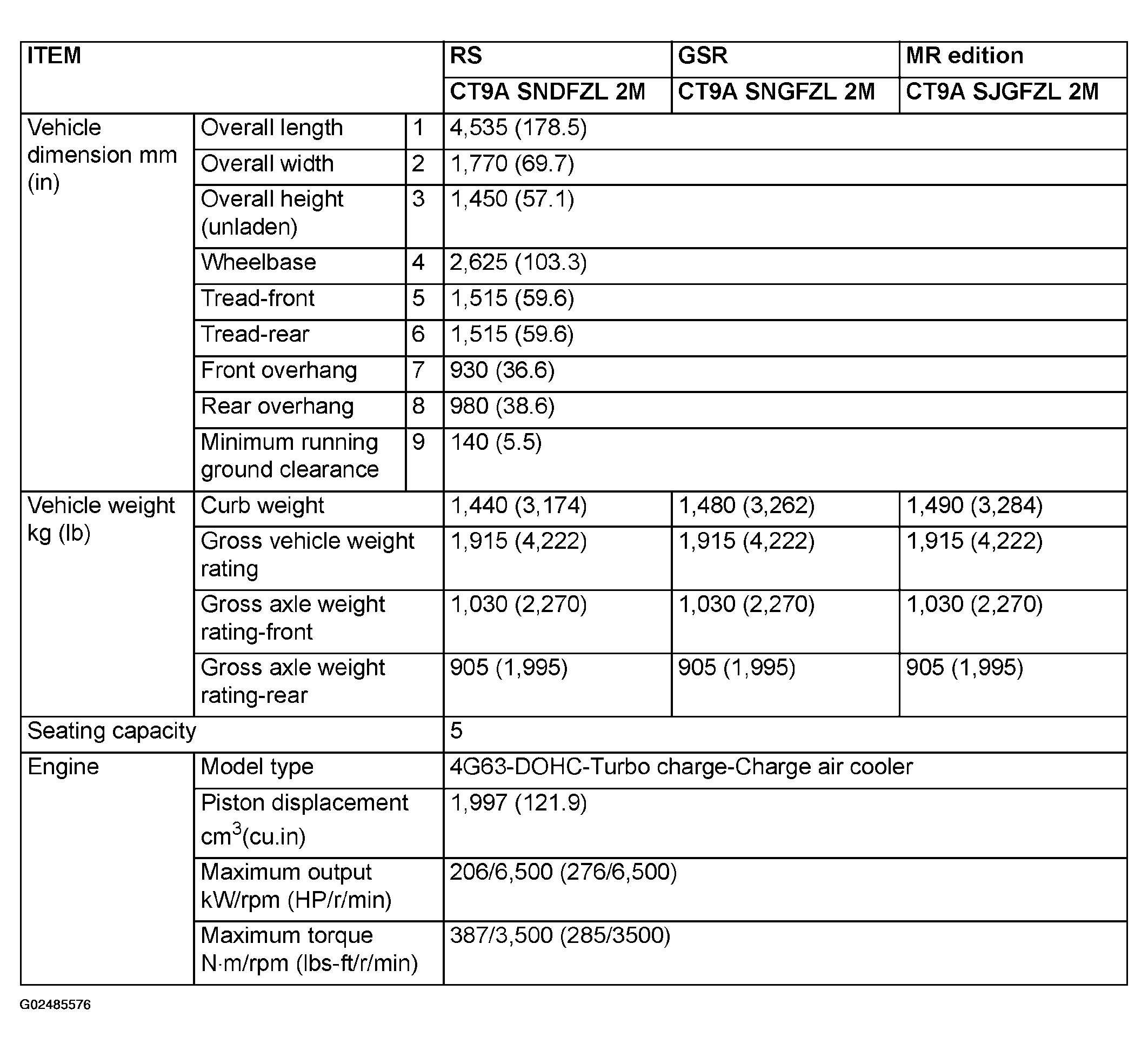

Fig 2: Data Specifications (1 Of 2)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

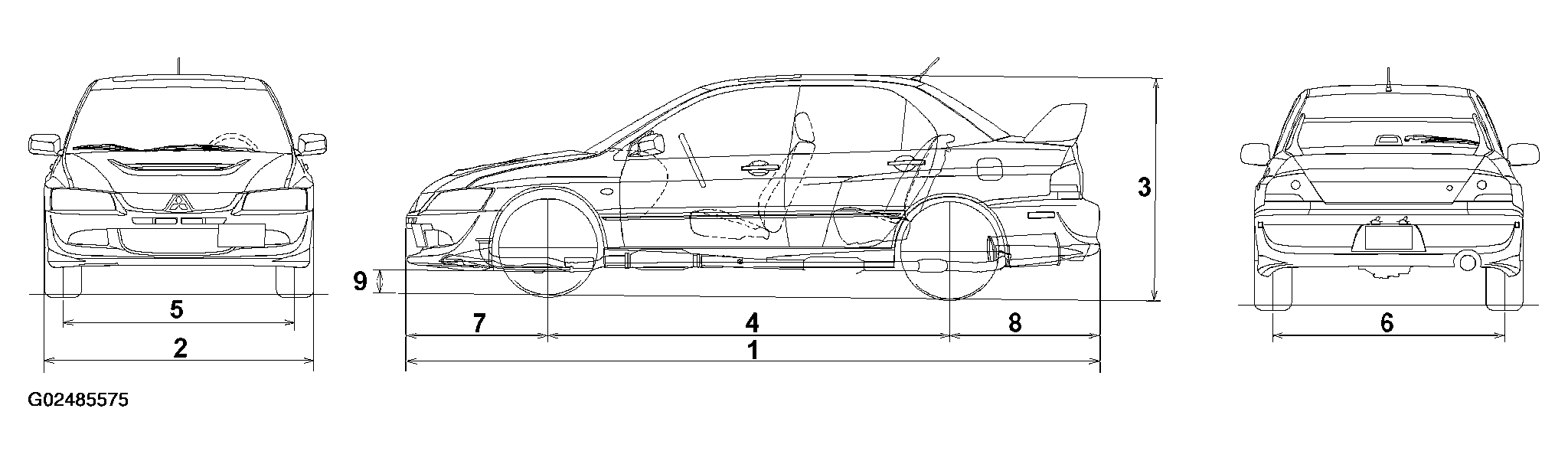

Fig 3: Data Specifications (2 Of 2)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
