Repair and Diagnosis
›
Restraints
›
Passive Restraints
›
Interior -- Evolution
›
Front Seat Belt
›
Removal And Installation
Removal And Installation
CAUTION:
SRS: Before removing and installing the seat belts with pre-tensioner, refer to
SEAT BELTS WITH PRE-TENSIONER
.

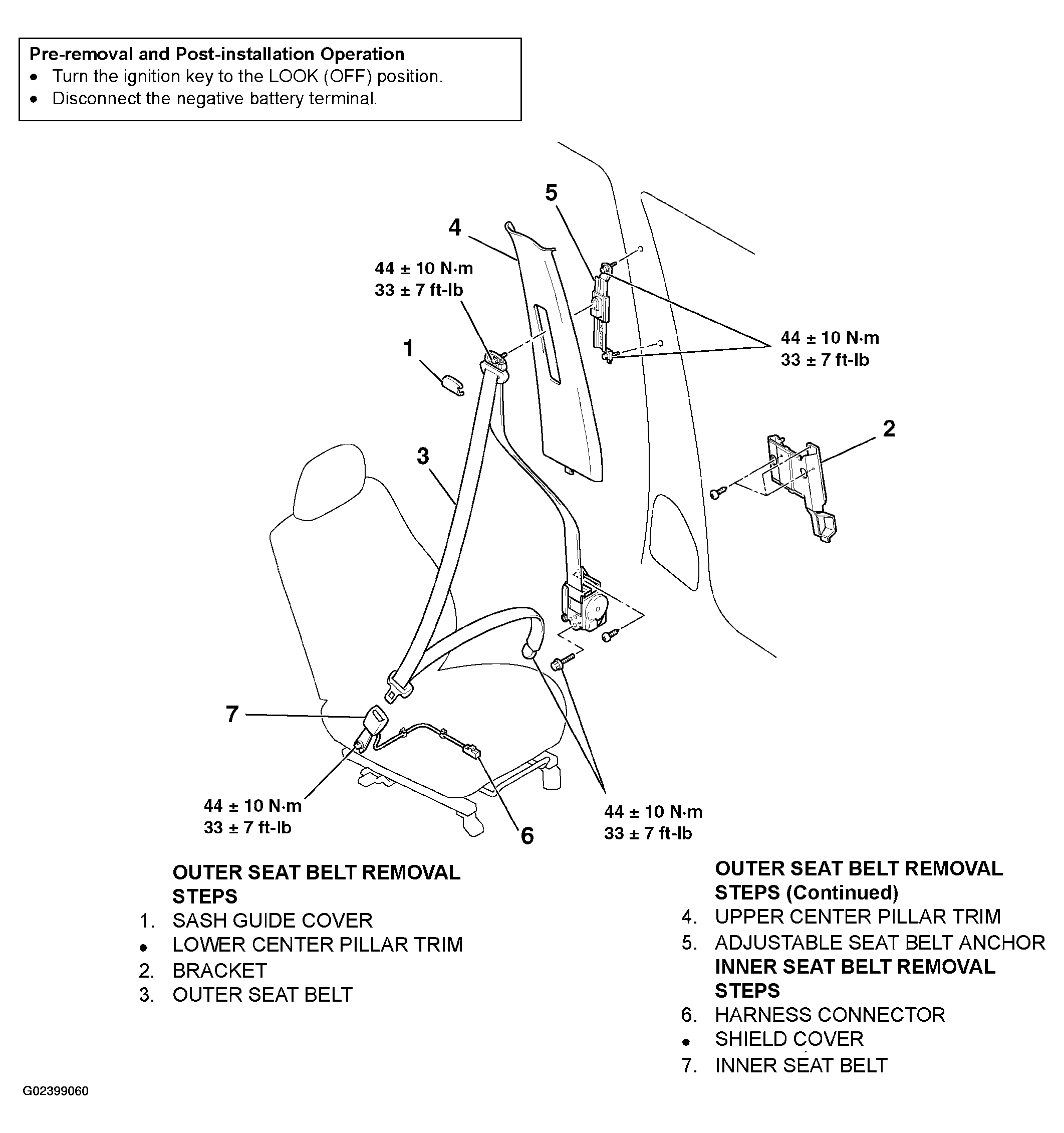

Fig 1: Exploded View Of Front Seat Belt
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
