FixVault
Home
›
Mitsubishi
›
2005
›
Lancer Evolution
›
Repair and Diagnosis
›
Restraints
›
Passive Restraints
›
Interior -- Evolution
›
Instrument Panel Assembly
›
Disassembly And Assembly
Disassembly And Assembly

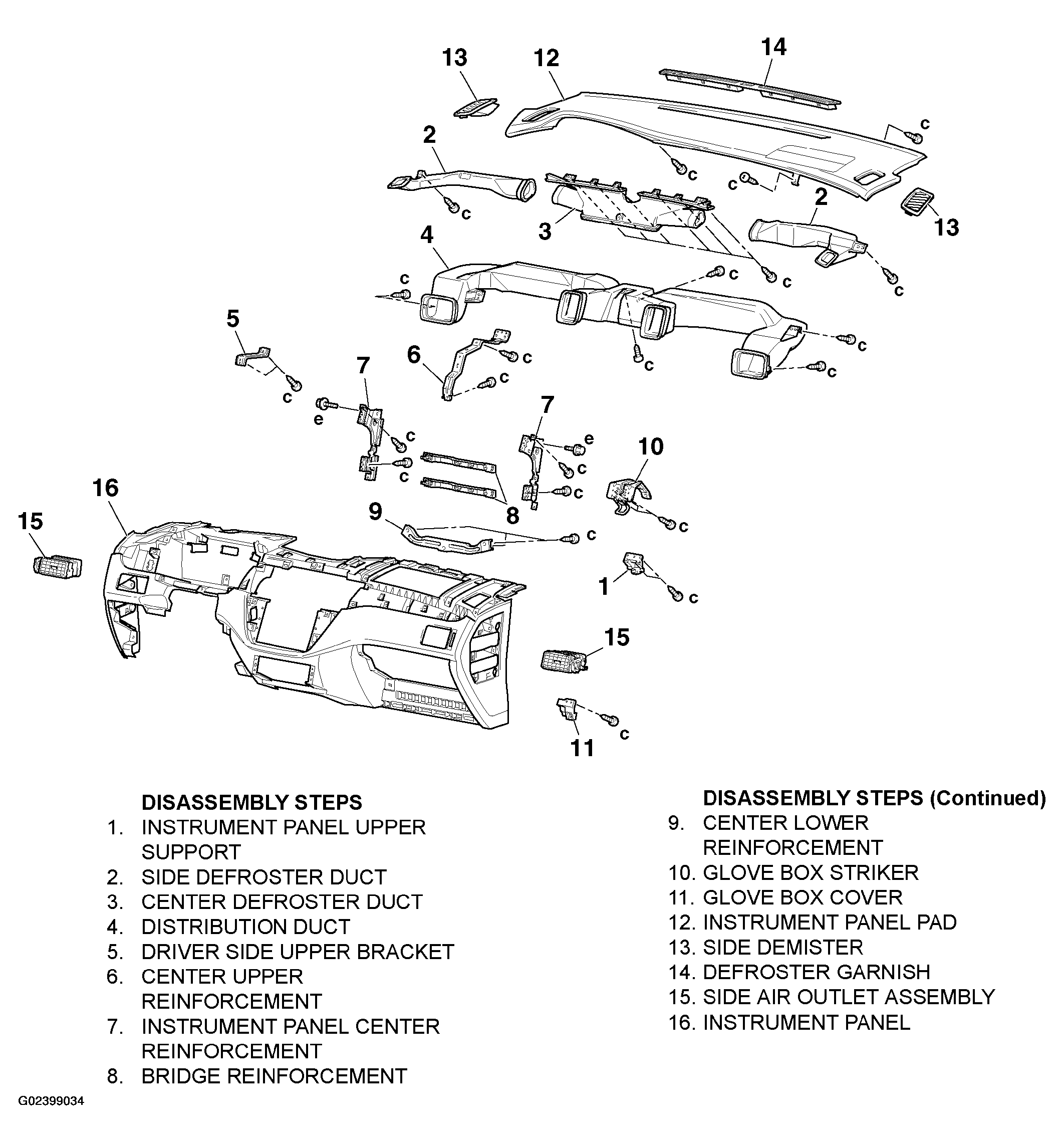

Fig 1: Exploded View Of Instrument Panel Assembly
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
