FixVault
Home
›
Mitsubishi
›
2005
›
Lancer Evolution
›
Repair and Diagnosis
›
Restraints
›
Passive Restraints
›
Interior -- Evolution
›
Rear Seat Assembly
›
Removal And Installation
›
Notes
Removal And Installation: Notes
< STANDARD FEATURE >

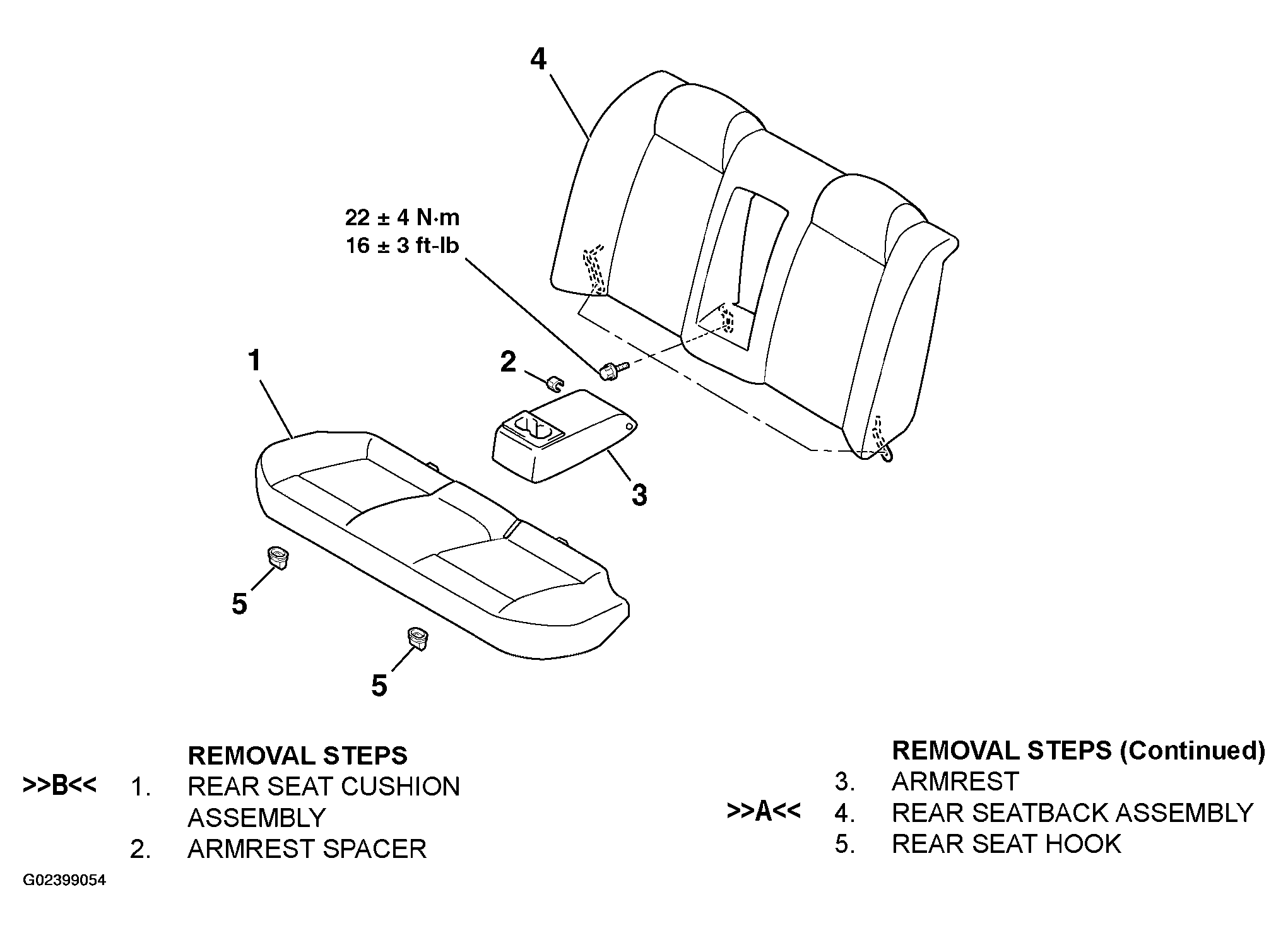

Fig 1: Removing/Installing Rear Seat Assembly (Standard Feature)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
< OPTION >

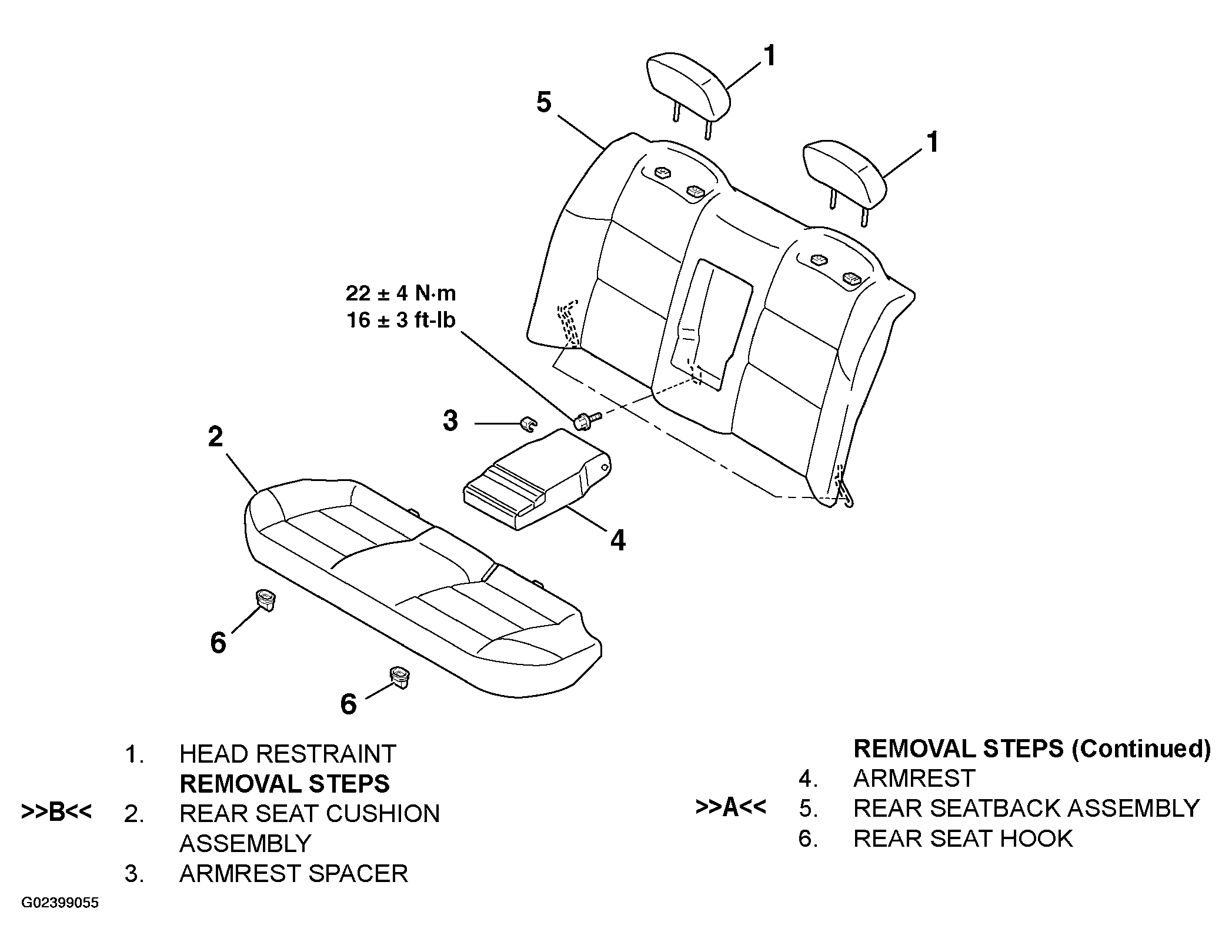

Fig 2: Removing/Installing Rear Seat Assembly (Option)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
