Construction Diagram

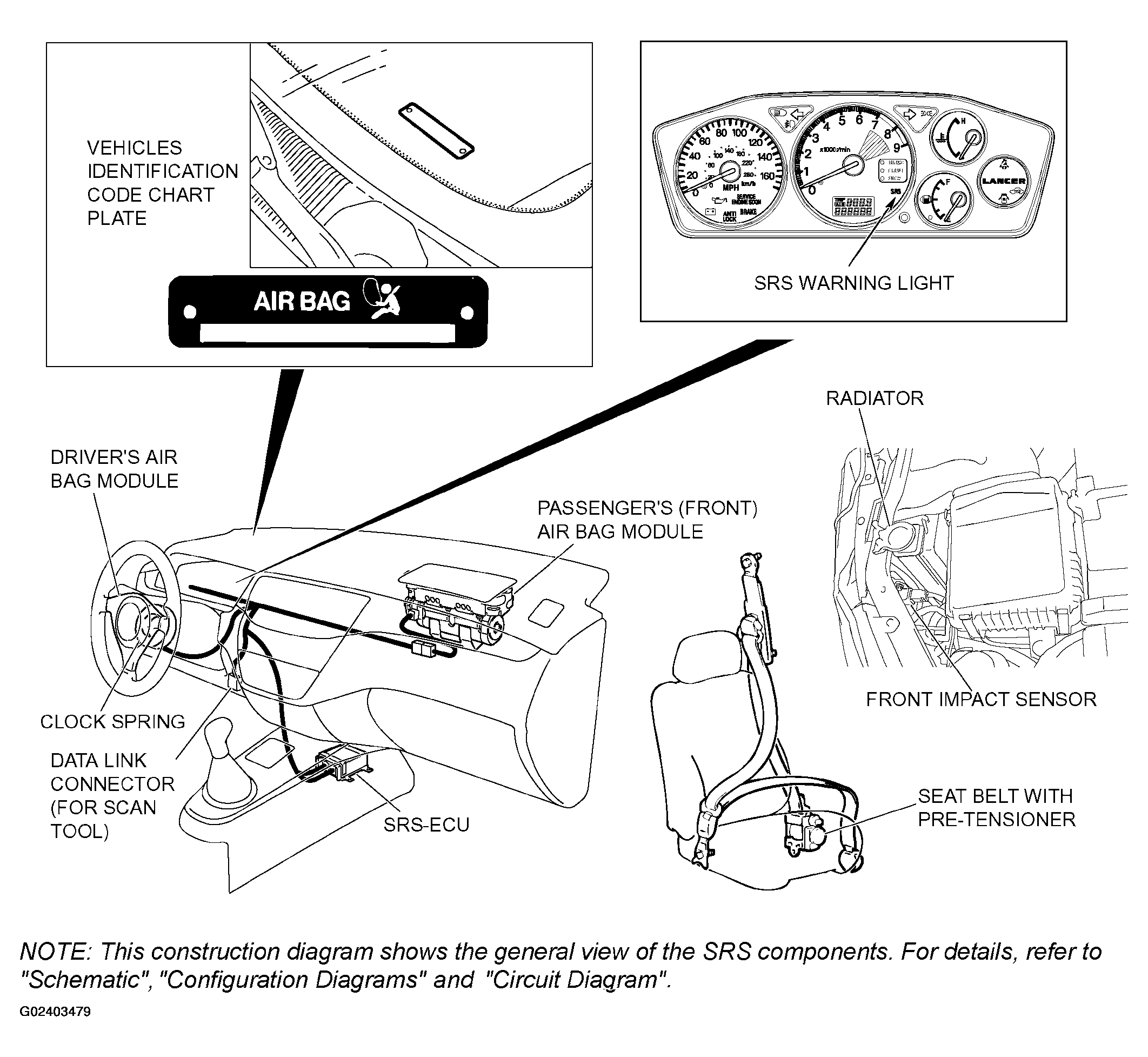

Fig 1: SRS Construction Diagram

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

NOTE: This construction diagram shows the general view of the SRS components. For details, refer to "SCHEMATIC ", ( ) "CONFIGURATION DIAGRAMS " ( ) and "CIRCUIT DIAGRAM " ( ).
