Removal And Installation: Notes

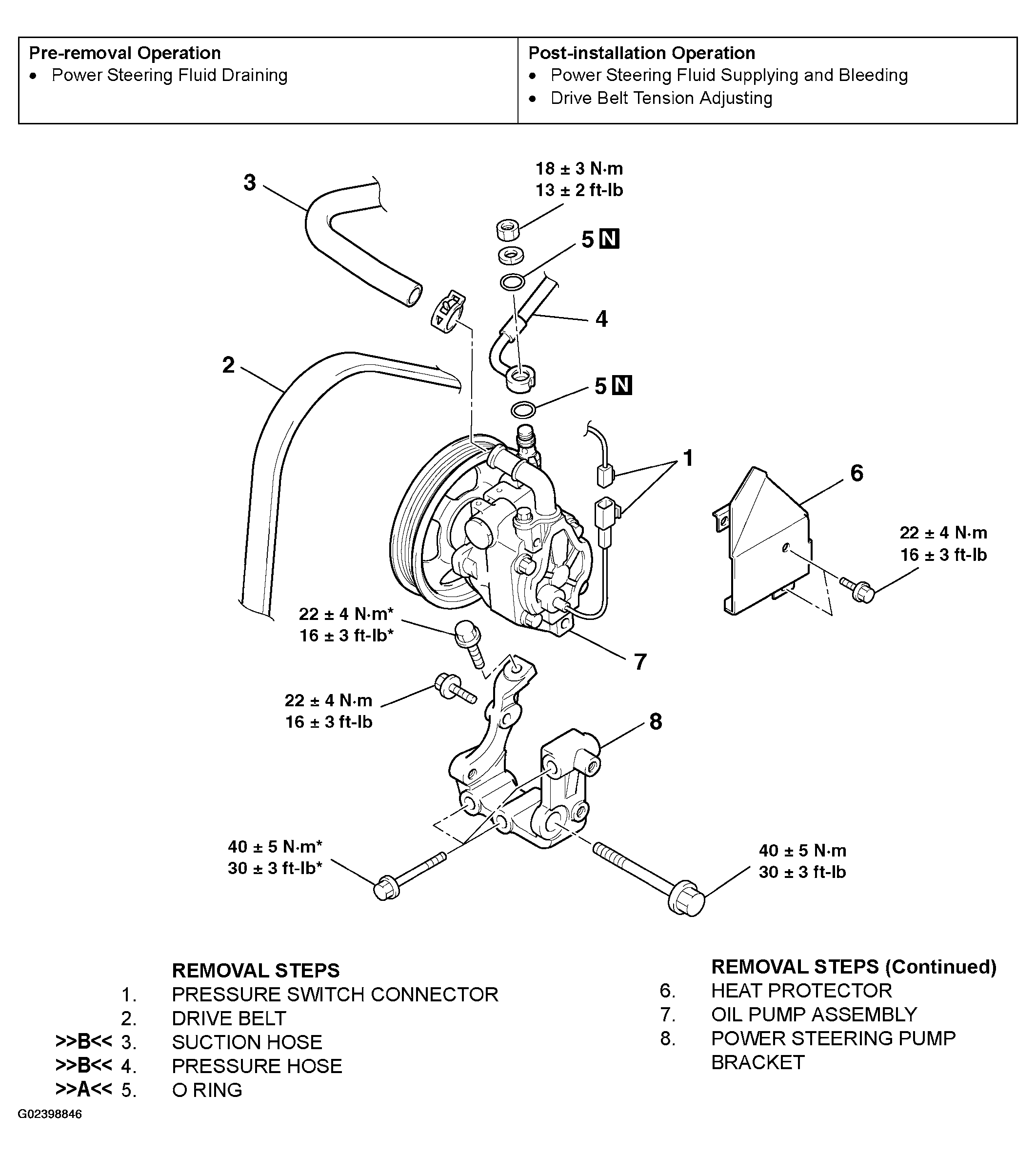

Fig 1: Removing/Installing Power Steering Oil Pump Assembly
G02398846Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
