Disassembly And Assembly: Notes

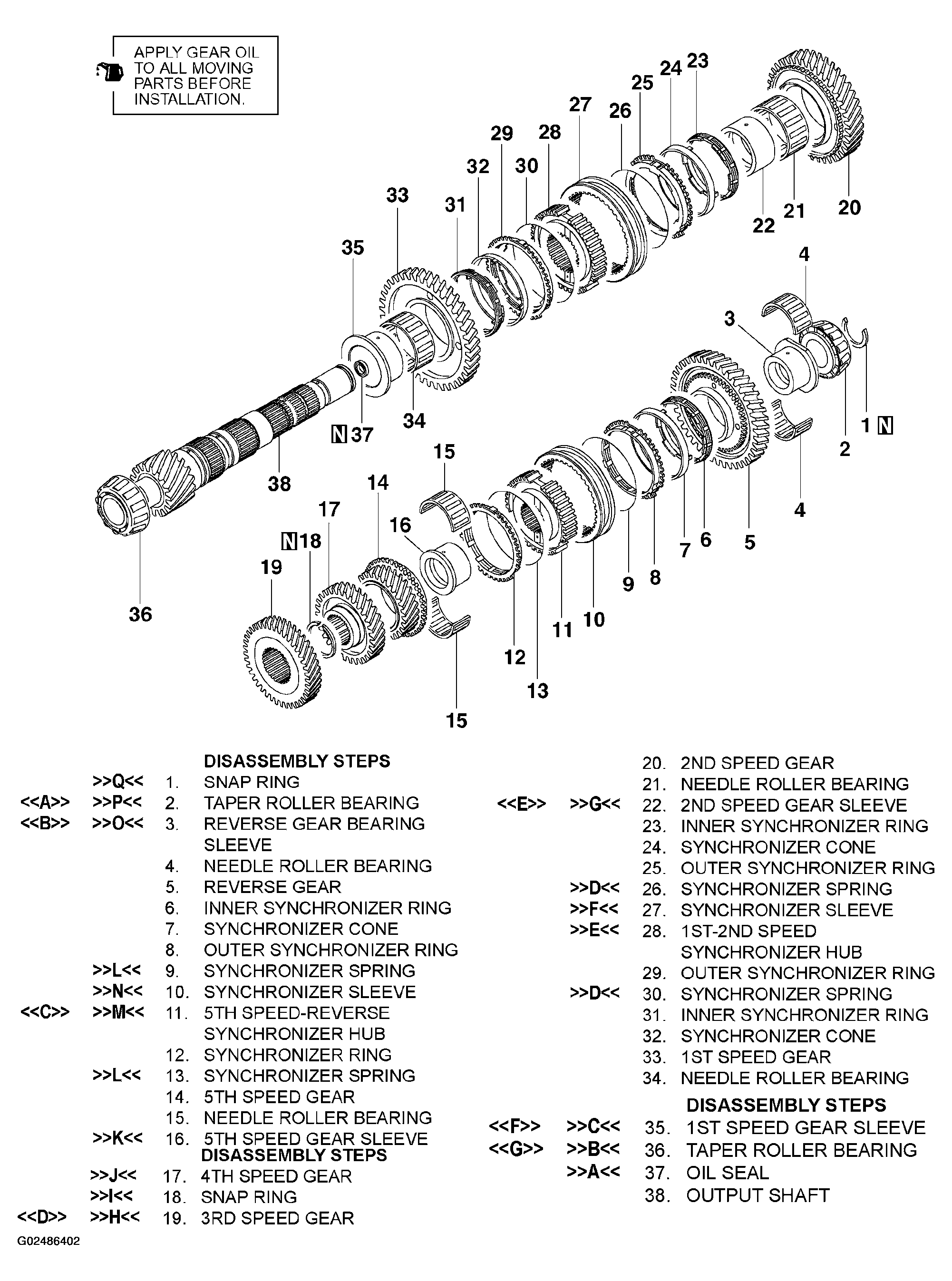

Fig 1: Disassembling/Assembling Output Shaft

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tools:

• MD998364: Camshaft Oil Seal Installer
• MD998801: Bearing Remover
• MD998812: Installer Cap
• MD998814: Installer-200
• MD998819: Installer Adapter (40)
• MD998820: Installer Adapter (42)
• MD998821: Installer Adapter (44)
• MD998824: Installer Adapter (50)
• MD998917: Bearing Remover
