DTC 22: Stoplight Switch System: Notes

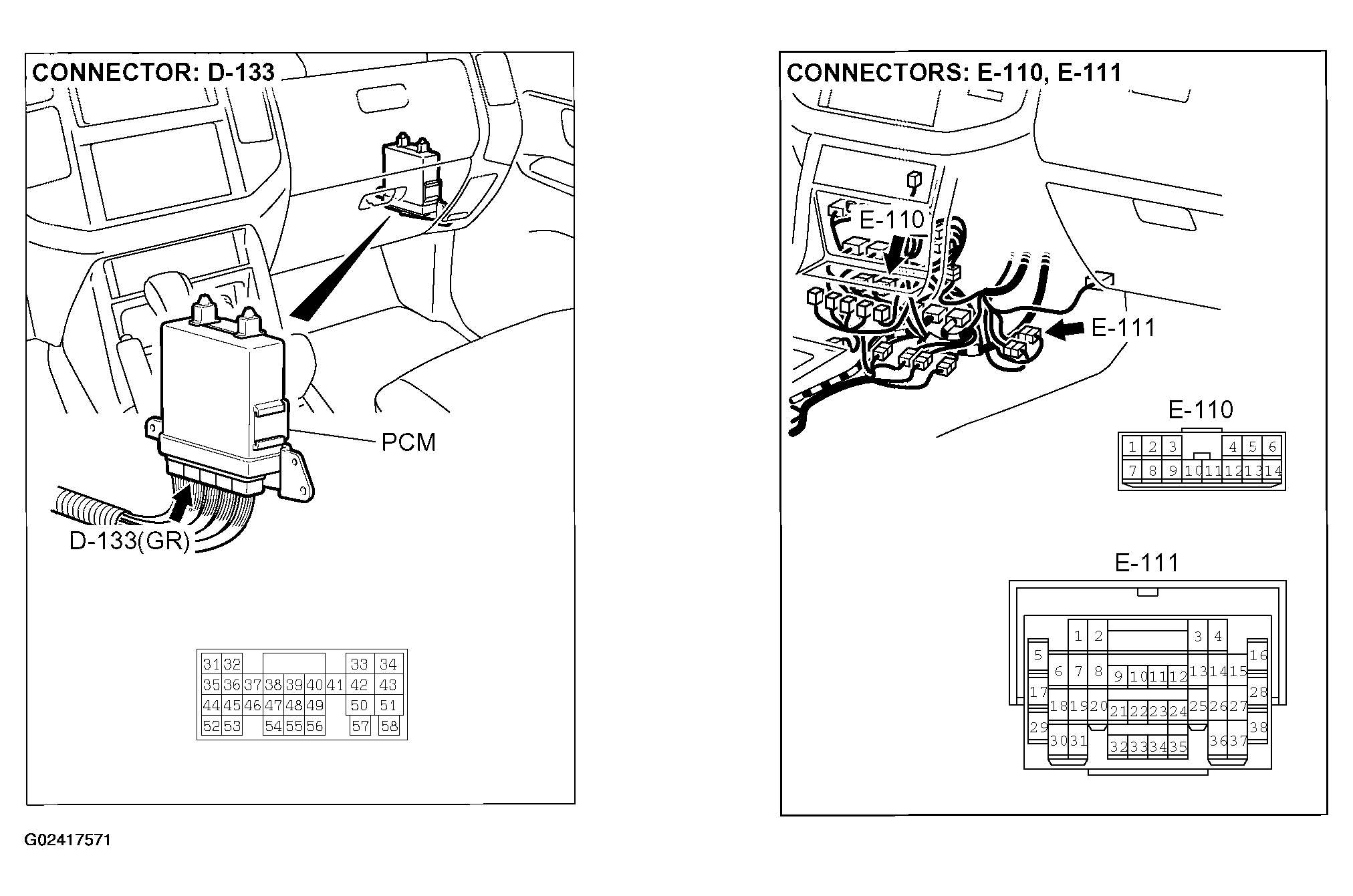

Fig 1: Stoplight Switch System Circuit (1 Of 3)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

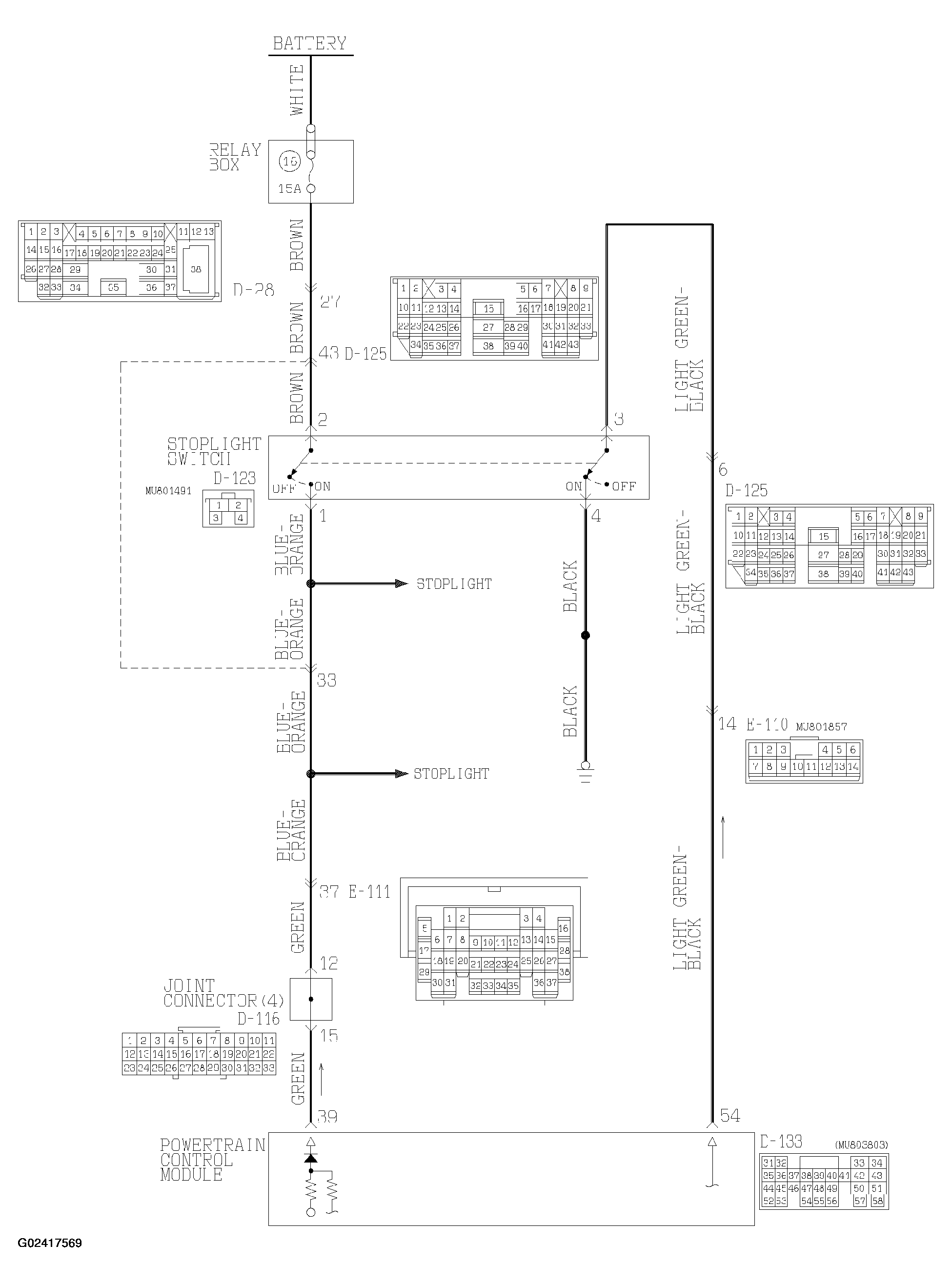

Fig 2: Stoplight Switch System Circuit (2 Of 3)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 3: Stoplight Switch System Circuit (3 Of 3)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
