Auto-Cruise Control Switch Check

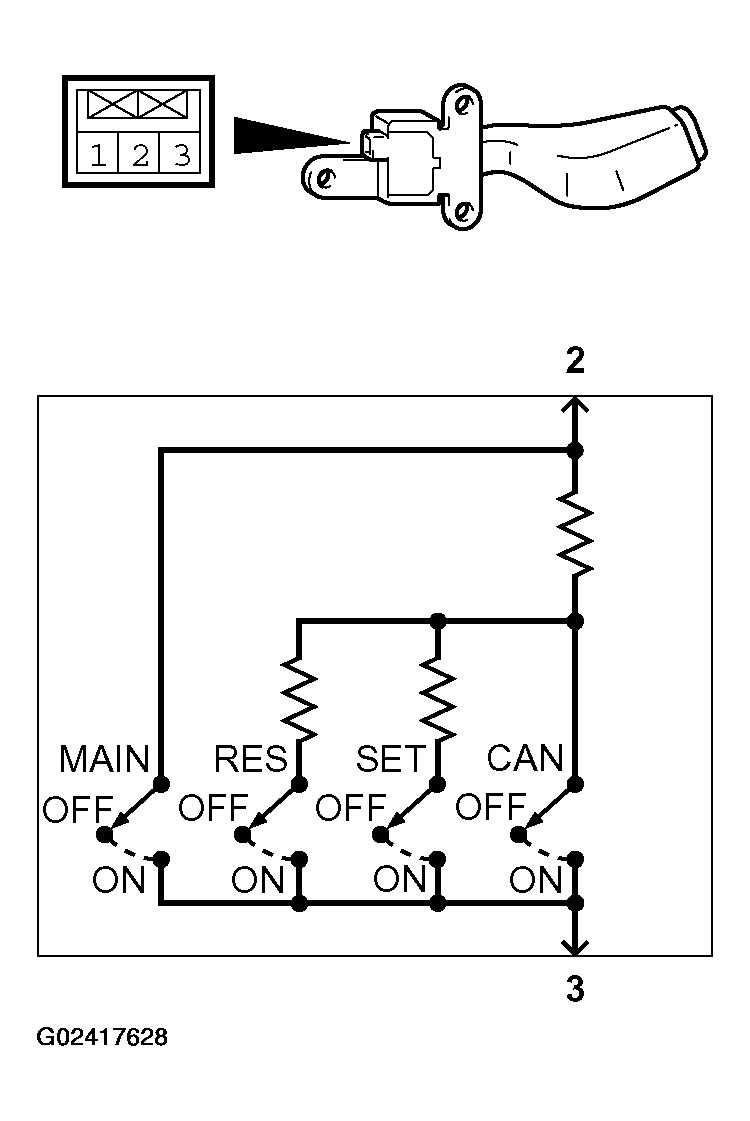

Measure the resistance between terminal 2 and terminal 3 when each of the "SET," "RESUME," "CANCEL" and MAIN switches is pressed. If the values measured at the time correspond to those in the table below, the resistance values are correct.
SWITCH POSITION AND SPECIFIED CONDITION
| SWITCH POSITION | SPECIFIED CONDITION |
|---|---|
| MAIN switch "OFF" | Open circuit |
| MAIN switch "ON" | Less than 2 ohms |
| "CANCEL" switch ON | Approximately 100 Ω |
| "RESUME" switch ON | Approximately 887 Ω |
| "SET" switch ON | Approximately 300 Ω |
