Stoplight Switch

  1. Disconnect the connector.
  2. Check for continuity between the terminals of the switch.

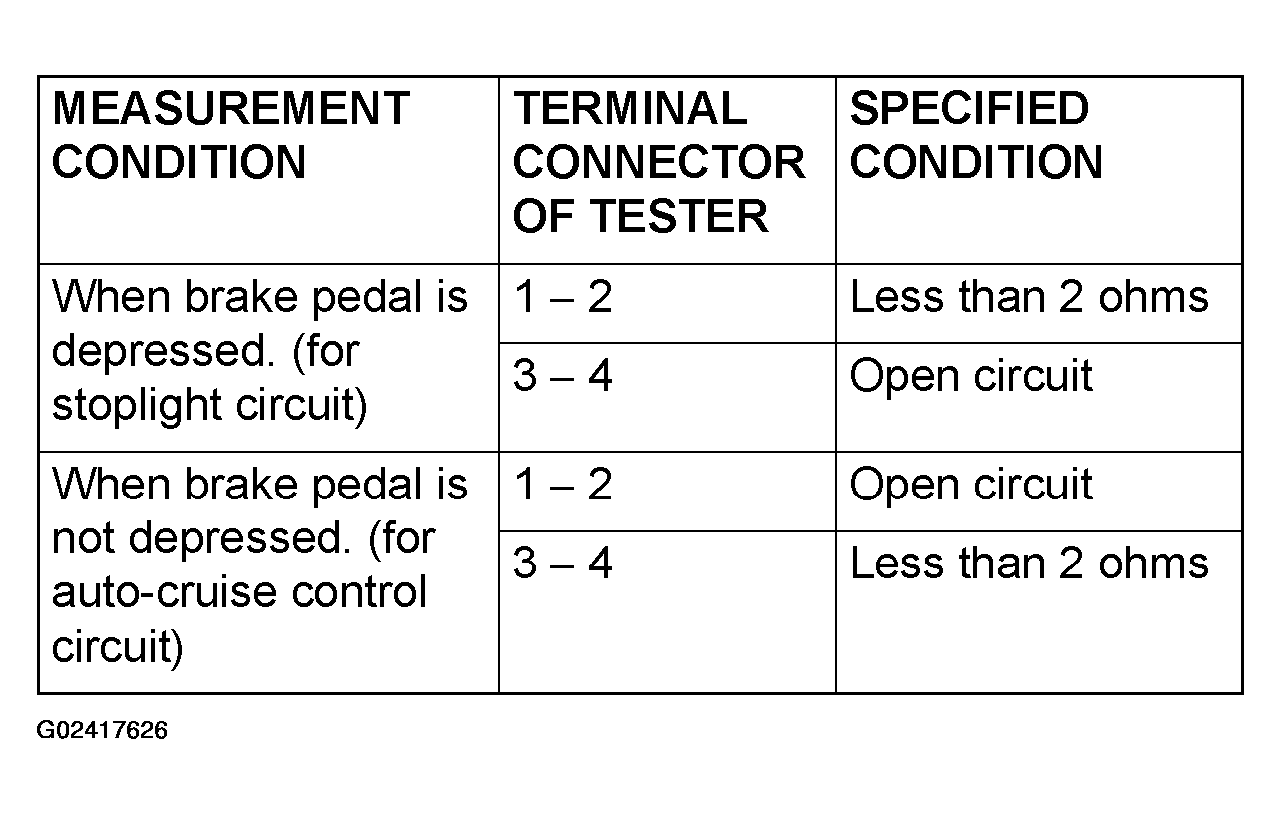

    Fig 1: Stoplight Switch Terminals Continuity Specifications
    G02417626Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
    Fig 2: Identifying Stoplight Switch Terminals
    G02417627Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
