Key Reminder Switch Check

Disconnect key reminder switch connector without removing the ignition switch and steering lock cylinder. Then check the continuity.

TESTER CONNECTION SPECIFIED

STATUS OF IGNITION KEY	TESTER CONNECTION	SPECIFIED CONNECTION
Removed	4 - 6	Less than 2 ohms
Inserted	4 - 6	Open circuit

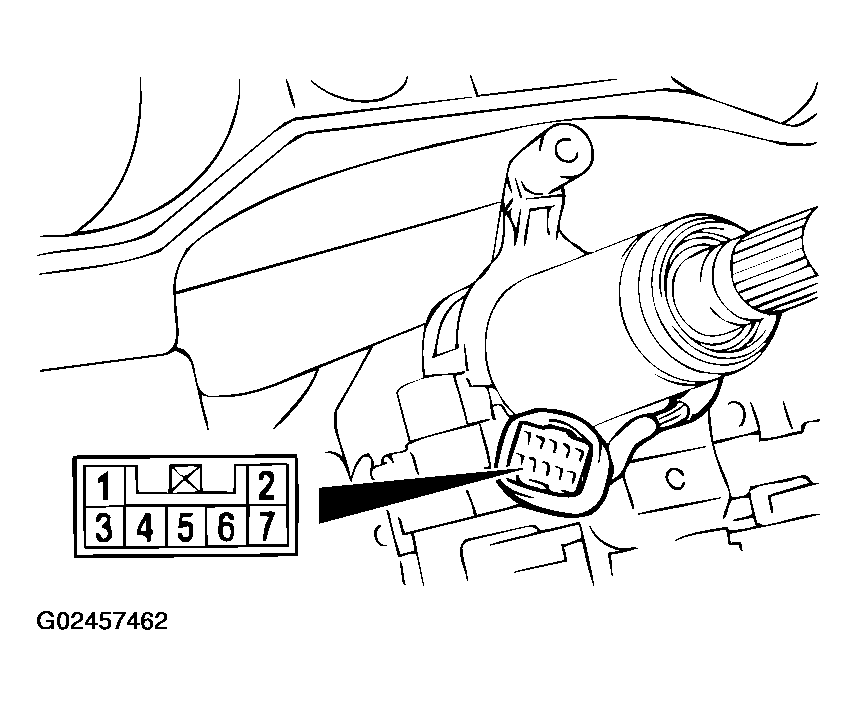

Fig 1: Disconnecting Ignition Switch Connector

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
