Rear Window Defogger Relay Continuity Check

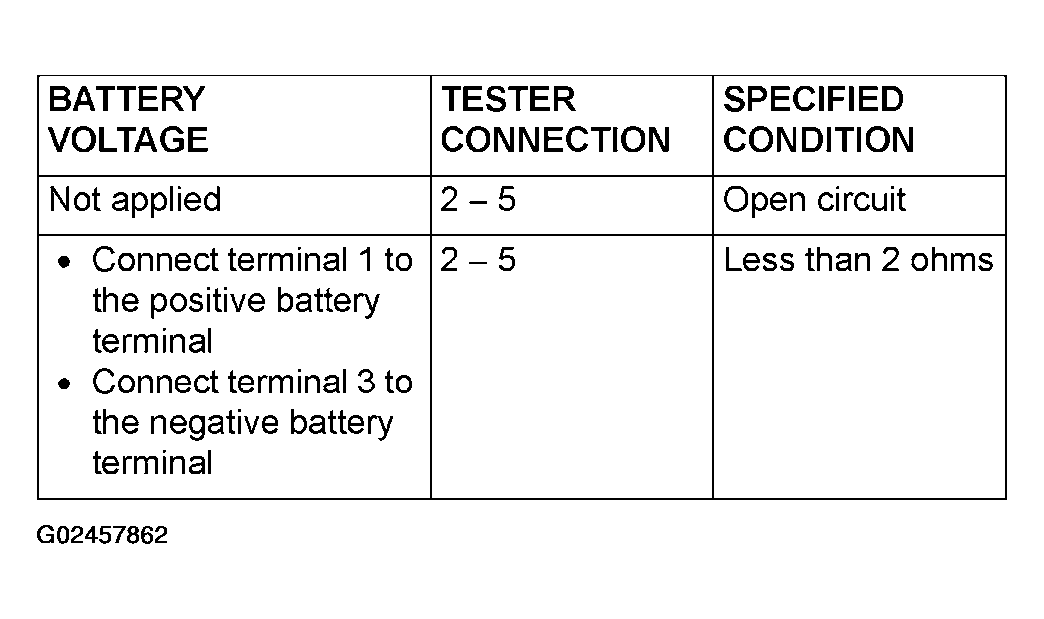

Fig 1: Rear Window Defogger Relay Continuity Check Chart

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

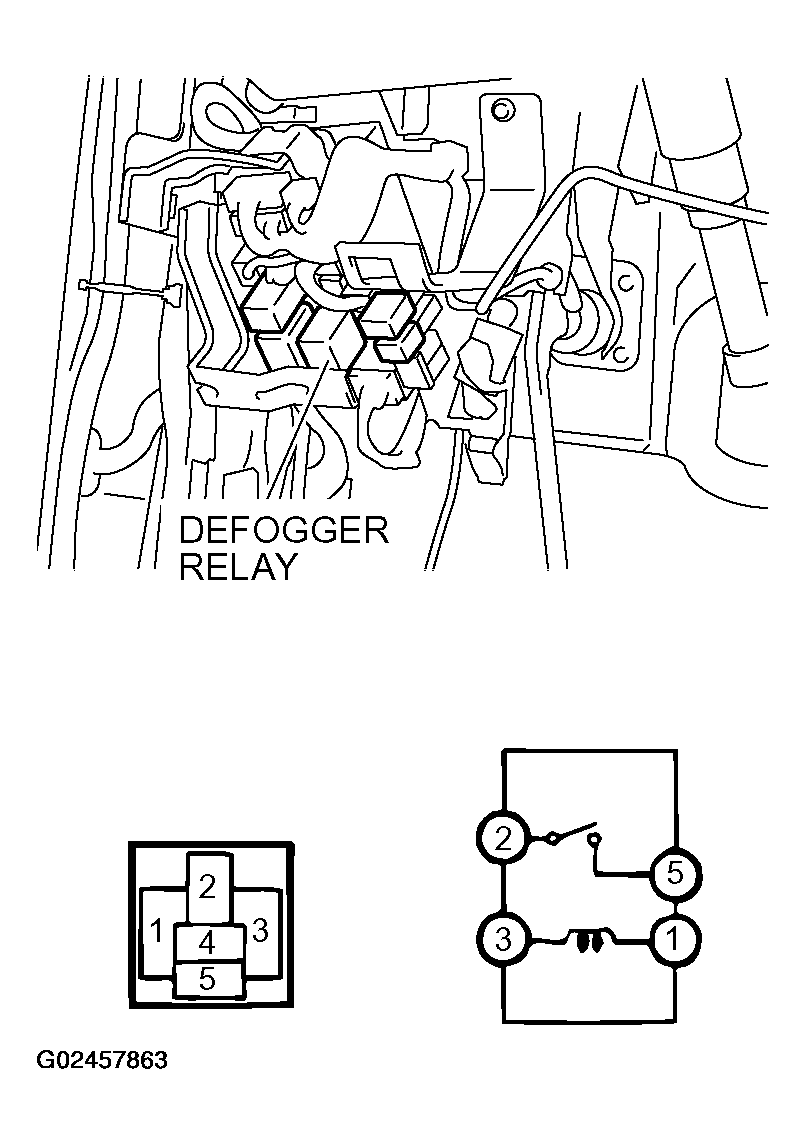

Fig 2: Locating Rear Window Defogger Relay

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
