Disassembly And Assembly: Notes

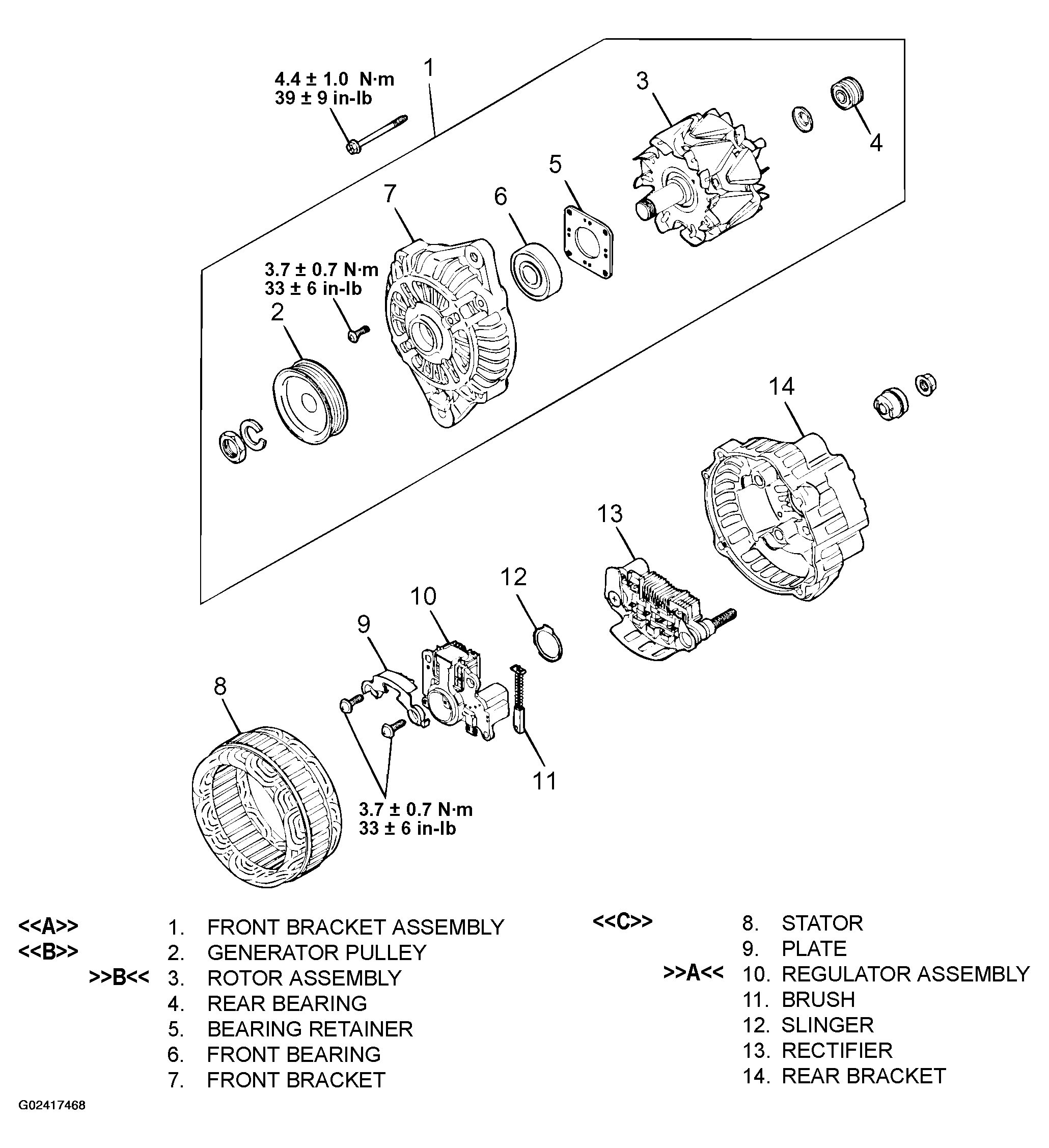

Fig 1: Disassembly And Assembly Of Generator Assembly
G02417468Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
