Removal And Installation: Notes

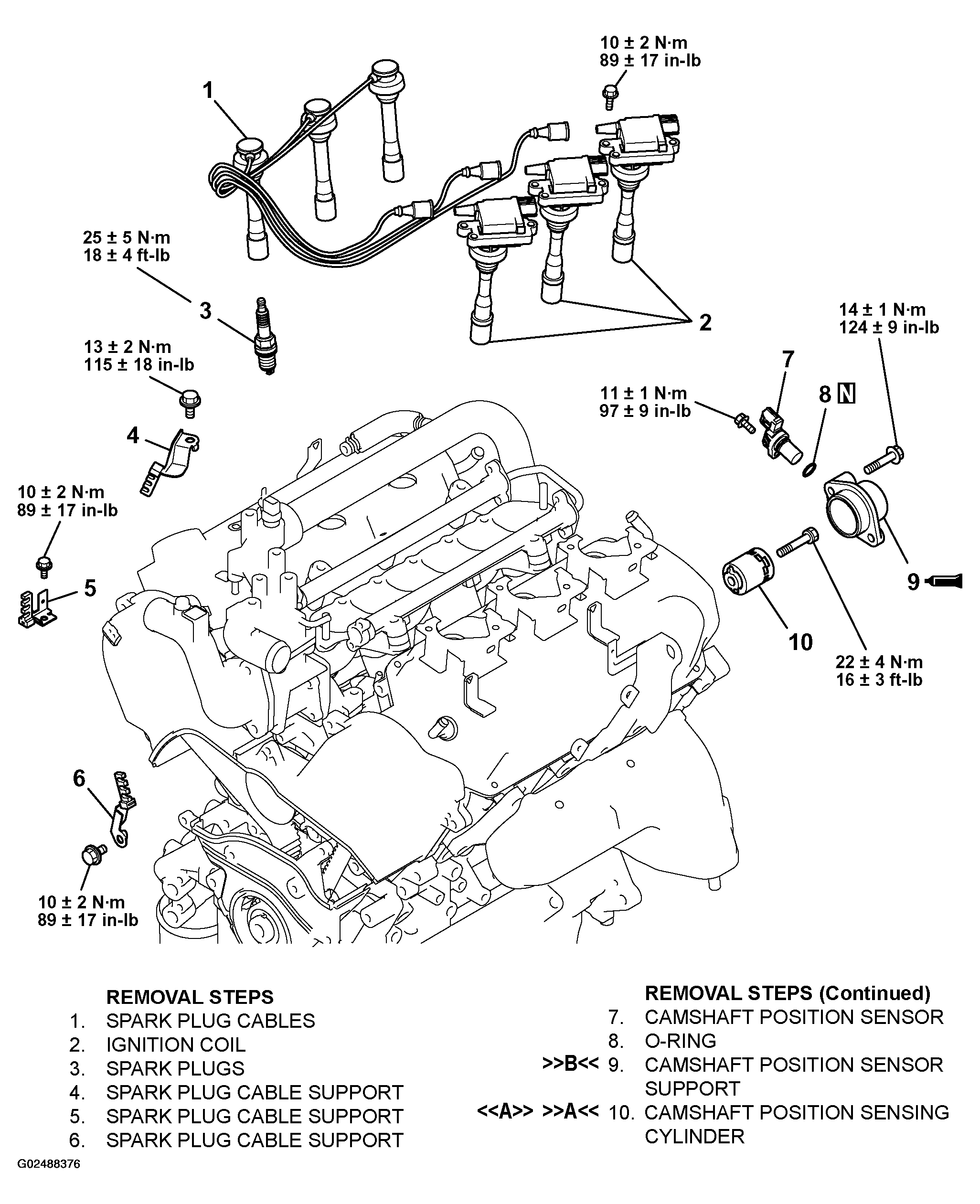

Fig 1: Exploded View Of Ignition System
G02488376Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
