Intake Manifold Plenum And Throttle Body Assembly
›
Removal And Installation
›
Notes
Removal And Installation: Notes

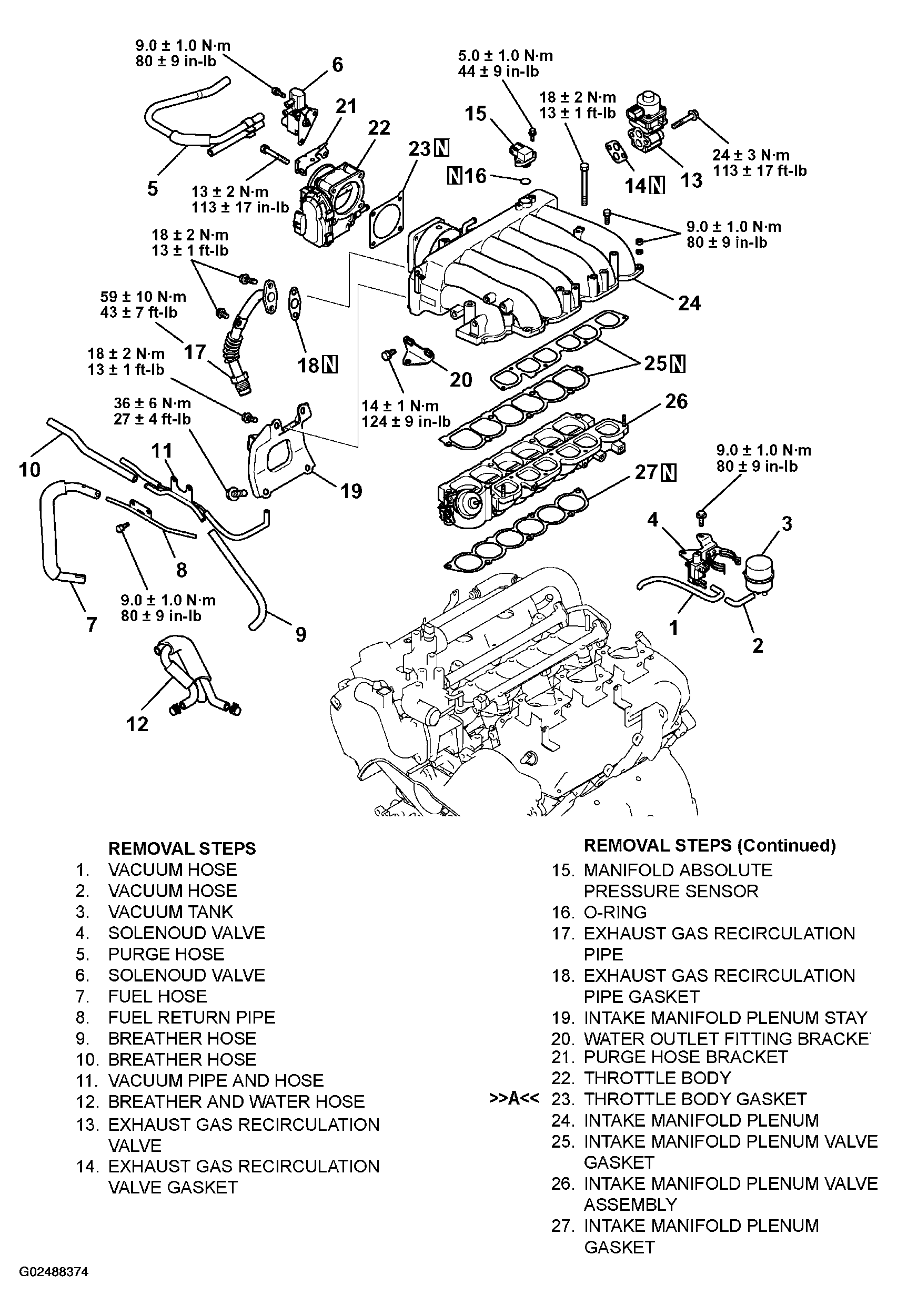

Fig 1: Exploded View And Torque Specification Of Intake Manifold Plenum And Throttle Body Assembly
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
