FixVault
Home
›
Mitsubishi
›
2005
›
Montero
›
Repair and Diagnosis
›
Engine Performance
›
System
›
Emission Control
›
Catalytic Converter
›
Removal And Installation
›
Notes
Removal And Installation: Notes

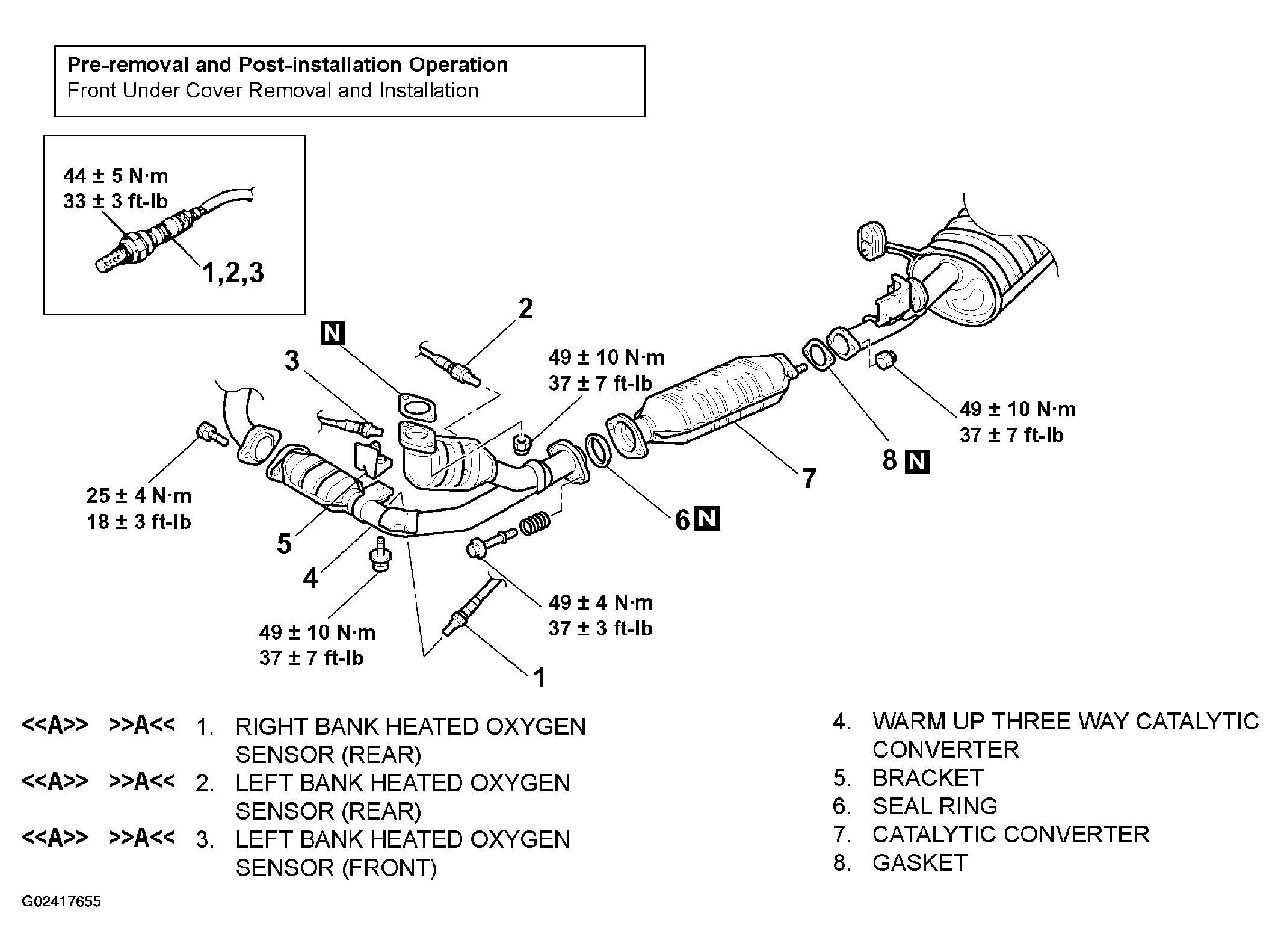

Fig 1: Removing/Installing Catalytic Converter Components
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Required Special Tool:
MD998770: Oxygen Sensor Wrench
