Removal And Installation: Notes

WARNING: This page is about a different car, the 2006 Mitsubishi Montero. However, it is still accessible from the selected car via links, so may be relevant.

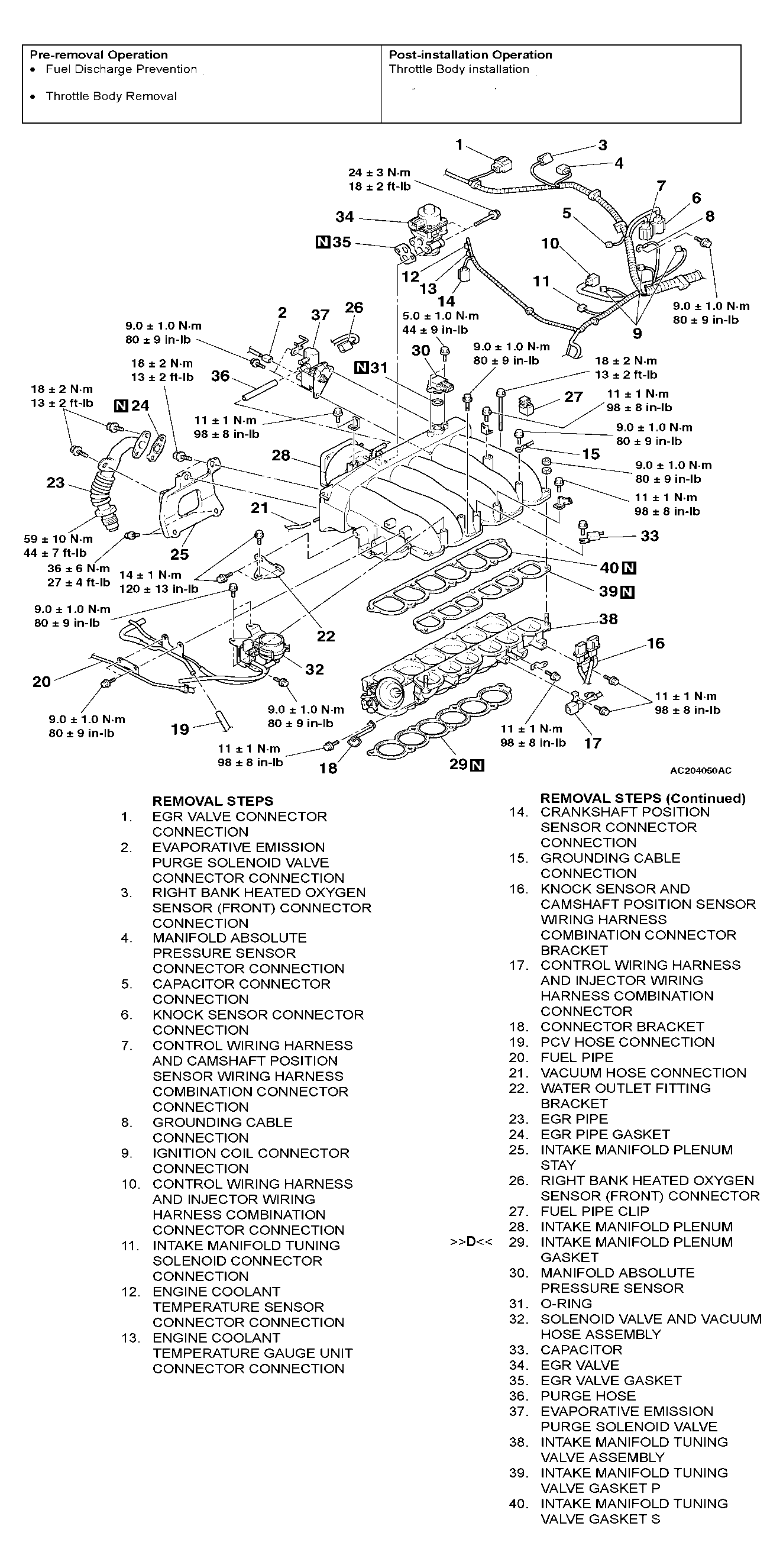

Fig 1: Exploded View Of Intake Manifold (1 Of 2)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

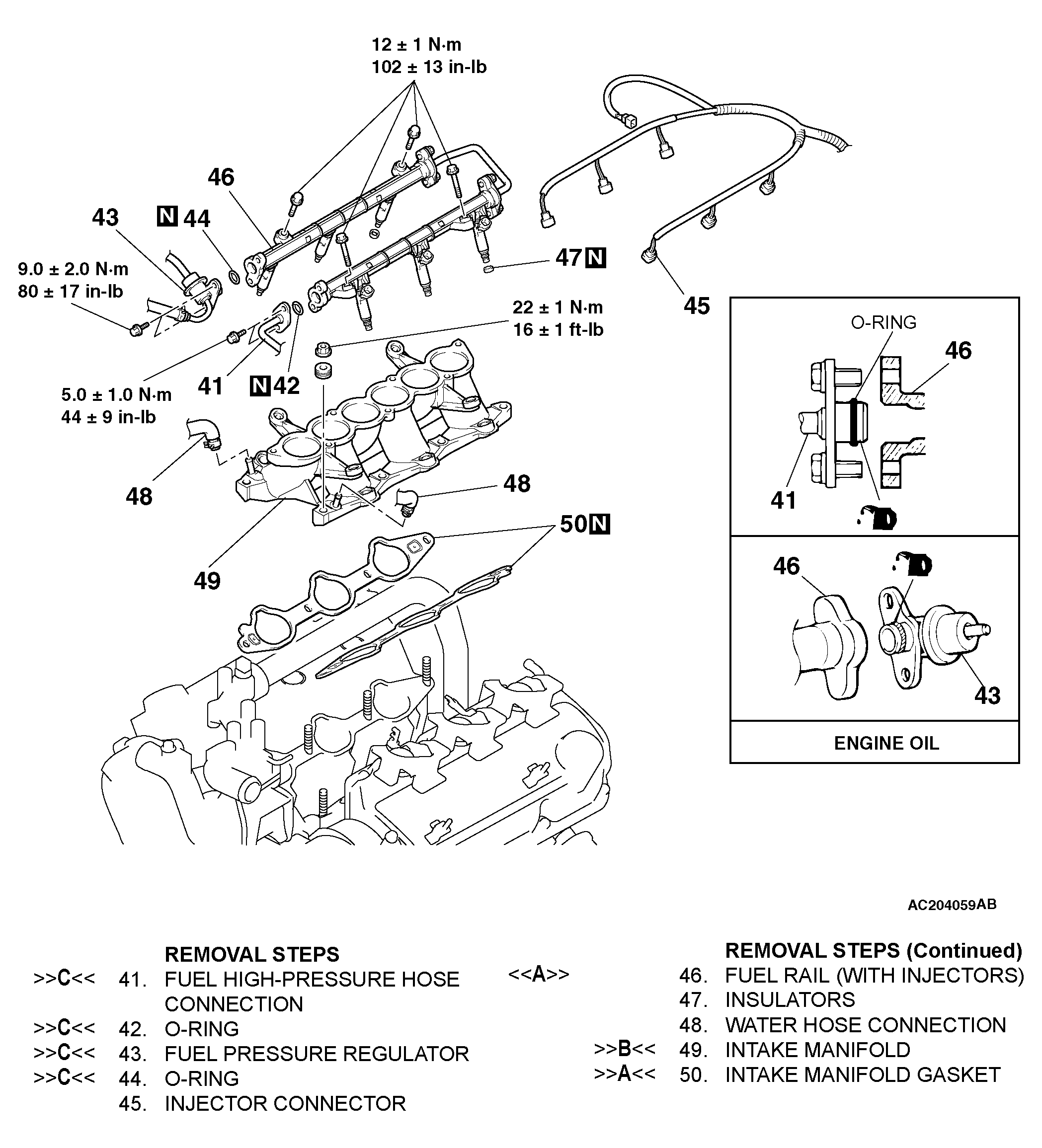

Fig 2: Exploded View Of Intake Manifold (2 Of 2)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
