Auto-Cruise Control Switch Check
WARNING: This page is about a different car, the 2006 Mitsubishi Montero. However, it is still accessible from the selected car via links, so may be relevant.

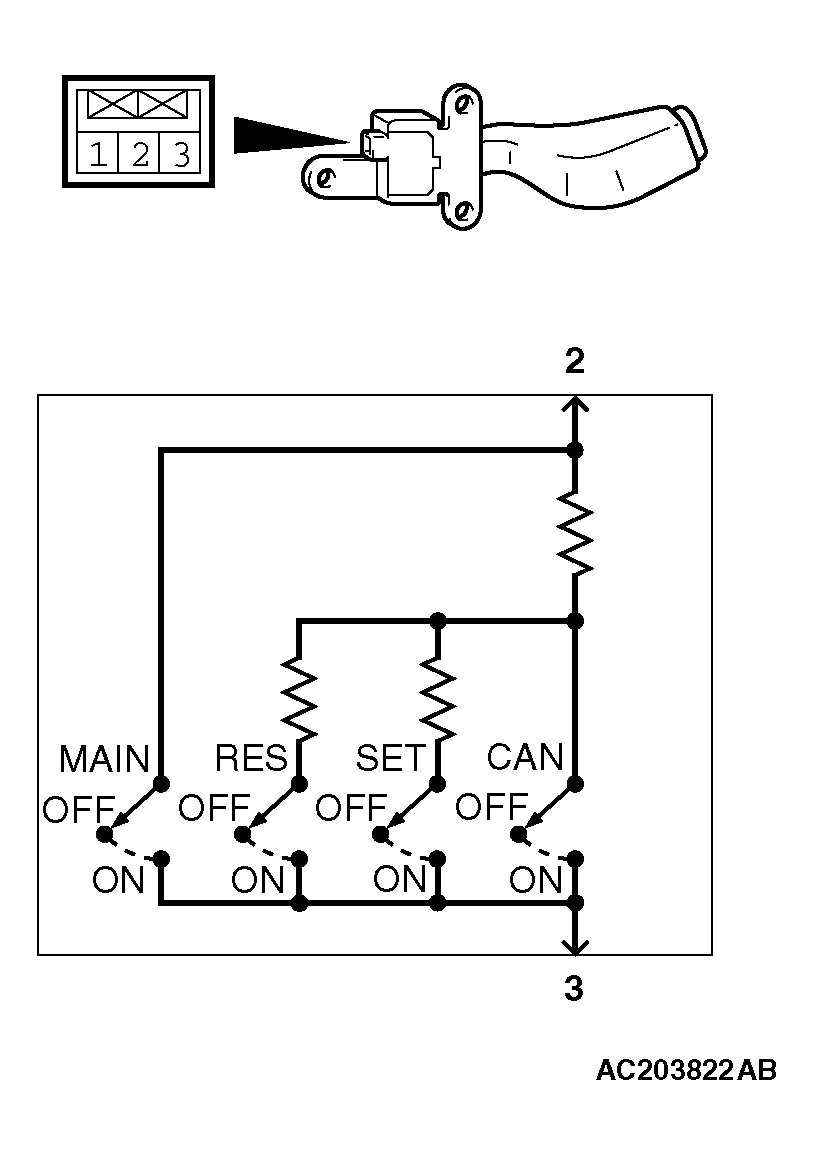

Measure the resistance between terminal 2 and terminal 3 when each of the "SET," "RESUME," "CANCEL" and MAIN switches is pressed. If the values measured at the time correspond to those in the table below, the resistance values are correct.
AUTO-CRUISE CONTROL SWITCH SPECIFIED CONDITIONS
| SWITCH POSITION | SPECIFIED CONDITION |
|---|---|
| MAIN switch "OFF" | Open circuit |
| MAIN switch "ON" | Less than 2 ohms |
| "CANCEL" switch ON | Approximately 100 Ω |
| "RESUME" switch ON | Approximately 887 Ω |
| "SET" switch ON | Approximately 300 Ω |
