Stoplight Switch Check
WARNING: This page is about a different car, the 2006 Mitsubishi Montero. However, it is still accessible from the selected car via links, so may be relevant.

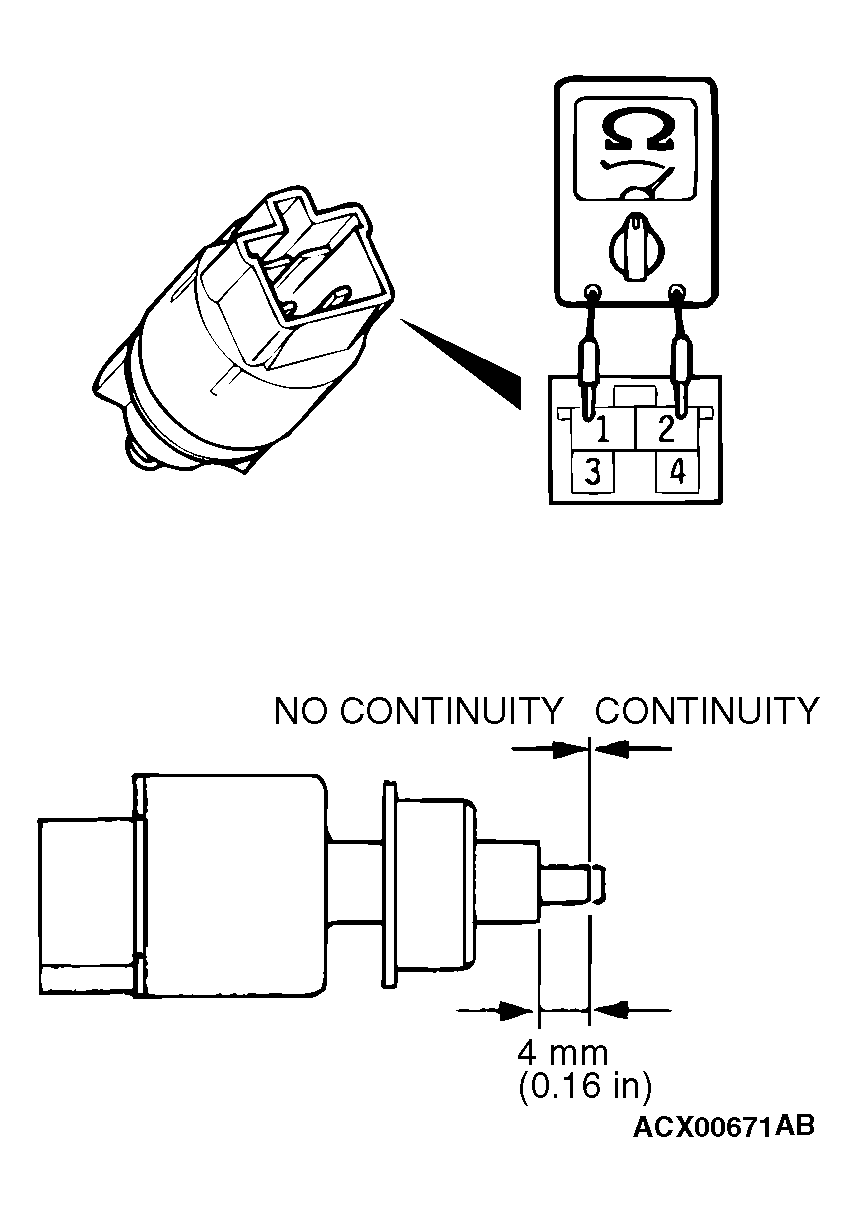

- Connect an ohmmeter between the stoplight switch connector terminals.
- There should be no continuity between the terminals when the plunger is pushed in as shown in illustration. There should be continuity when it is released.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
TESTER CONNECTION AND CONDITIONTESTER CONNECTION PLUNGER SPECIFIED CONDITION 1 - 2 IN Open circuit OUT Less than 2 ohms
