Instrument Panel Assembly
›
Disassembly And Assembly
Disassembly And Assembly

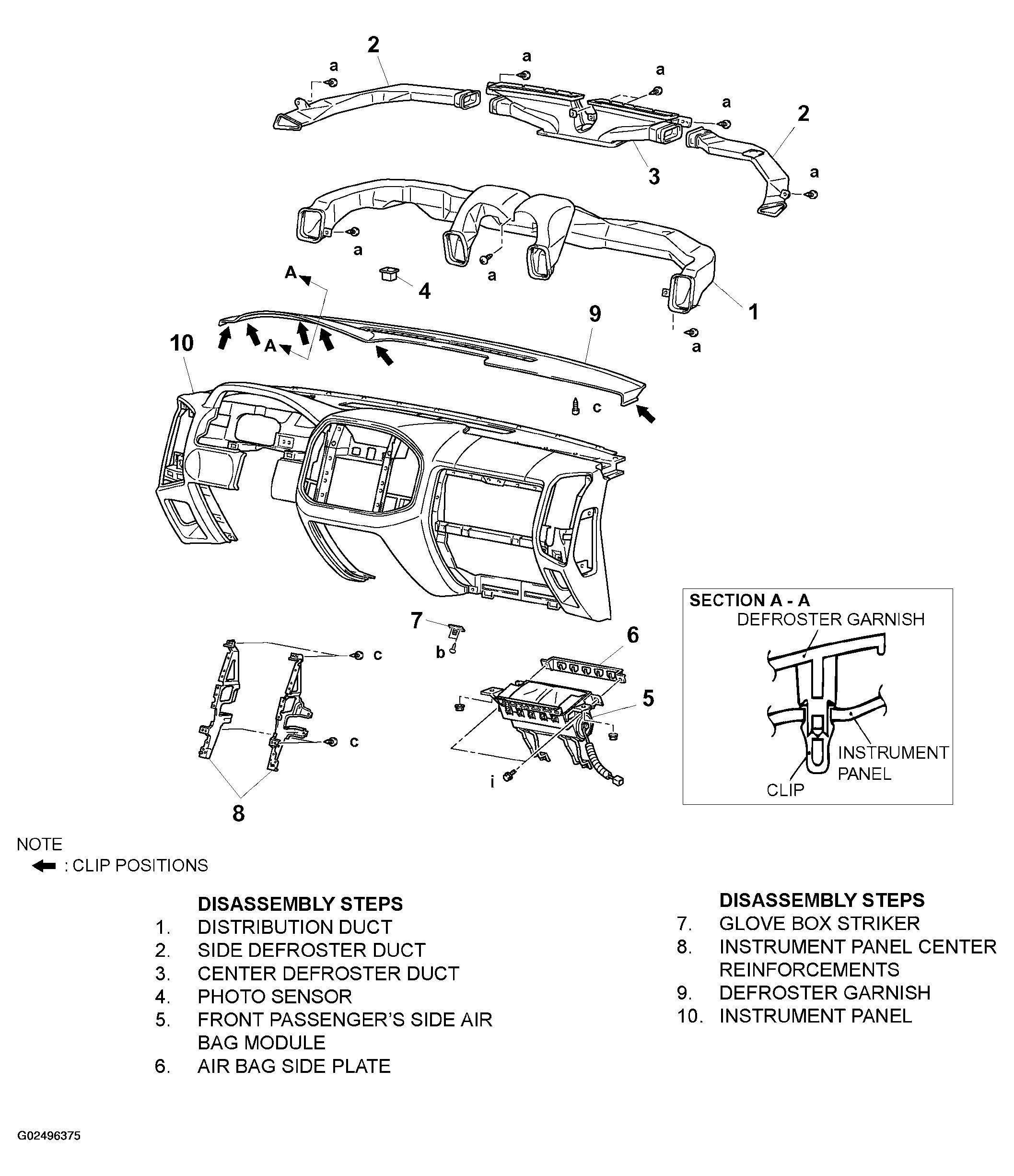

Fig 1: Disassembling/Assembling Interior Instrument Panel Assembly
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
