FixVault
Home
›
Mitsubishi
›
2005
›
Montero
›
Repair and Diagnosis
›
Restraints
›
Passive Restraints
›
Interior
›
Third Seat Assembly
›
Disassembly And Assembly
›
Notes
Disassembly And Assembly: Notes

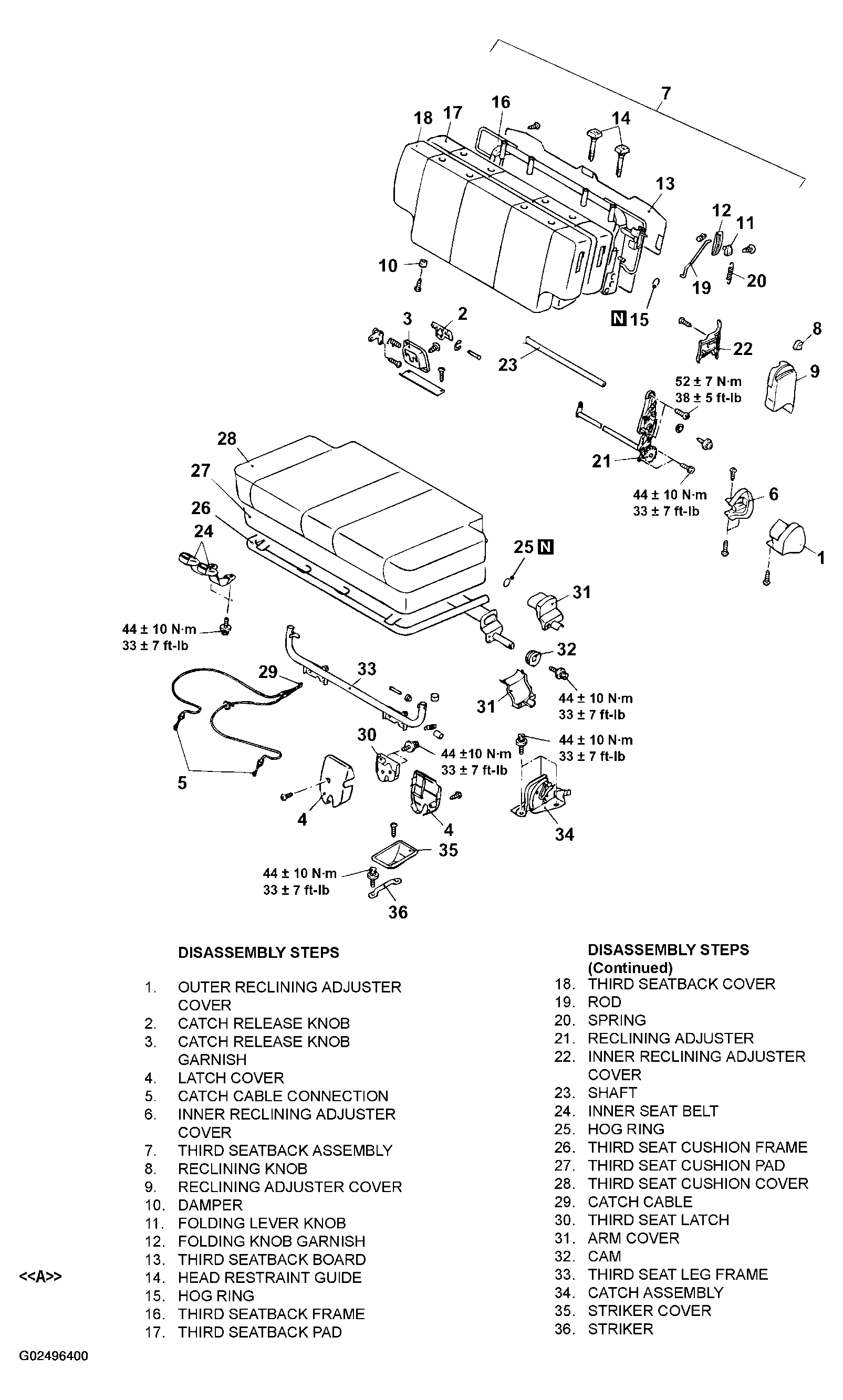

Fig 1: Disassembling/Assembling Third Seat Assembly
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
