Assembly Service Point: Notes

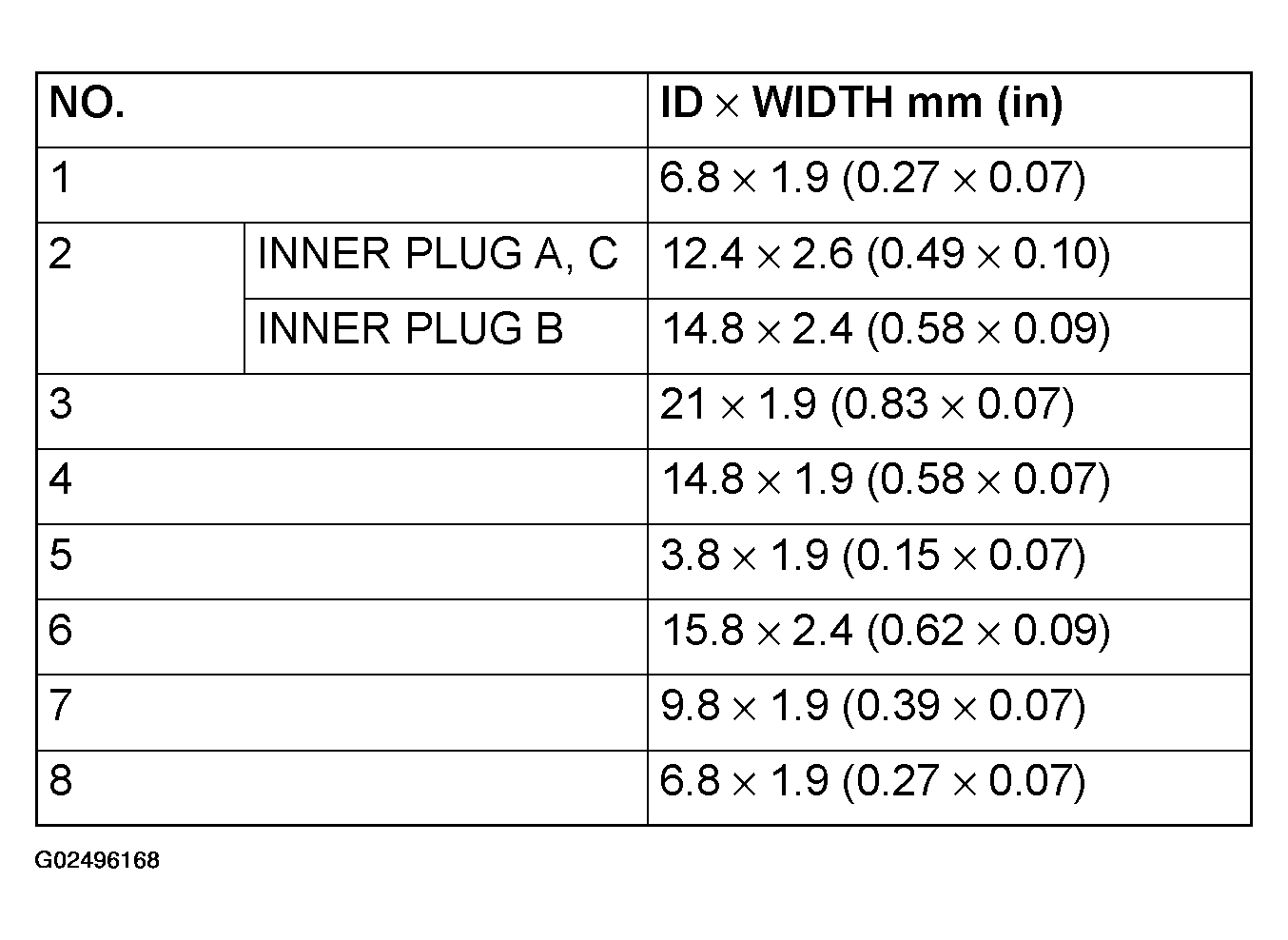

Fig 1: O-Rings Specification
G02496168Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

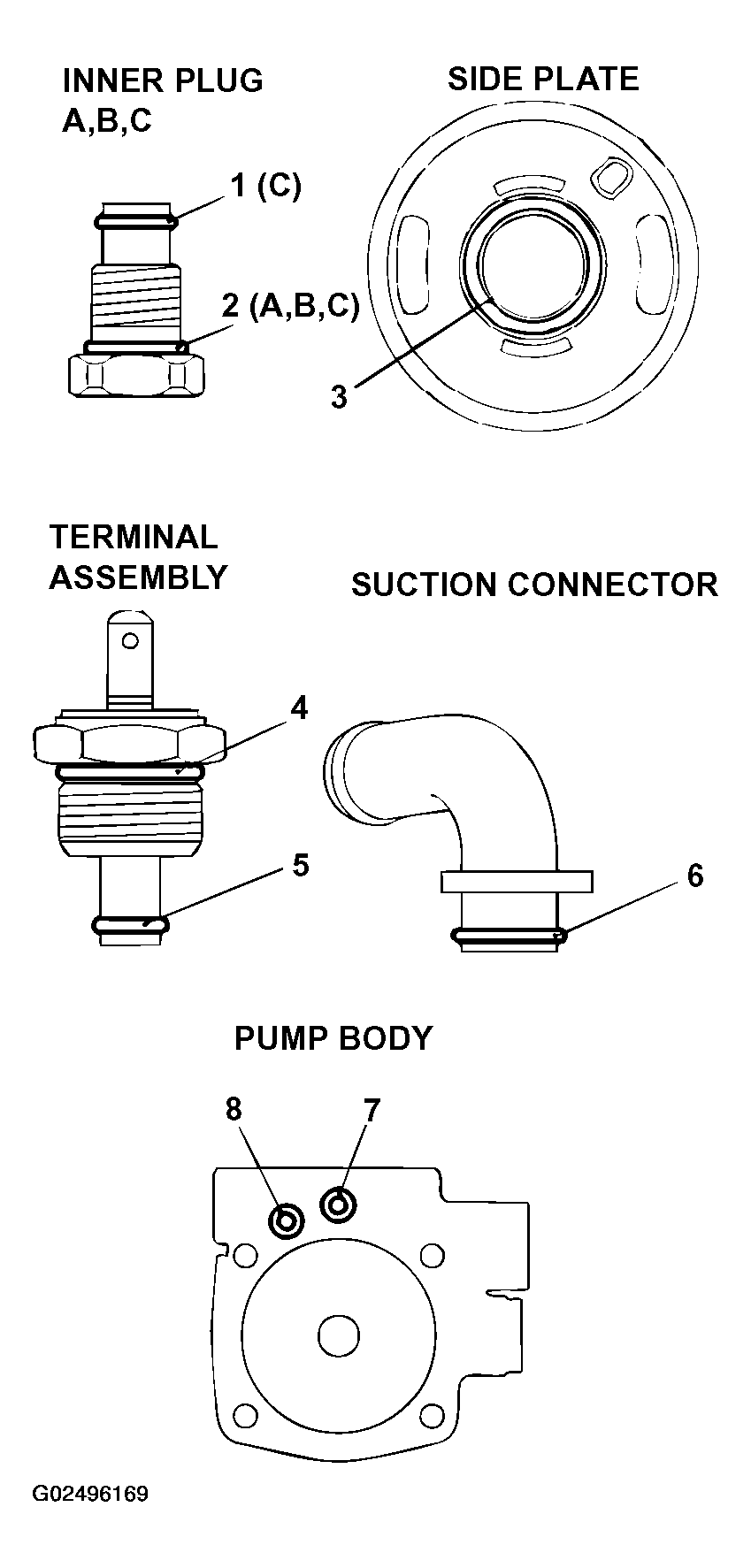

Fig 2: Identifying O-Rings
G02496169Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
