General Description
›
Function Element Table
Function Element Table

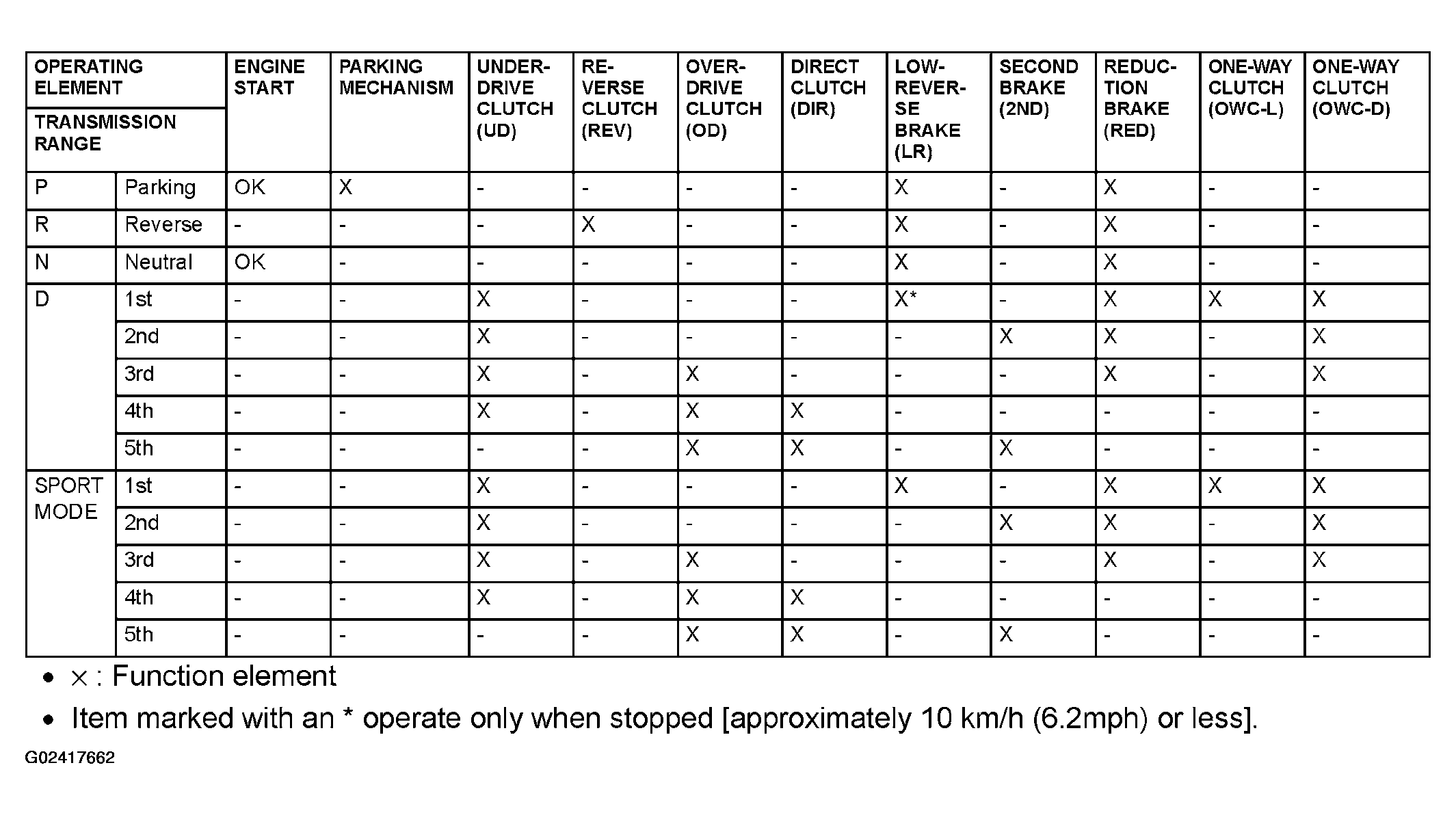

Fig 1: Function Element Table
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Item marked with an* operate only when stopped [approximately 10 km/h (6.2 mph) or less].
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
