2WD/4WD Detection Switch Check

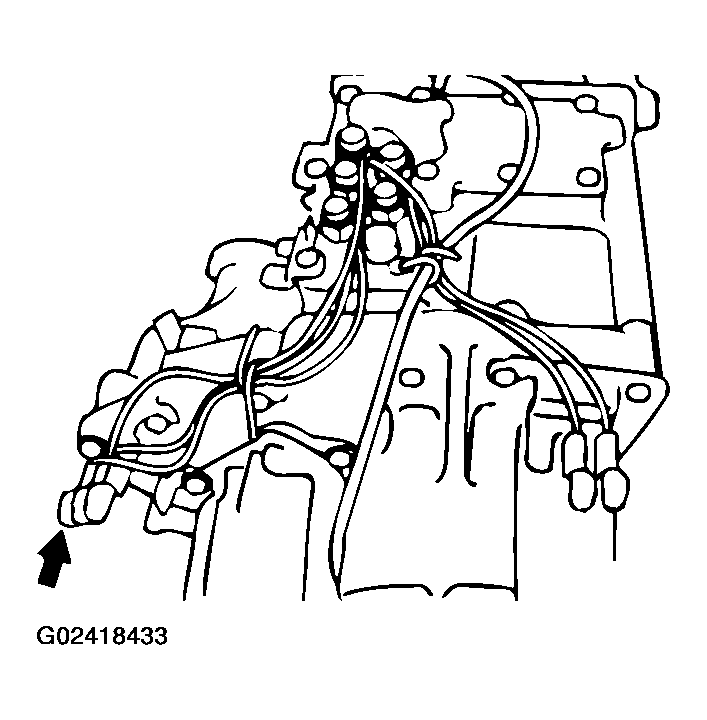

Check for continuity between the terminal of the black connector located on the transfer case.
2WD/4WD DETECTION SWITCH CHECK
| TRANSFER CONTROL LEVER POSITION |
CONTINUITY |
| 2H, 4H |
Less than 2 ohms |
| 4HLc, 4LLc |
Open circuit |
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
