4H Detection Switch Check

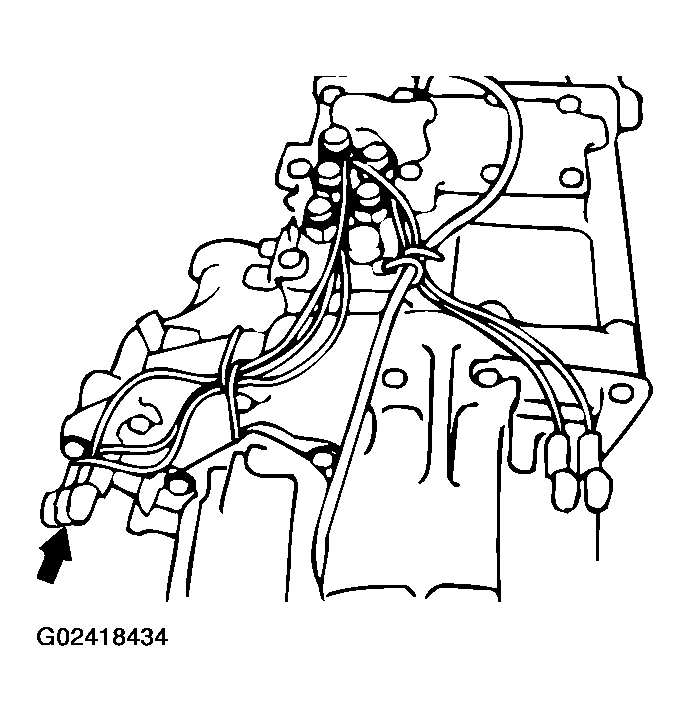

Check for continuity between the terminal of the white connector located on the transfer case.
4H DETECTION SWITCH CHECK
| TRANSFER CONTROL LEVER POSITION |
CONTINUITY |
| 4H, 4HLc |
Less than 2 ohms |
| 2H, 4LLc |
Open circuit |
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
