4LLC Detection Switch Check

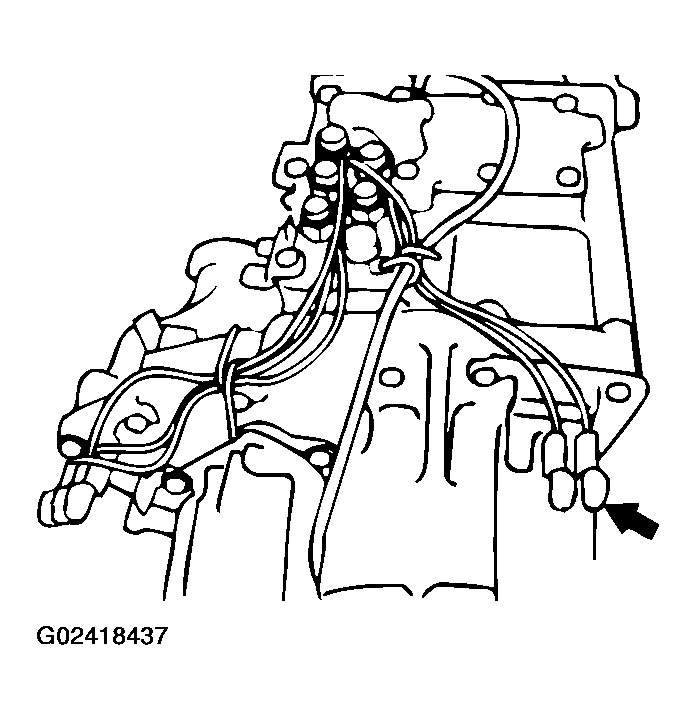

Check for continuity between the terminal of the brown connector located on the transfer case.
4LLC DETECTION SWITCH CHECK
| TRANSFER CONTROL LEVER POSITION |
CONTINUITY |
| 4LLc |
Less than 2 ohms |
| Other than 4LLc |
Open circuit |
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
