Transmission Control: Inspection

TRANSFER SHIFT LEVER SWITCH CONTINUITY CHECK

SWITCH POSITION	MEASUREMENT TERMINAL
2H	1 - 3
4H	1 - 4
4HLc	1 - 5
4LLc	1 - 2

Fig 1: Checking Transfer Shift Lever Switch

G02418460

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

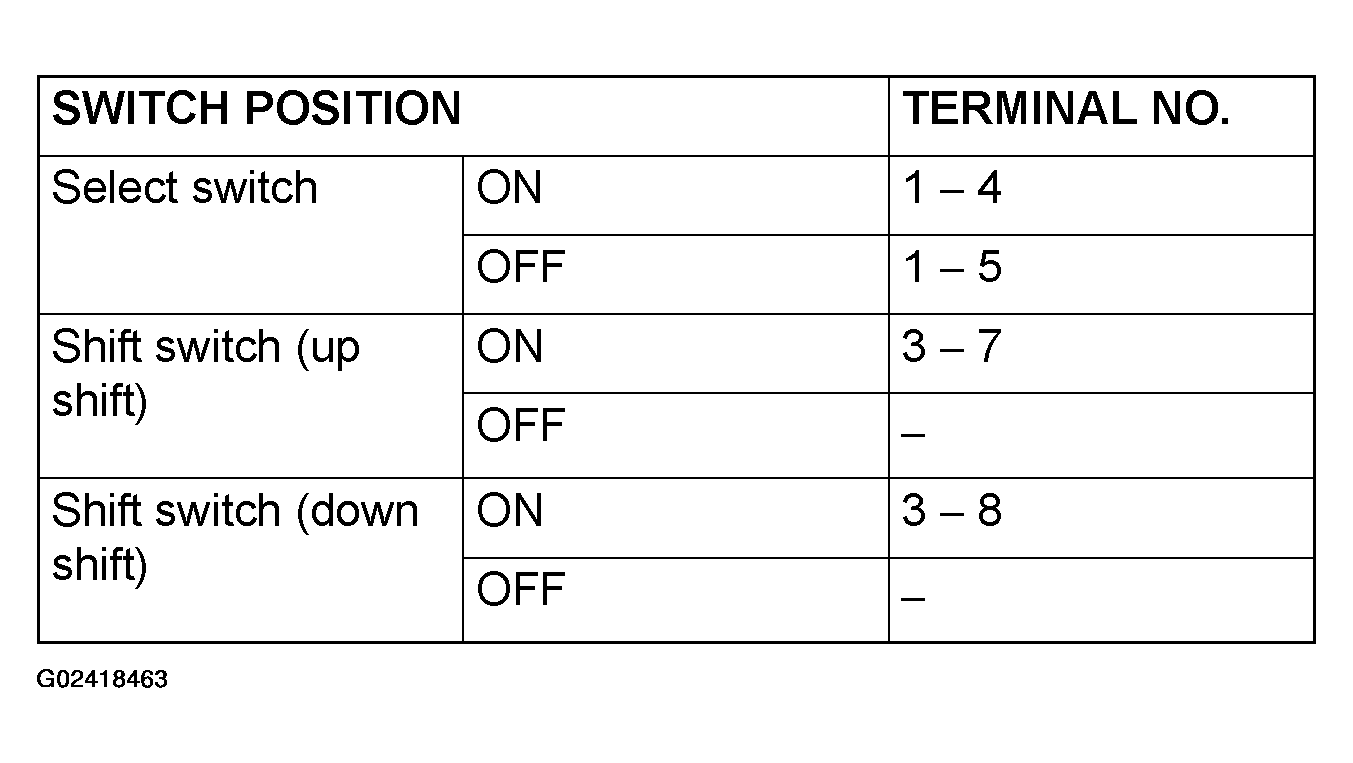

Fig 1: Shift Switch Assembly Continuity Table

G02418463

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

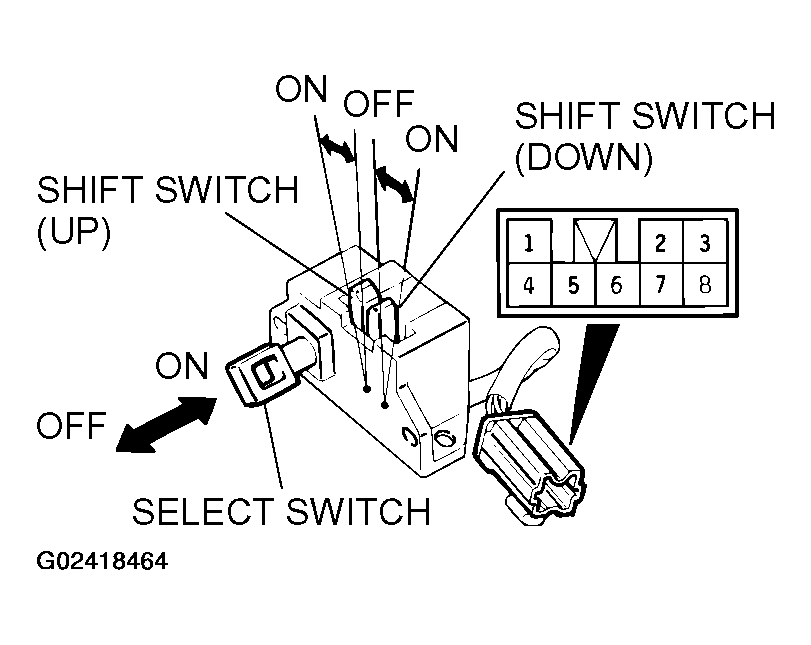

Fig 2: Checking Shift Switch Assembly

G02418464

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
