Removal And Installation: Notes

WARNING: When removing and installing the transmission control cable and shift lock cable unit, be careful not to hit the SRS-ECU.

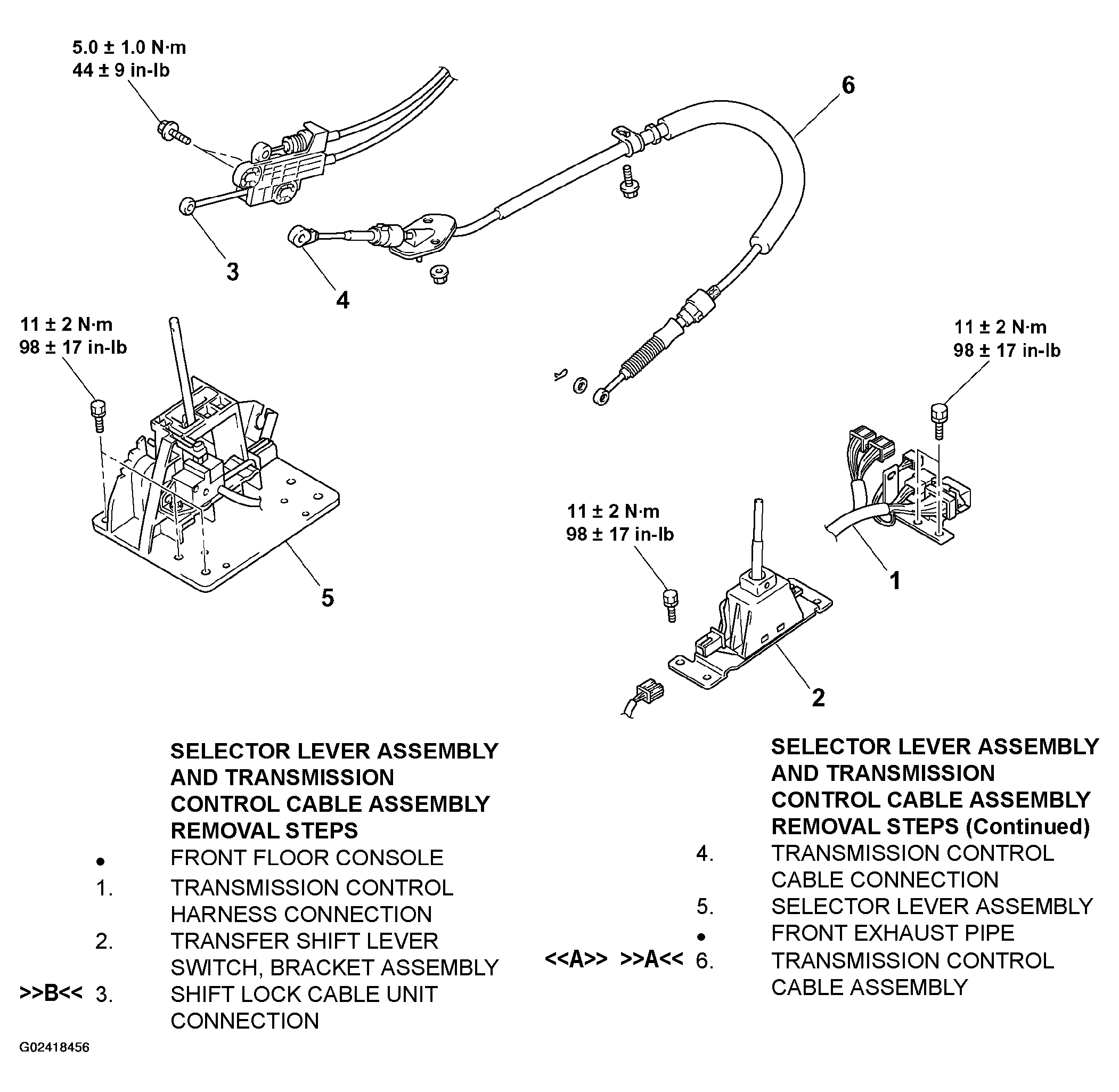

Fig 1: Removing/Installing Transmission Control Components (1 Of 2)
G02418456Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

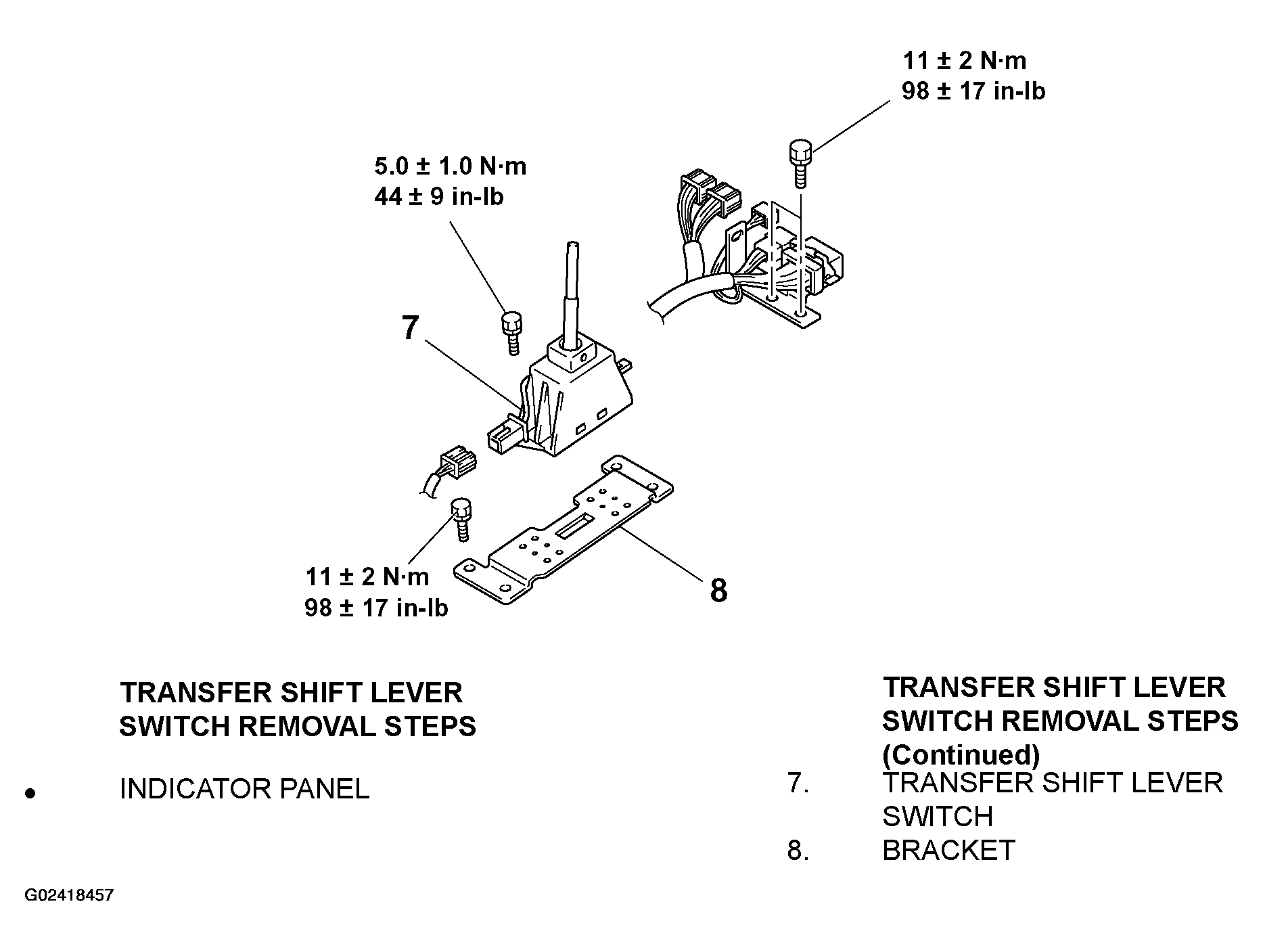

Fig 2: Removing/Installing Transmission Control Components (2 Of 2)
G02418457Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
