General Information
›
Hydraulic Control System
Hydraulic Control System

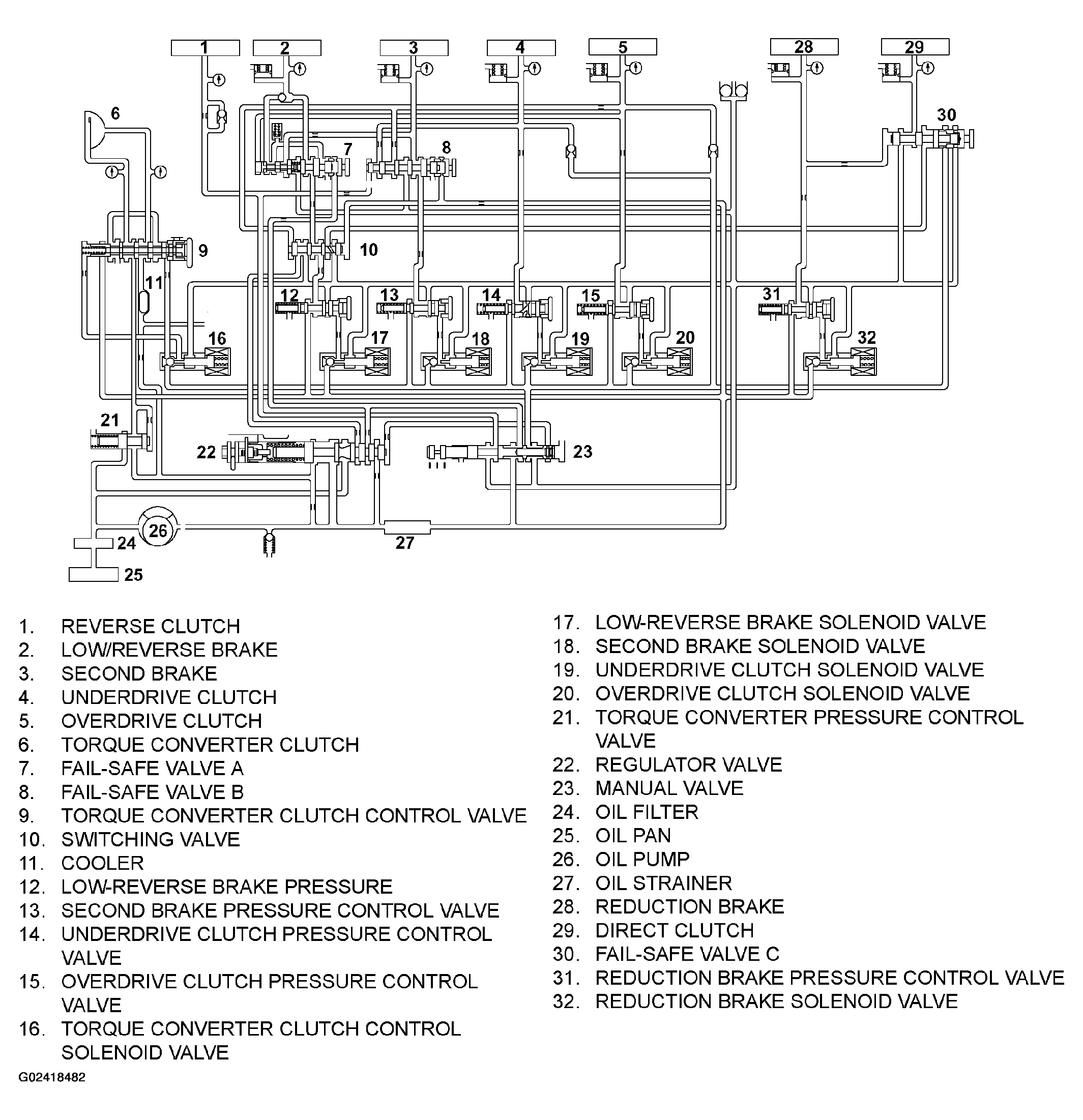

Fig 1: Identifying Hydraulic Control System
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
