>> W << 2-4WD Detection Switch/4H Detection Switch/Center Differential Lock Detection Switch/2WD Detection Switch/4LLC Detection Switch Installation

Install with care. Do not make a mistake when locating each switch.

CONNECTOR COLOR AND TUBE COLOR SPECIFICATION

DETECTION SWITCH NAME		TUBE COLOR	CONNECTOR COLOR
A	4LLC	Black	Brown
B	2WD	Black	Black
C	CENTER DIFFERENTIAL LOCK	Blue	Brown
D	4H	Green	White
E	2-4WD	Blue	Black

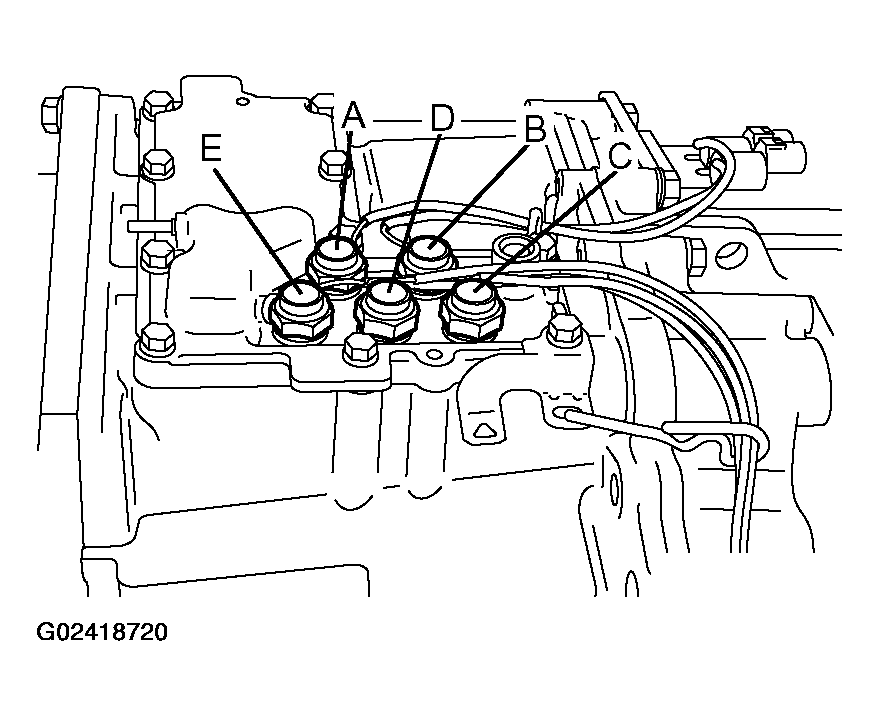

Fig 1: Locating Switch Identification

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
