Disassembly And Assembly: Notes

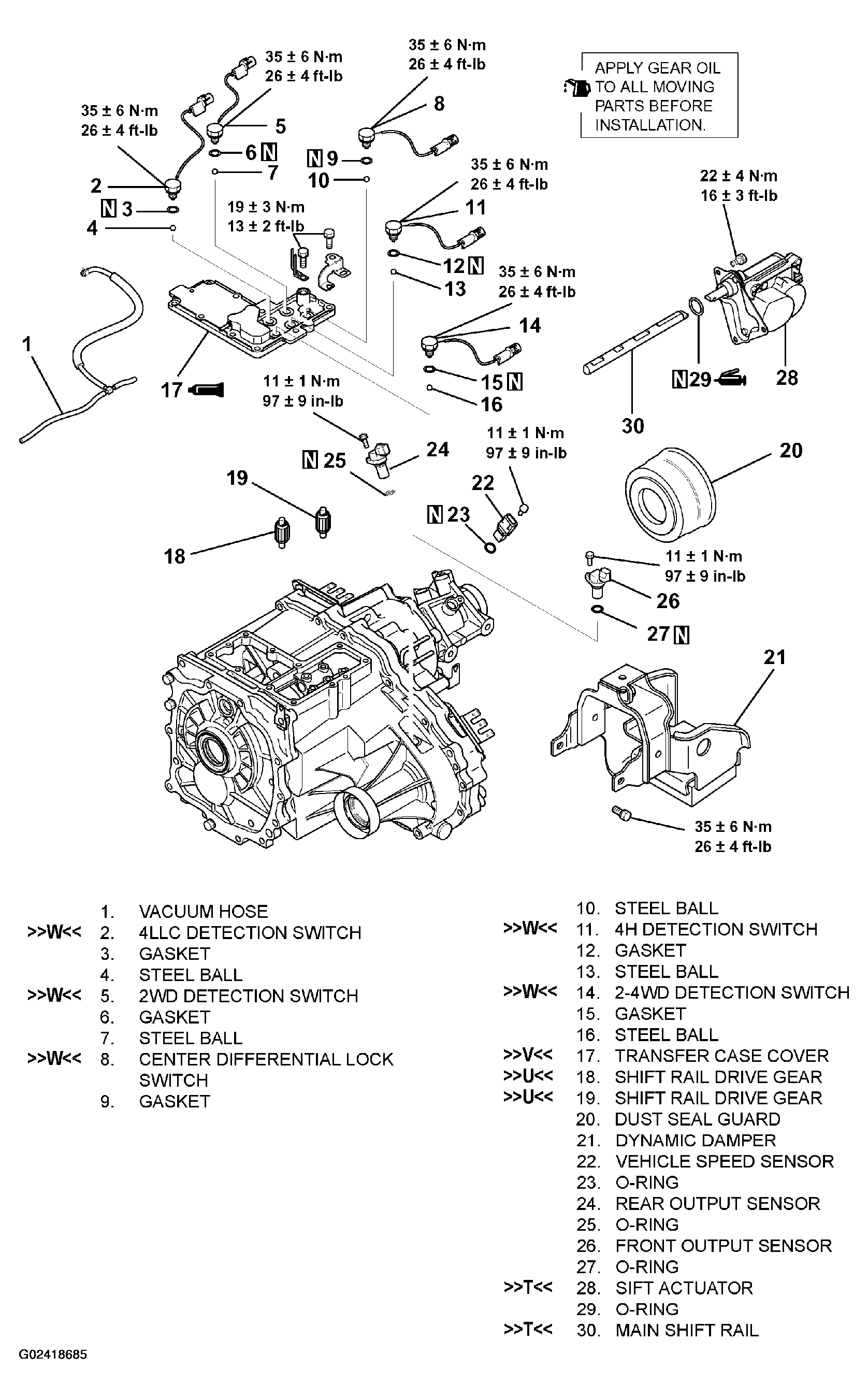

Fig 1: Exploded View Of Transfer (1 Of 3)
G02418685Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

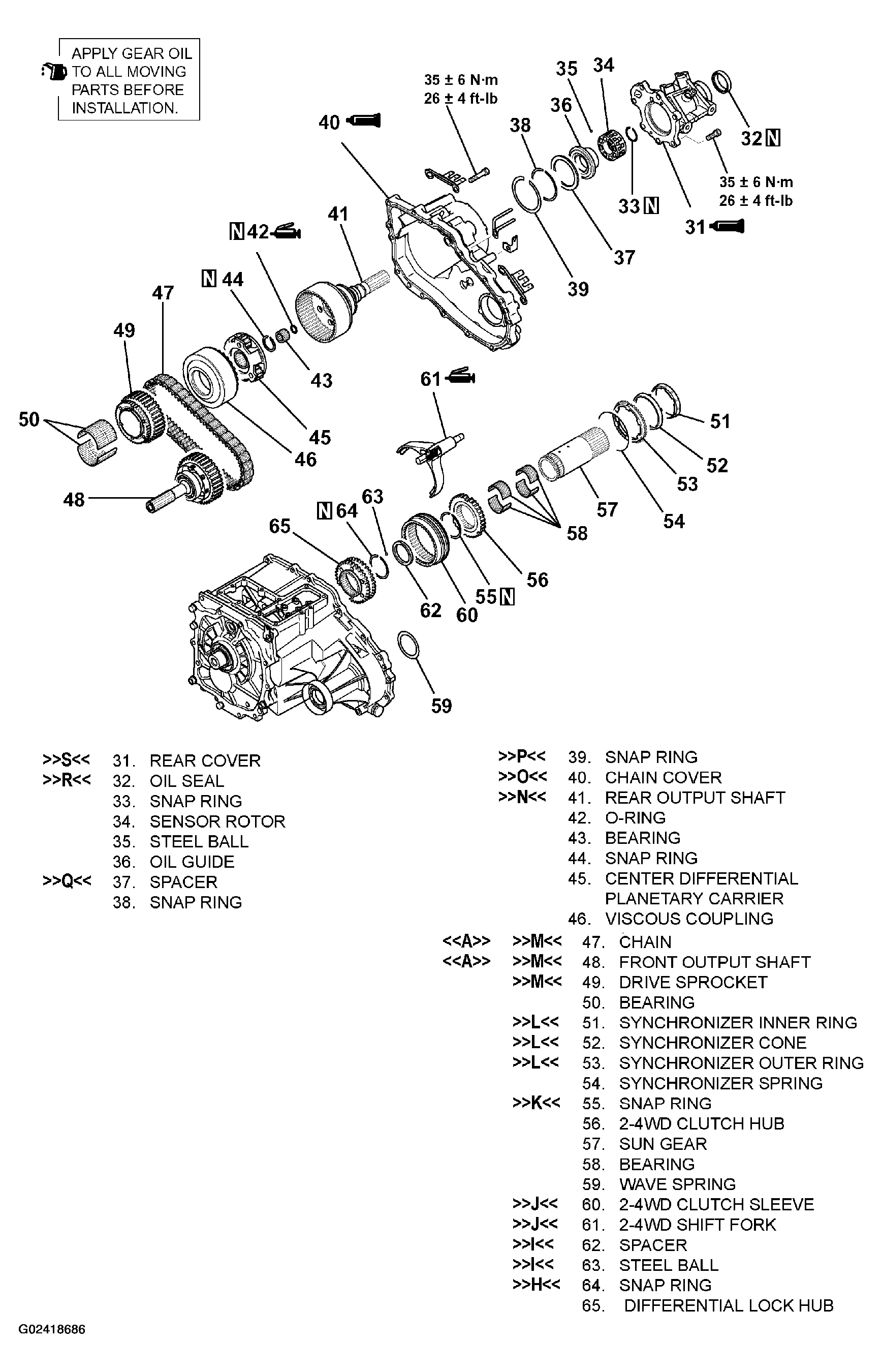

Fig 2: Exploded View Of Transfer (2 Of 3)
G02418686Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

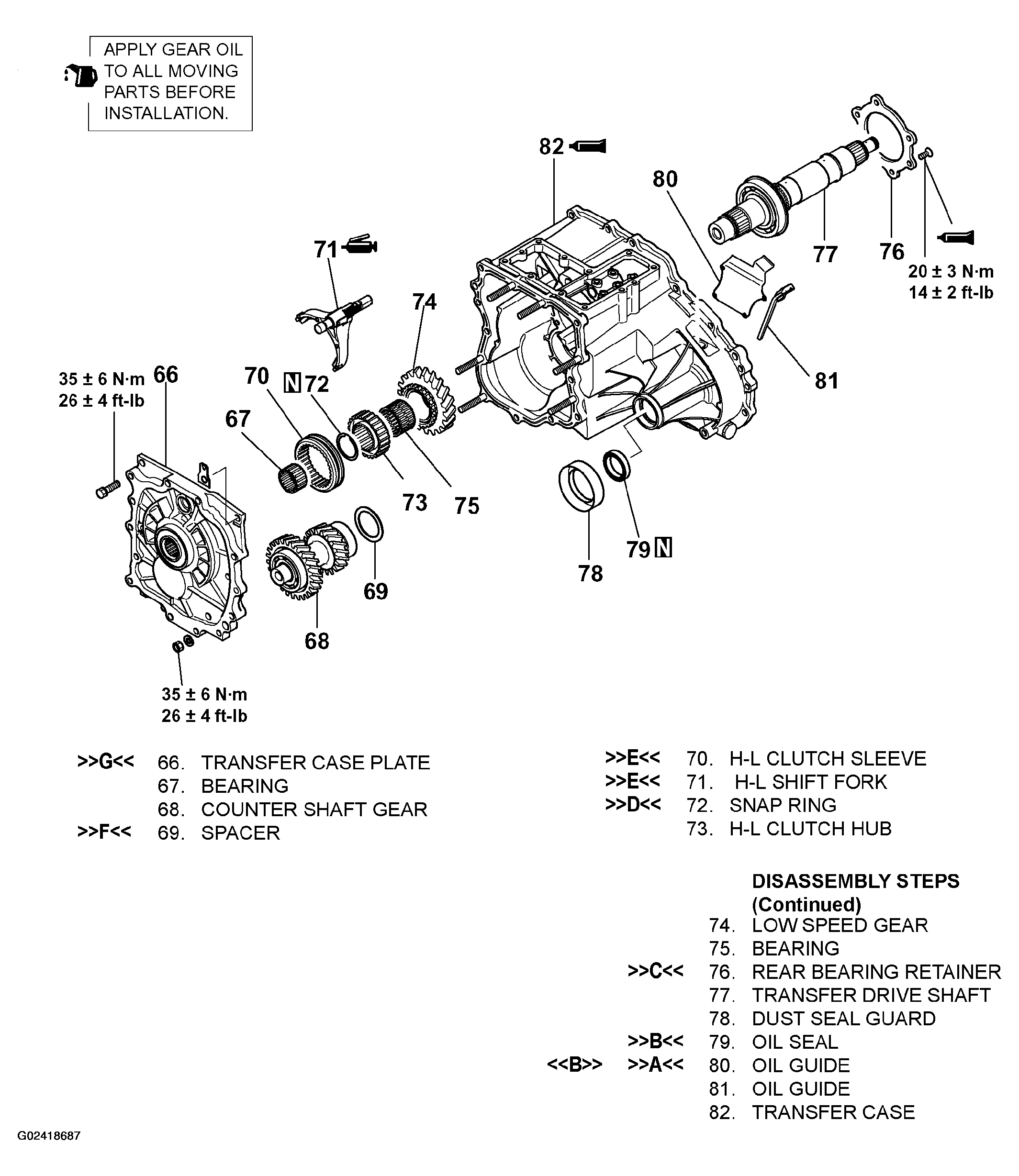

Fig 3: Exploded View Of Transfer (3 Of 3)
G02418687Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required special tools:
