Combination Meter Assembly And Vehicle Speed Sensor
›
Disassembly And Assembly
Disassembly And Assembly

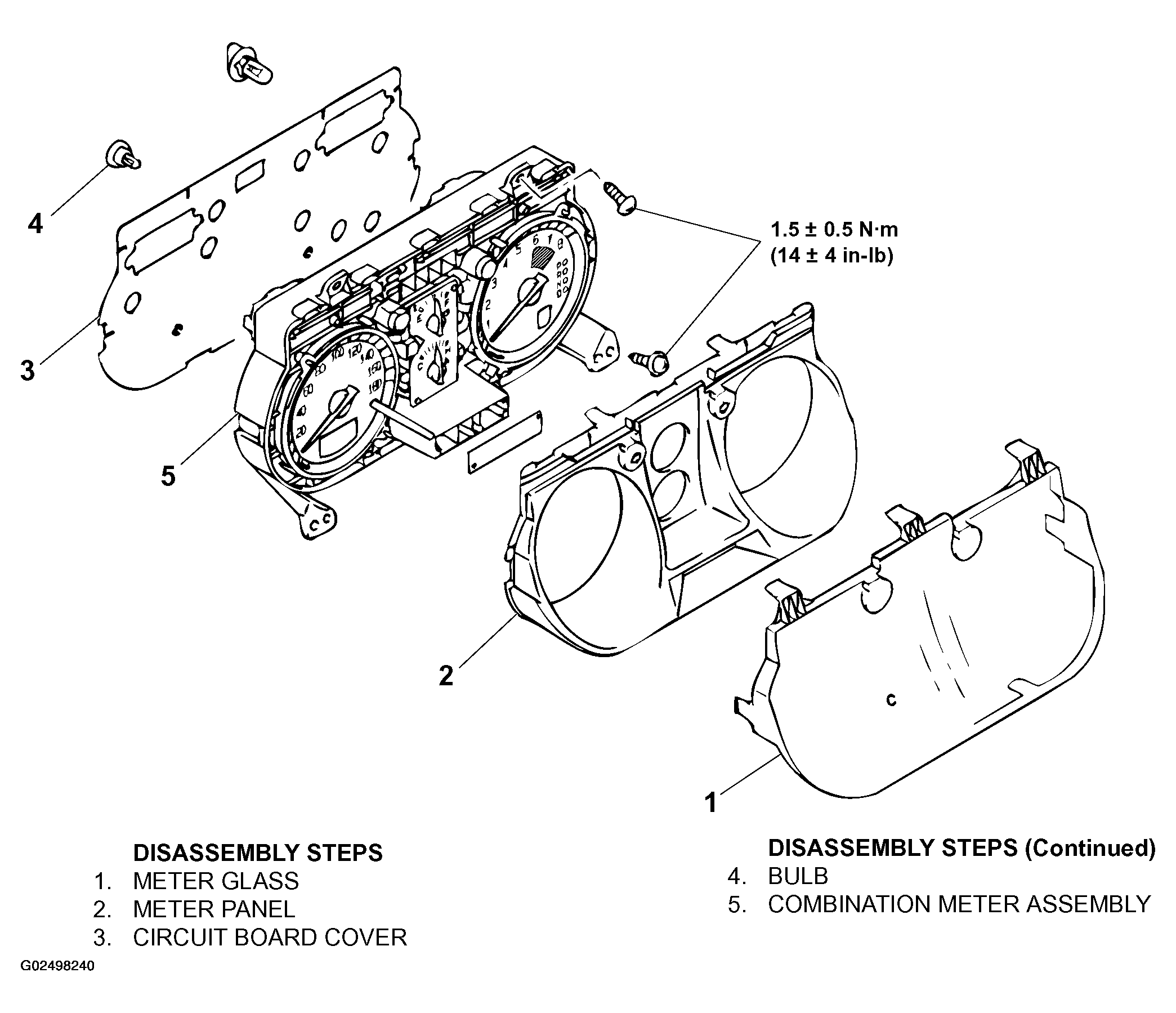

Fig 1: Disassembling/Assembling Combination Meter Assembly And Vehicle Speed Sensor
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
