Fuel Level Sensor Float Height

Move the float and measure height A at point "F" (highest) and B at point "E" (lowest) with the float arm touching stopper.
1. Standard value < FUEL PUMP MODULE & FUEL LEVEL SENSOR > :
  - A: 36.7 mm (1.44 inches)
  - B: 150 mm (5.91 inches)
2. Standard value < FUEL LEVEL SENSOR > :
  - A: 20.8 mm (0.82 inch)
  - B: 193.8 mm (7.63 inches)
Adjust the float arm to the standard value, then go to the thermistor check.

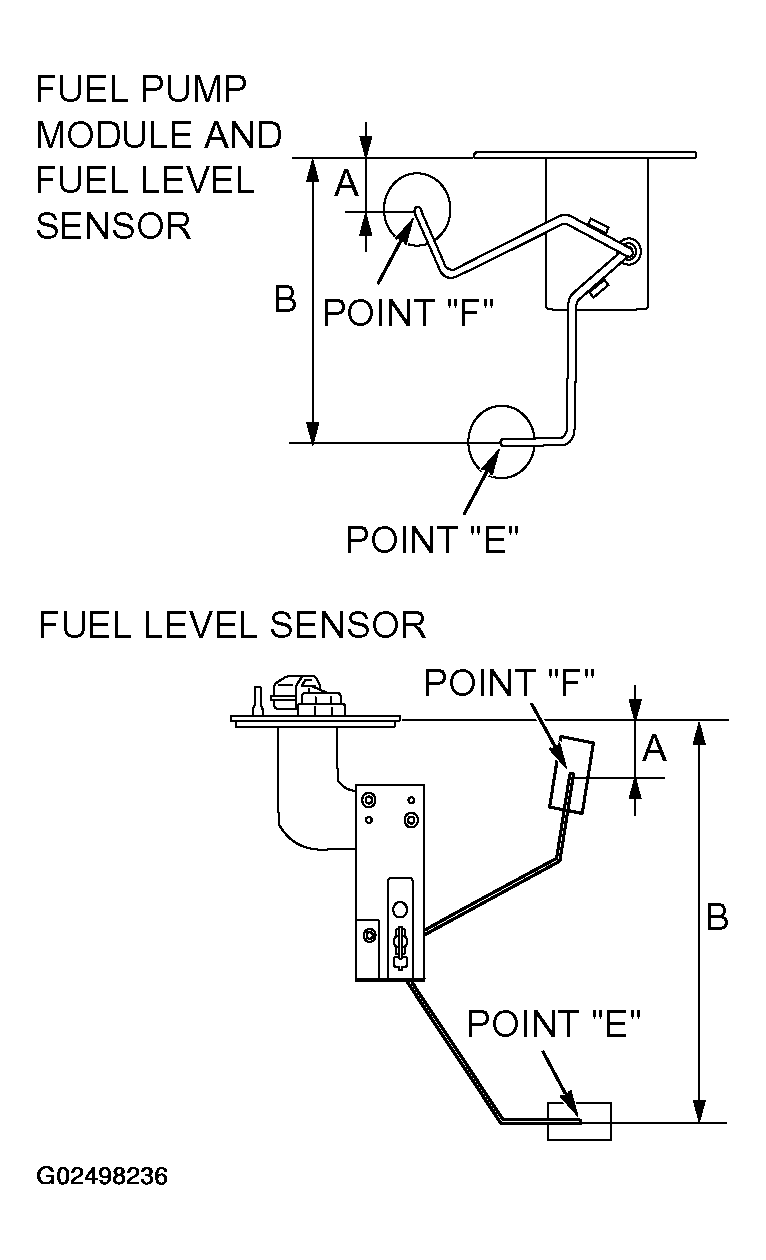

Fig 1: Measuring Fuel Level Sensor Float Height
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
