Removal And Installation: Notes

CAUTION: *: indicates parts which should be temporarily tightened, and then fully tightened with the engine weight applied on the vehicle body.

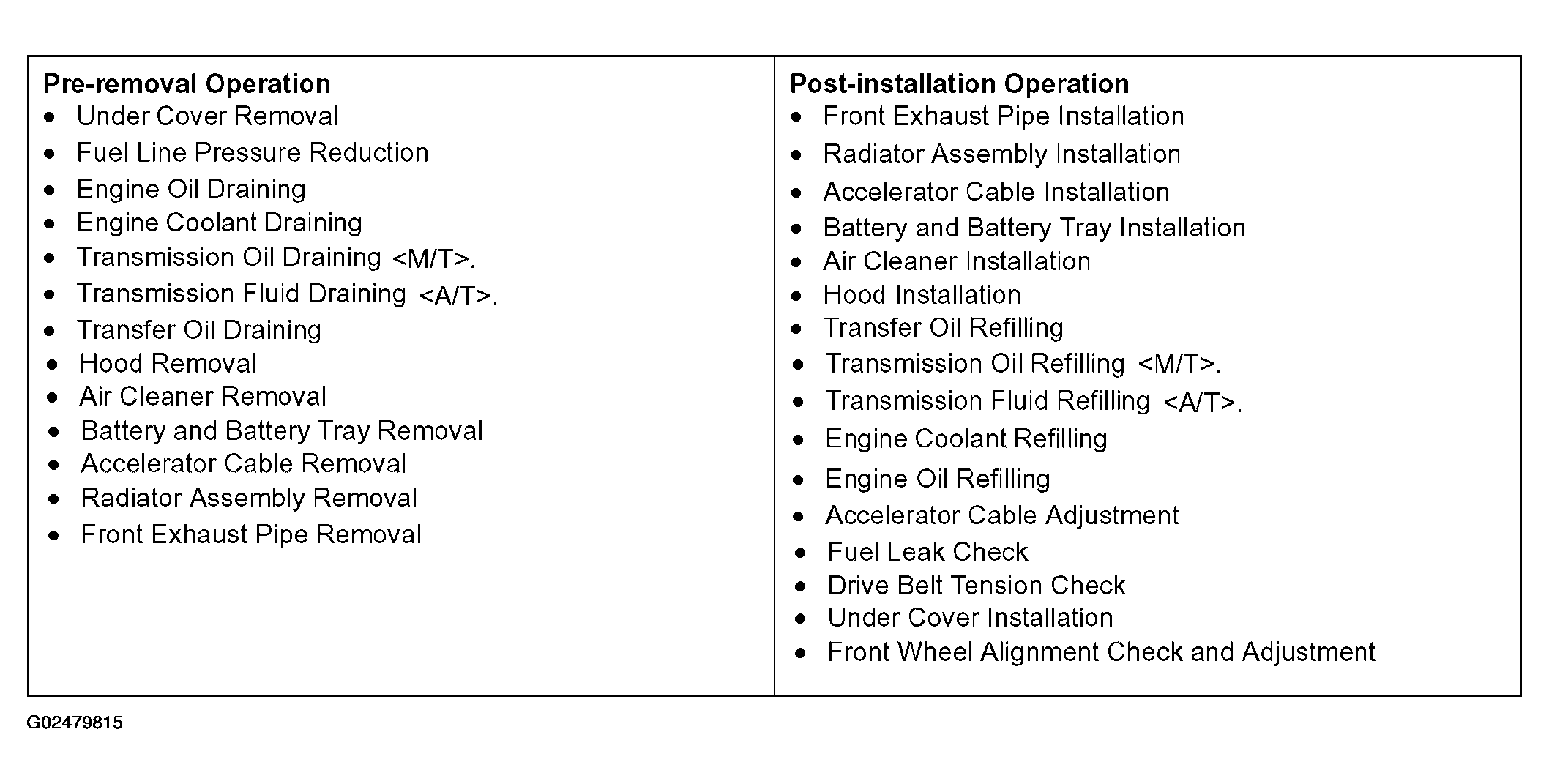

Fig 1: Engine Assembly Removal And Installation Steps Chart
G02479815Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

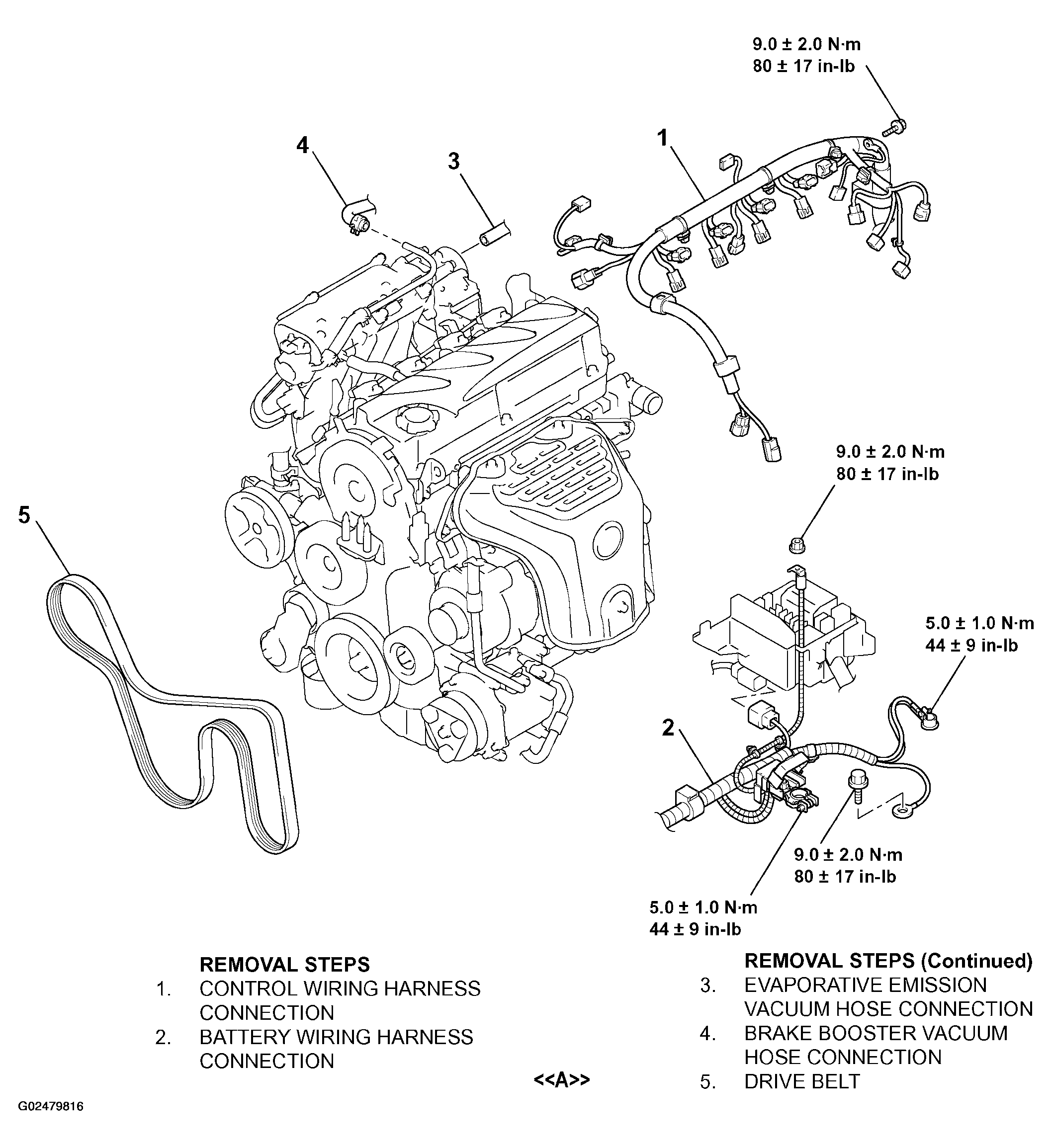

Fig 2: Removing Engine Assembly (1 Of 2)
G02479816Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

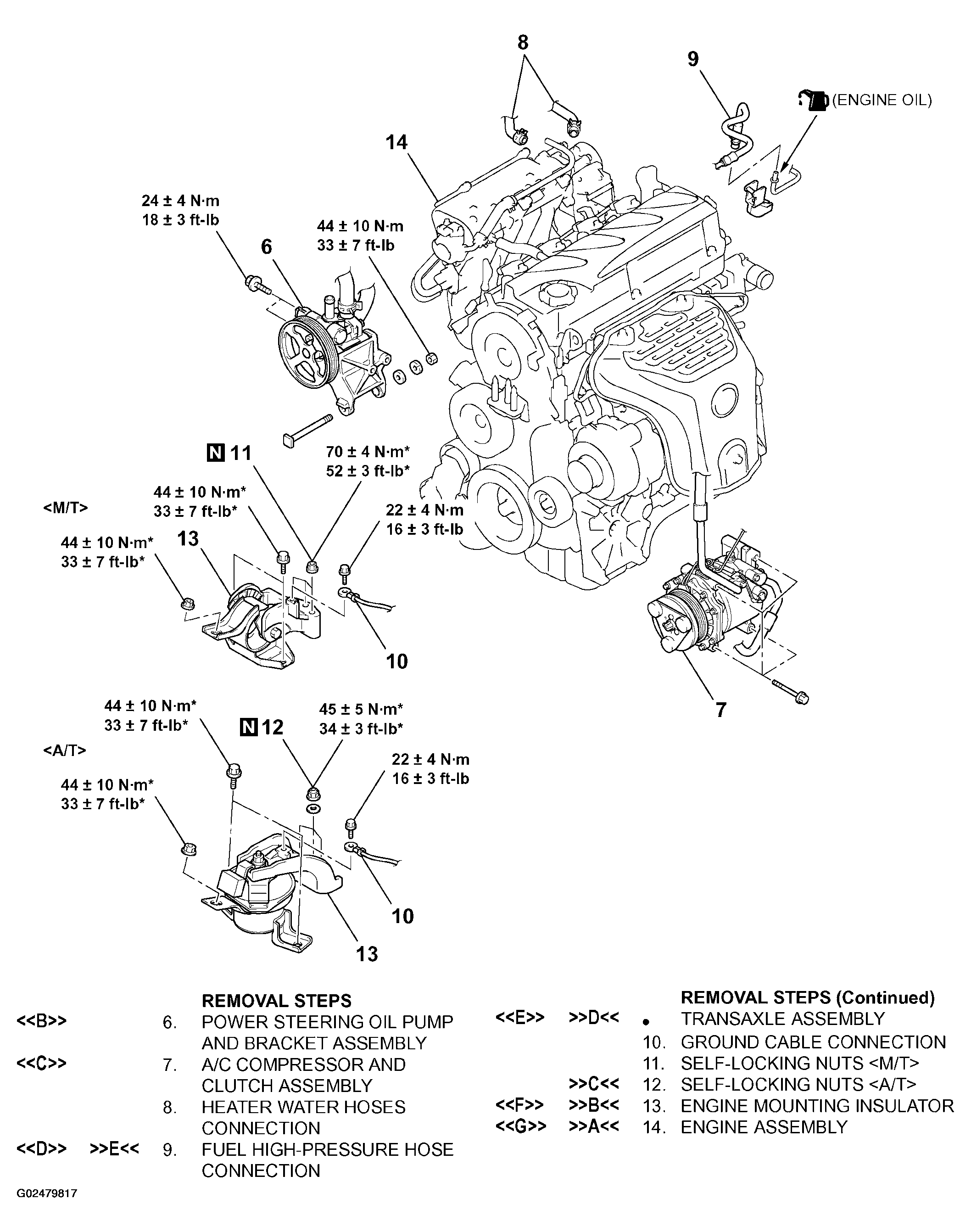

Fig 3: Removing Engine Assembly (2 Of 2)
G02479817Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tools:
