Removal And Installation: Notes

CAUTION: *: Indicates parts which should be temporarily tightened, and then fully tightened with the vehicle on the ground in an unladen condition.

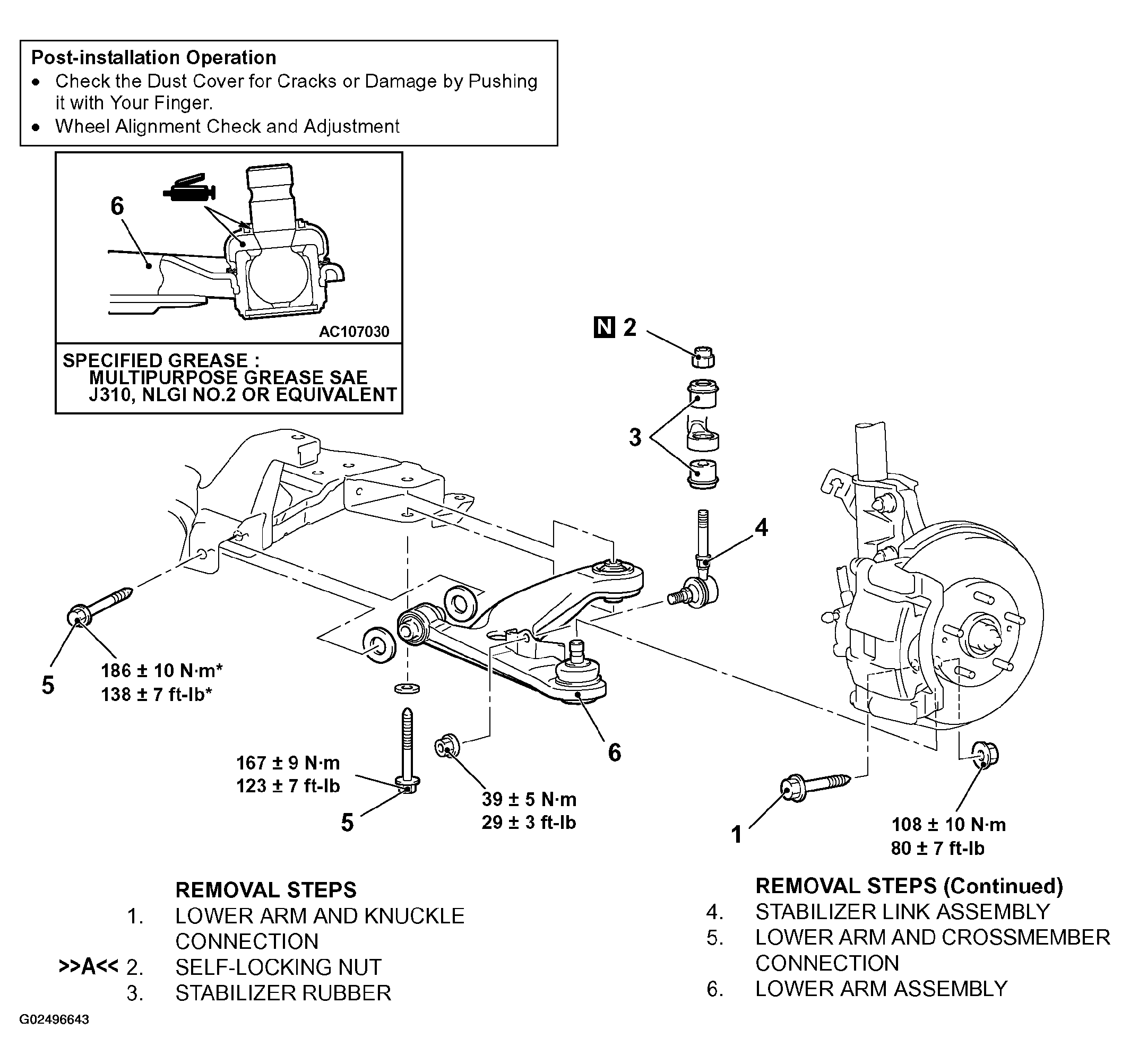

Fig 1: Installing Lower Arm

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
