Removal And Installation: Notes

CAUTION: *: Indicates parts which should be temporarily tightened, and then fully tightened after installing the engine into the vehicle.

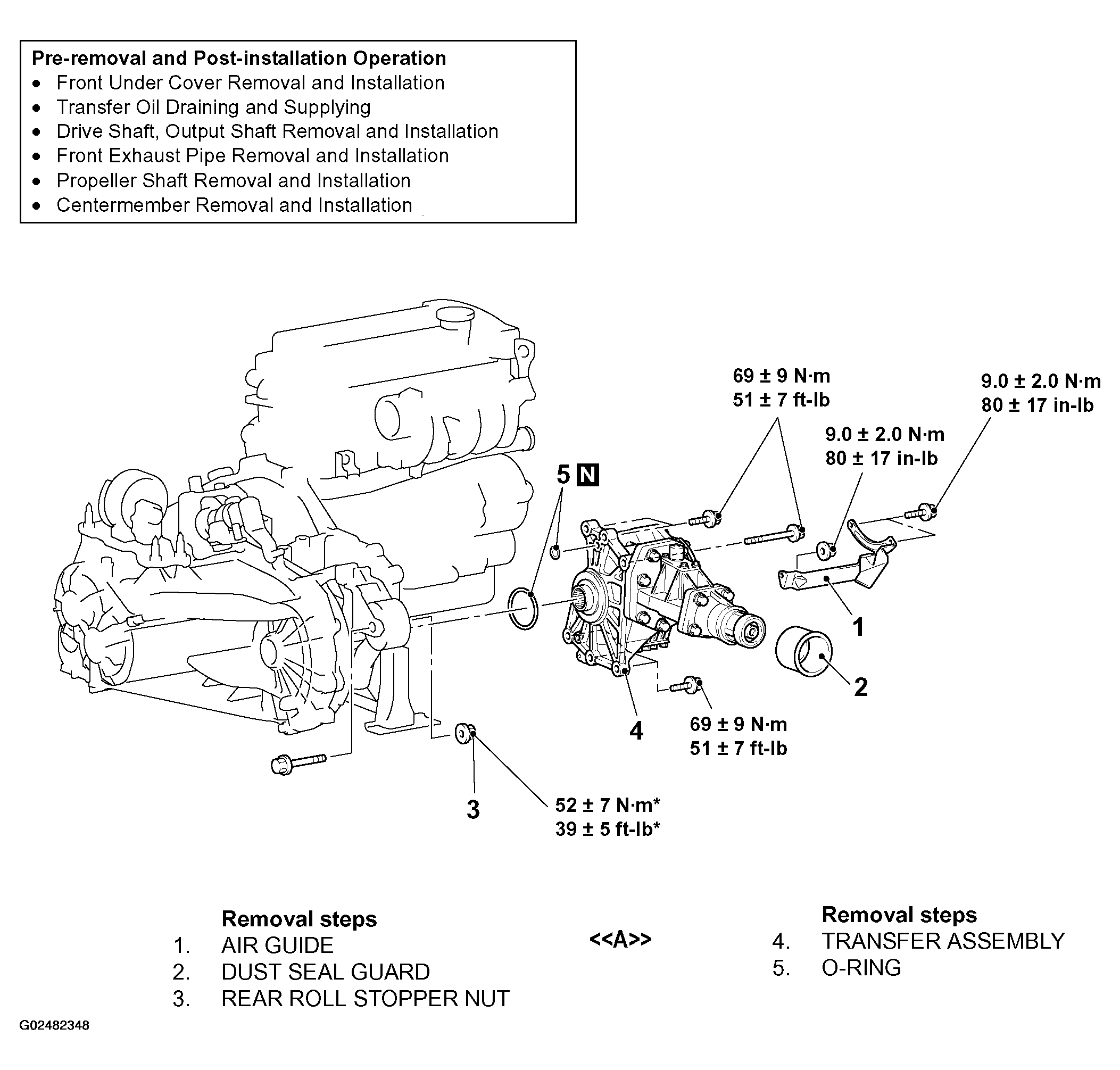

Fig 1: Removing & Installing Transfer Assembly

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
