Disassembly And Assembly: Notes
< W5M42 >

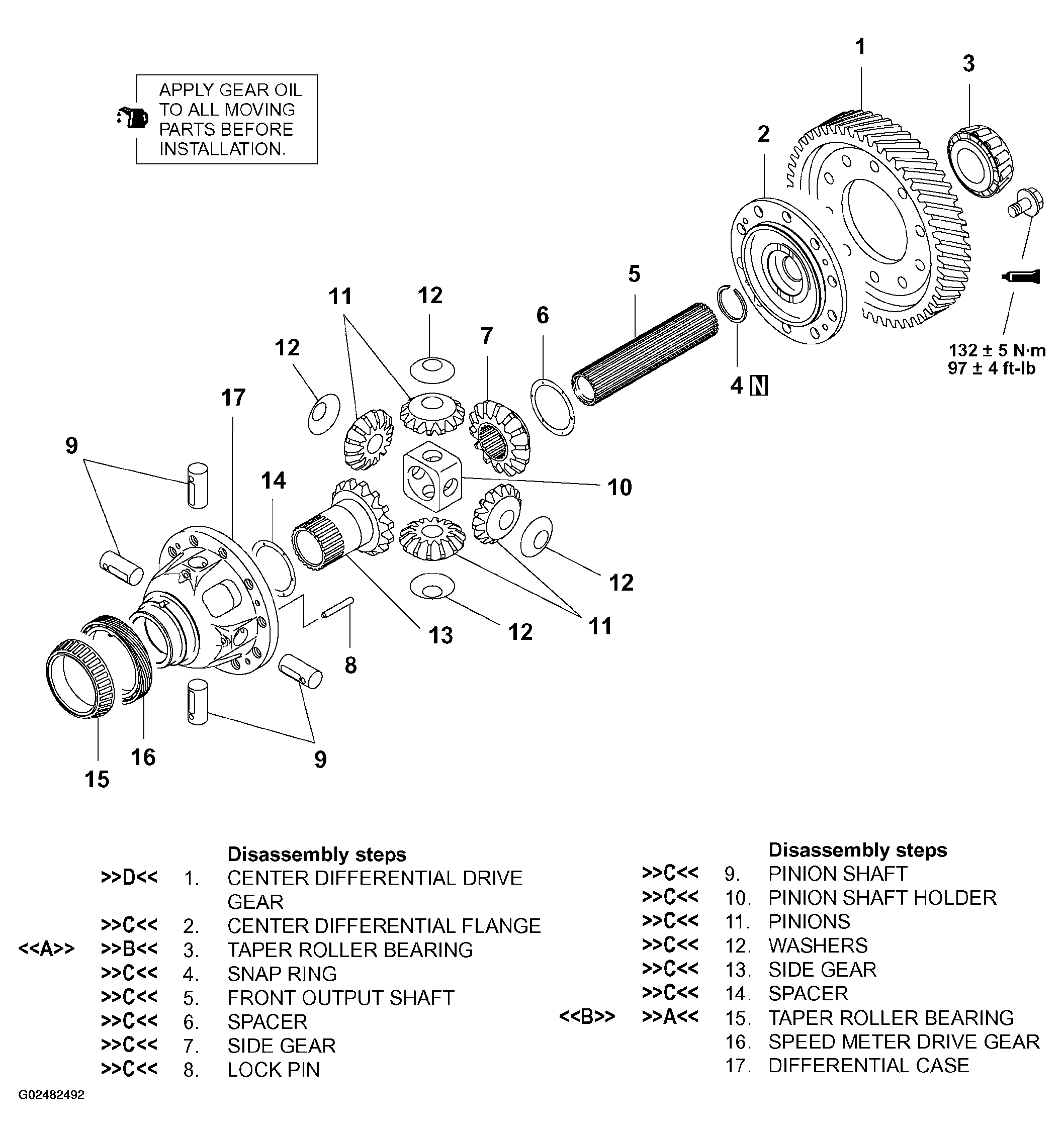

Fig 1: Disassembling/Assembling Center Differential
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Required Special Tools:
MB990930: Installer Adapter
MD998812: Installer Cap
MD998823: Installer Adapter
MD998830: Installer Adapter
MD998917: Bearing Remover
