Disassembly And Assembly: Notes

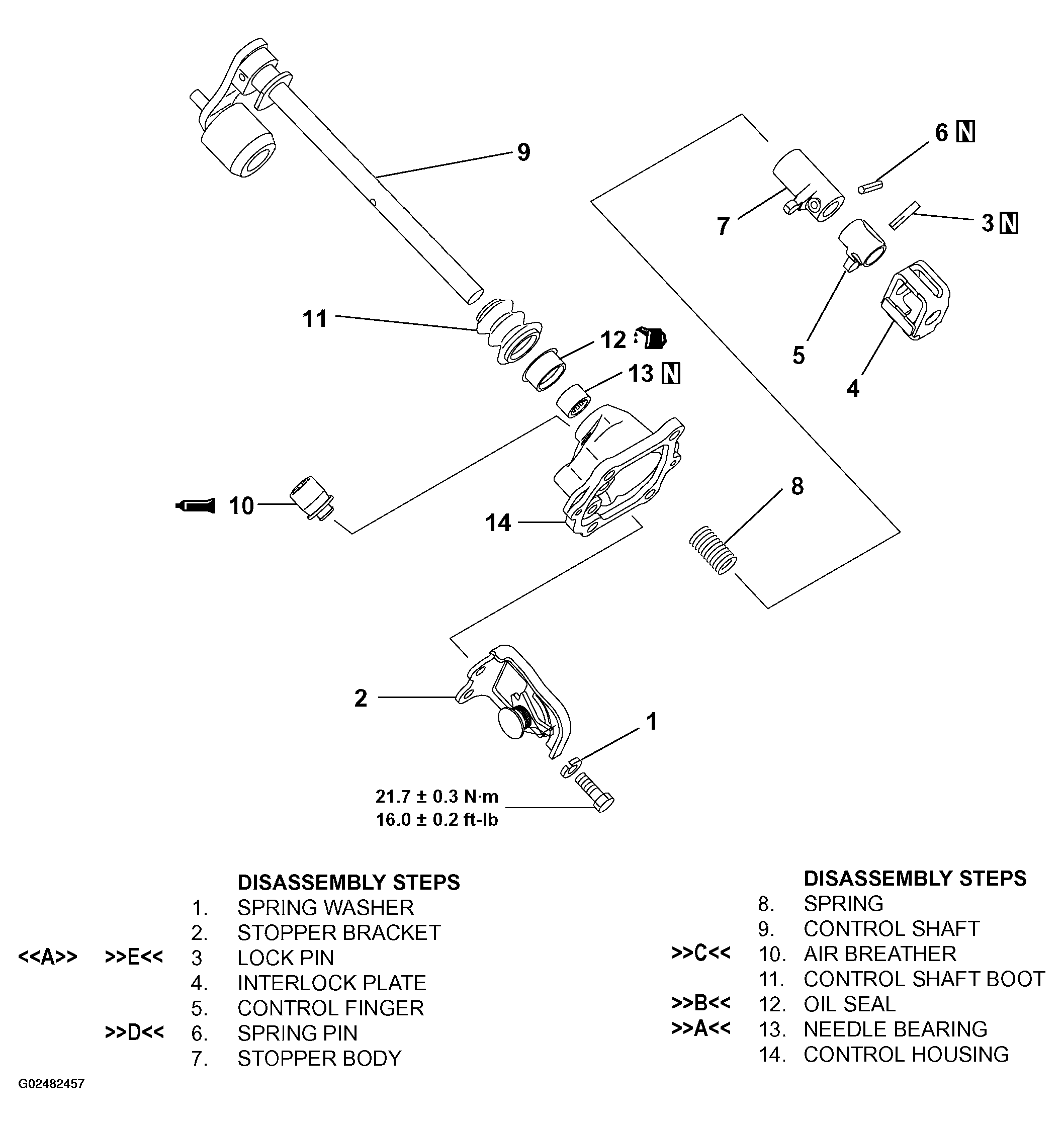

Fig 1: Disassembling/Assembling Control Housing
G02482457Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
